Dahua XVR5116HS User Manual

607

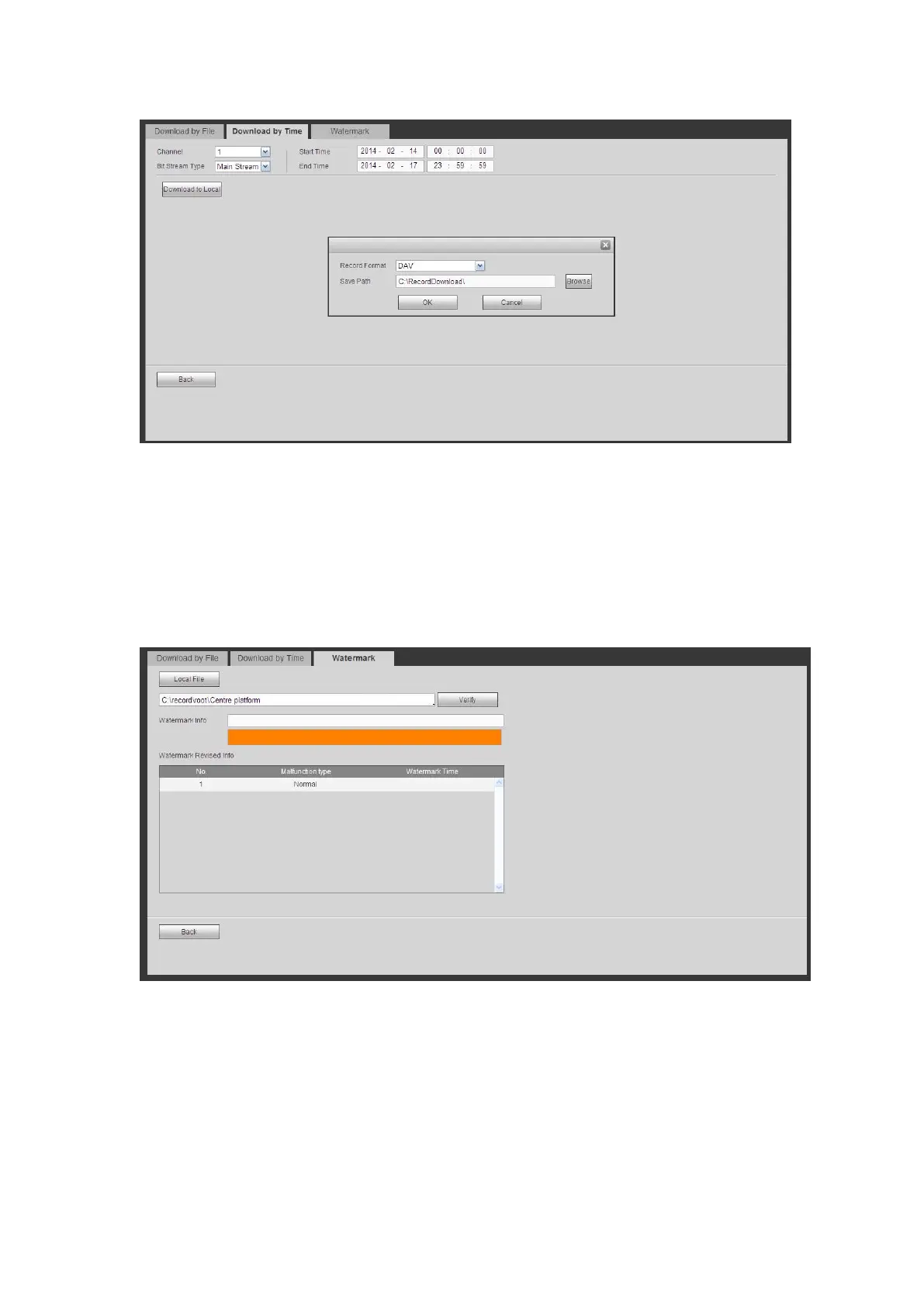

Figure 5- 162
Set record format and saved path, you can click OK to download and view the download
process. After the download operation, you can see corresponding dialog box.
5.12.6.3 Watermark
Watermark interface is shown as In Figure 5- 163. Please select a file and then click Verify
button to see the file has been tampered with or not
Figure 5- 163
5.13 Face Search
On the main interface, click Face search button, you can see an interface shown as
below. See Figure 5- 164.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
