Dahua XVR5116HS User Manual

606
Check the file(s) you want to download and there are two options for you to save the
file(s).

Download to local

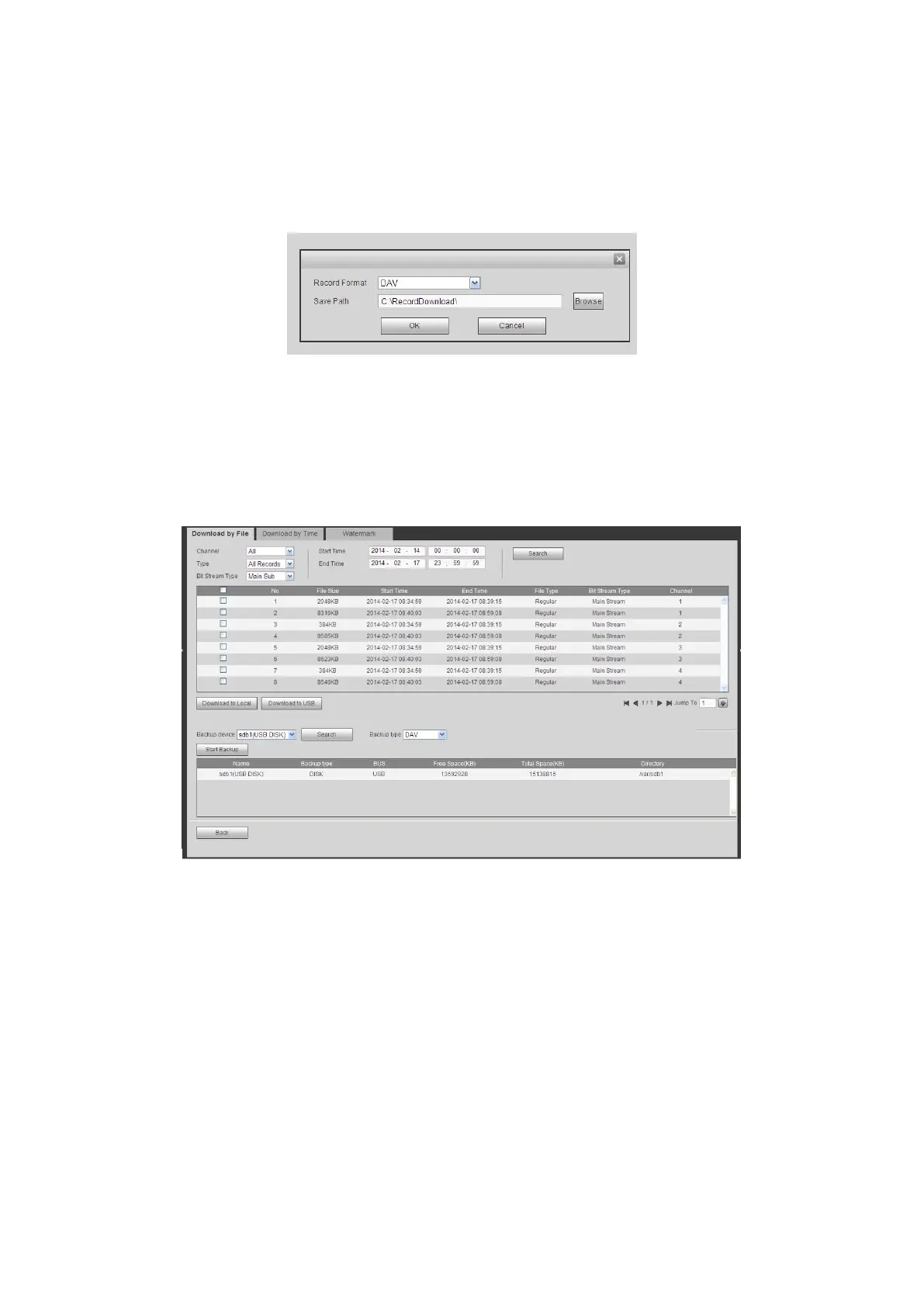

Click Download to local, system pops up the following interface for you to set record
format and saved path. See Figure 5- 160.
Figure 5- 160
You can click OK to download and view the download process. After the download
operation, you can see corresponding dialog box.

Download to USB
Connect the corresponding p peripheral device, and then click Download to USB button,
you can see the following interface. See Figure 5- 161.
Figure 5- 161
Select Backup device and backup type first and then click Start backup button.
After the download operation, you can see corresponding dialogue box.
5.12.6.2 Download by Time
Select channel, bit stream type, start time and end time.
Click Download to Local button, you can see download by time interface is shown as in
Figure 5- 162.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
