Dahua XVR5116HS User Manual

454

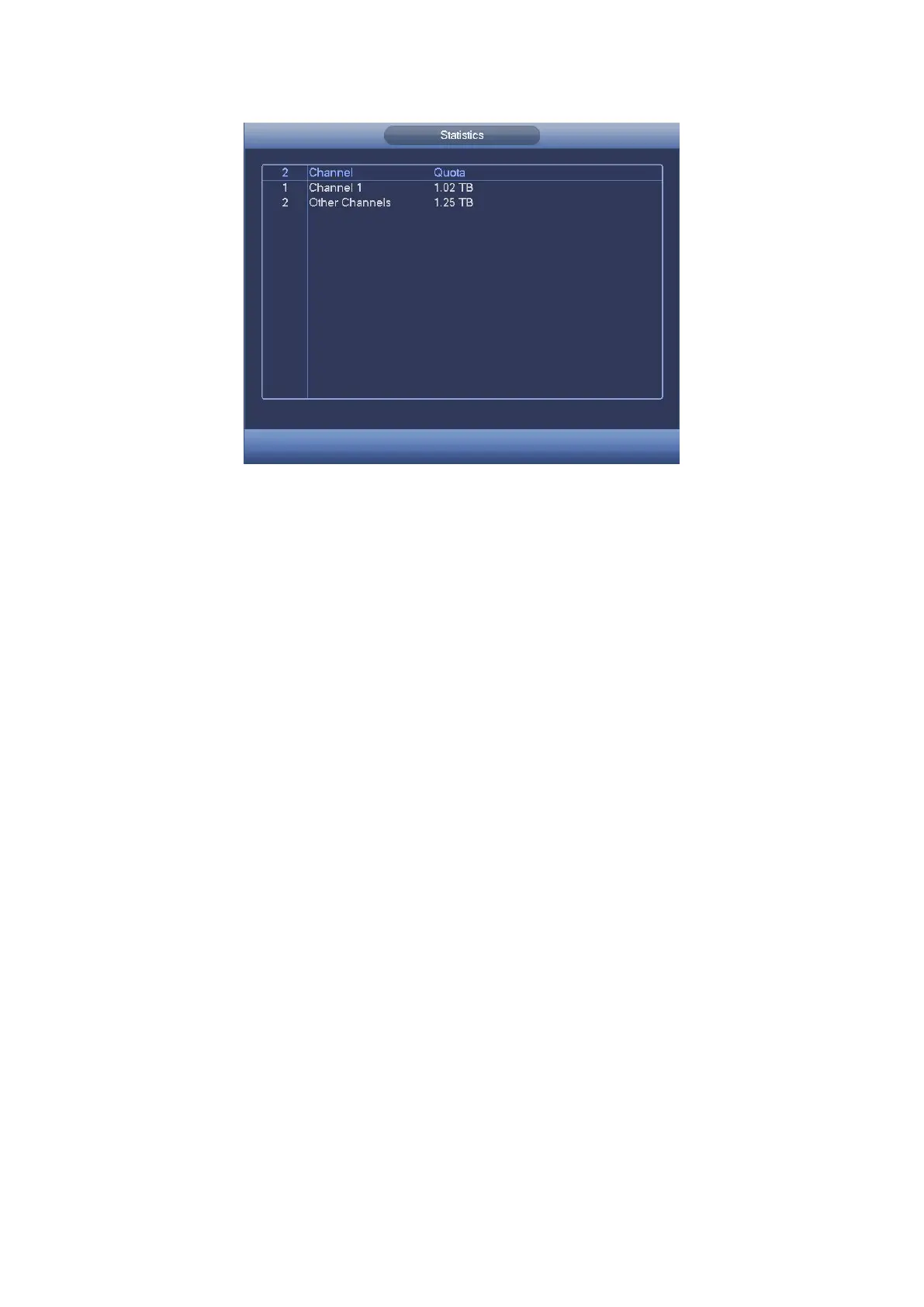

Figure 4- 192
4.9.4.7 HDD Detect
The HDD detect function is to detect HDD current status so that you can clearly
understand the HDD performance and replace the malfunction HDD.
There are two detect types:

Quick detect is to detect via the universal system files. System can quickly complete
the HDD scan. If you want to use this function, please make sure the HDD is in use
now. If the HDD is removed from other device, please make sure the write-data once
was full after it installed on current device.

Global detect adopts Windows mode to scan. It may take a long time and may affect
the HDD that is recording.
4.9.4.7.1Manual Detect
The manual detect interface is shown as below. See Figure 4- 193.
Please select detect type and HDD. Click start detect to begin. You can view the
corresponding detect information. See Figure 4- 194.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
