Dahua XVR5116HS User Manual

226
video and multiple-channel data
to the HDMI port of the display
device.
9
Network port
100M Ethernet port
10
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
11
GND
Ground end
2.2.21 HCVR7104/7108HE-S2 Series

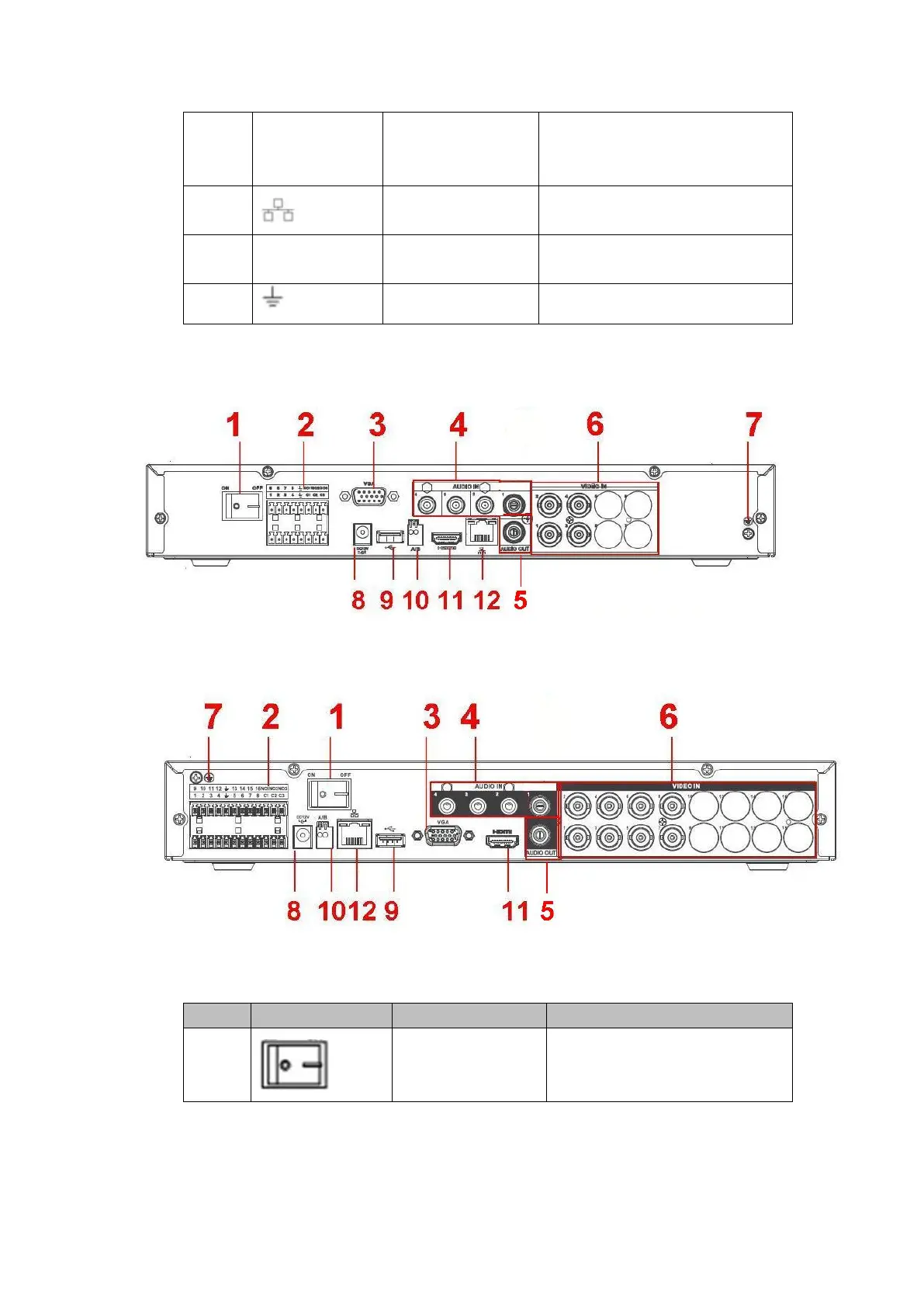

The HCVR7104HE-S2 series rear panel is shown as below. See Figure 2- 53.
Figure 2- 53
The HCVR7108HE-S2 series rear panel is shown as below. See Figure 2- 54.
Figure 2- 54
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off
button
Power on/off button.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
