Dahua XVR5116HS User Manual

225

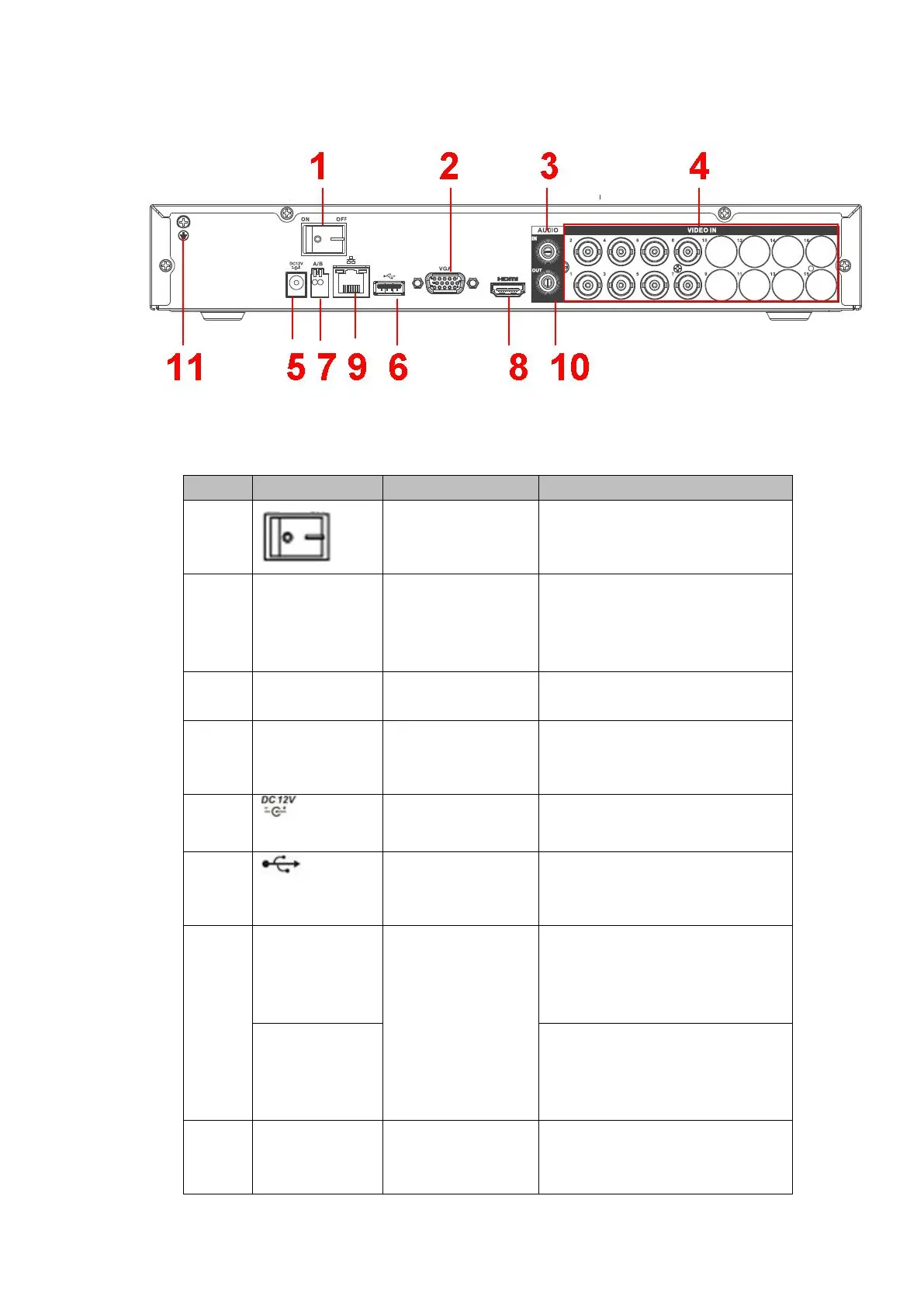

The HCVR7108H-S2 series rear panel is shown as below. See Figure 2- 52.
Figure 2- 52
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off
button
Power on/off button.
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can
connect to the monitor to view
ananlog video output.
3
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
4
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
5
Power input port
Input 12V DC.
6
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
7
A
RS485（RS-485）
communication
port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control
devices such as speed dome
PTZ.
8
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
