Dahua XVR5116HS User Manual

500
Installation modes
Icon
Note
6 de-warp windows+1 panorama
stretching
1 360° panorama view+8 de-warp
windows
（Wall mount）
360°panorama original view
Panorama stretching
1 panorama unfolding view+3 de-warp
windows
1 panorama unfolding view +4 de warp
windows
1 panorama unfolding view +8 de warp
windows

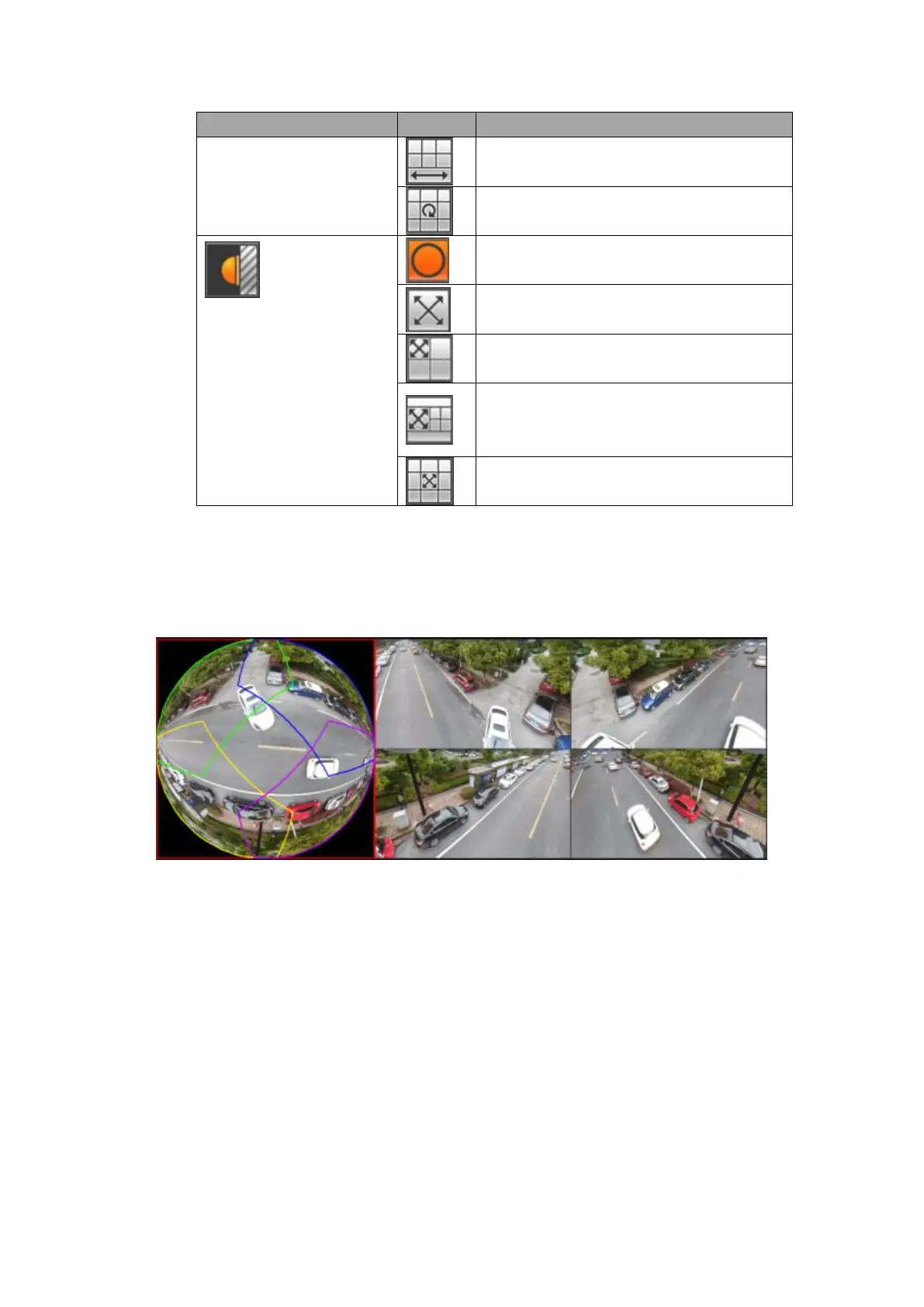

In Figure 5- 17, there are one ceiling mount 360 ° panorama view + four de-warp
windows.
You can adjust the color pane on the left pane or use your mouse to change the
position of the small images on the right pane to realize fish eye de-warp. Please use
mouse to zoom in/out, move, rotate and etc to adjust.
Figure 5- 17
5.7 PTZ
Before PTZ operation, please make sure you have properly set PTZ protocol. (Please
refer to chapter 5.10.5.5).
There are eight direction keys. In the middle of the eight direction keys, there is a 3D
intelligent positioning key.
Click 3D intelligent positioning key, system goes back to the single screen mode. Drag the
mouse in the screen to adjust section size. It can realize PTZ automatically.
Please refer to the following sheet for PTZ setup information.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
