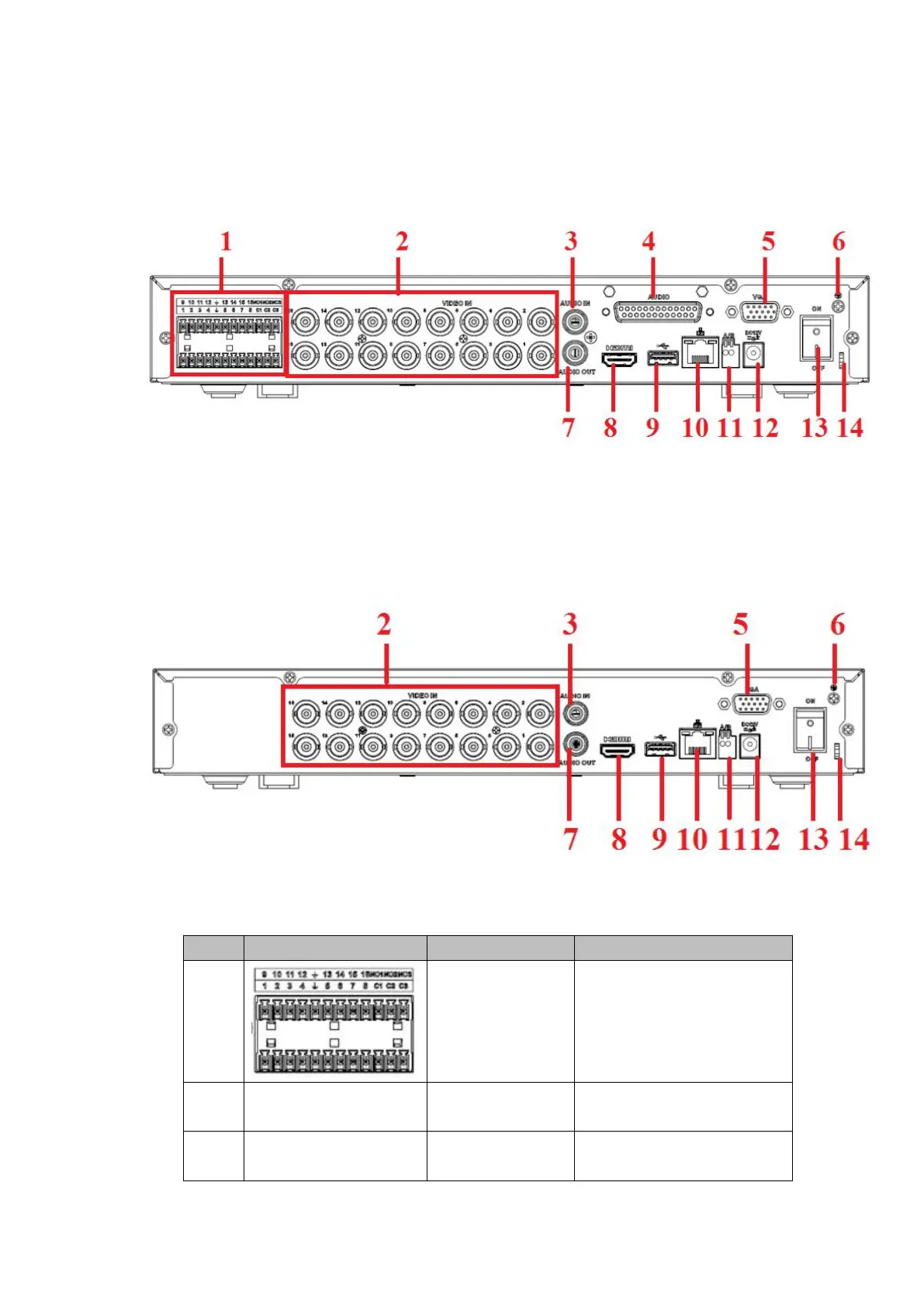

series rear panel is shown as below. See Figure 2- 55.
The following figure is based on HCVR4116HE-S3/HCVR5116HE-S3/HCVR7116HE-S3
/XVR4116HE/XVR5116HE/XVR7116HE series.
Figure 2- 55
The HCVR71XXH-S3/XVR71XXH/XVR51XXH-S2/XVR51XXHE-S2 rear panel is shown
as below. See Figure 2- 56.
The following figure is based on the HCVR7116H-S3/XVR7116H/
XVR51XXH-S2/XVR51XXHE-S2.
Figure 2- 56
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Alarm input/Alarm
output
Input/output alarm signal.
2
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
3
AUDIO IN
Audio input port
Connect to audio input
device such as speaker.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
