Dahua XVR5116HS User Manual

232

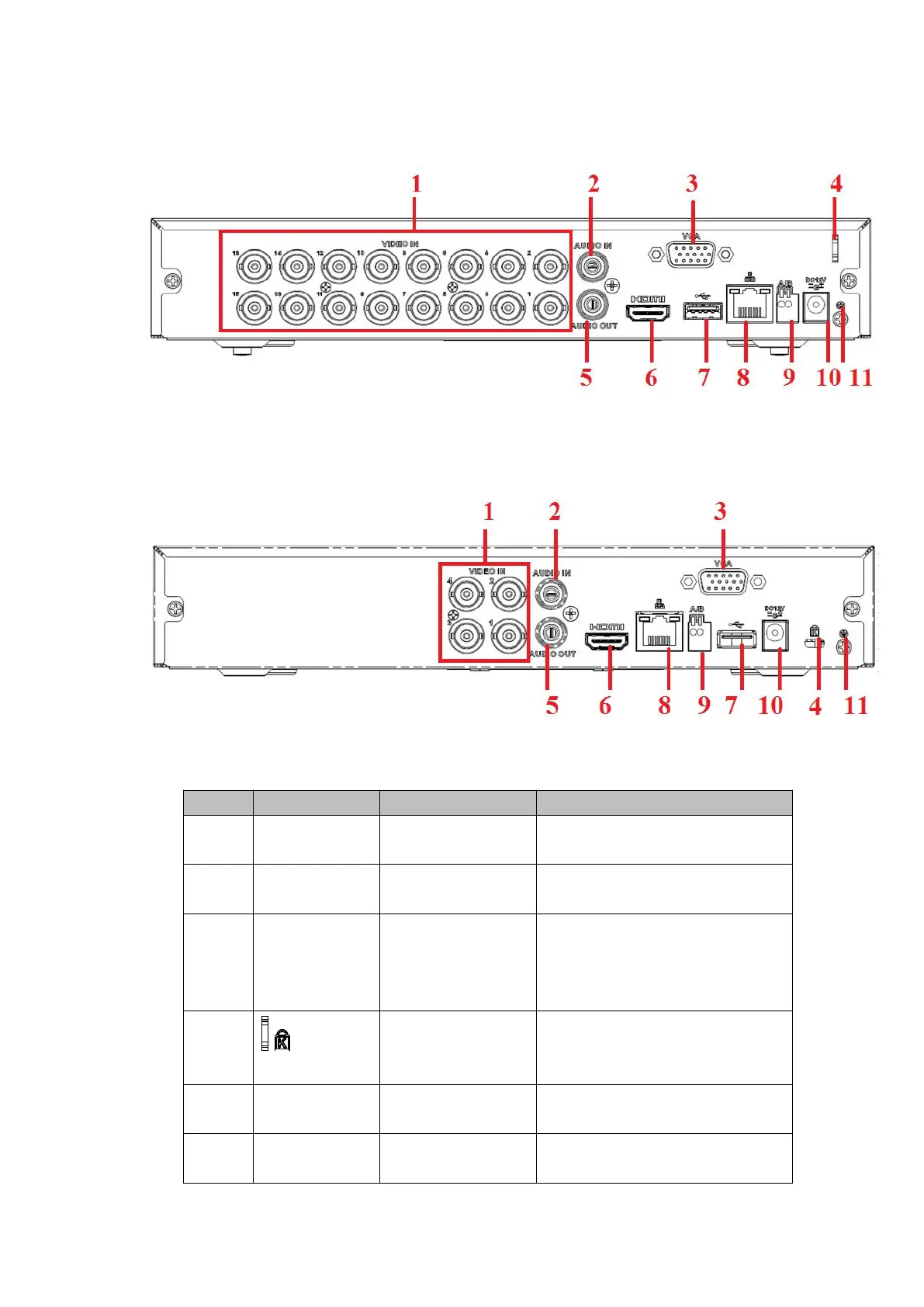

The following figure is based on the HCVR2116HS-S3/HCVR4116HS-S3/5116HS-S3
/XVR2116HS/XVR4116HS/XVR5116HS series product.
Figure 2- 60
The HCVR7104HS-S3/XVR7104HS/XVR41XXHS-S2/XVR51XXHS-S2 series rear panel
is shown as below. See Figure 2- 61.
Figure 2- 61
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view analog
video output.
4
/
Power cable
fastener
Use clamp to secure the power
cable on the device in case there
is any loss.
5
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
6
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
