Dahua XVR5116HS User Manual

301

Startup wizard: After initialize the device, system goes to the End-User License
Agreement (EULA) interface. See Figure 4- 12.Check the box to agree the EULA.
Click Next button to enter startup wizard if it is your first time to login. See Figure
4- 13.

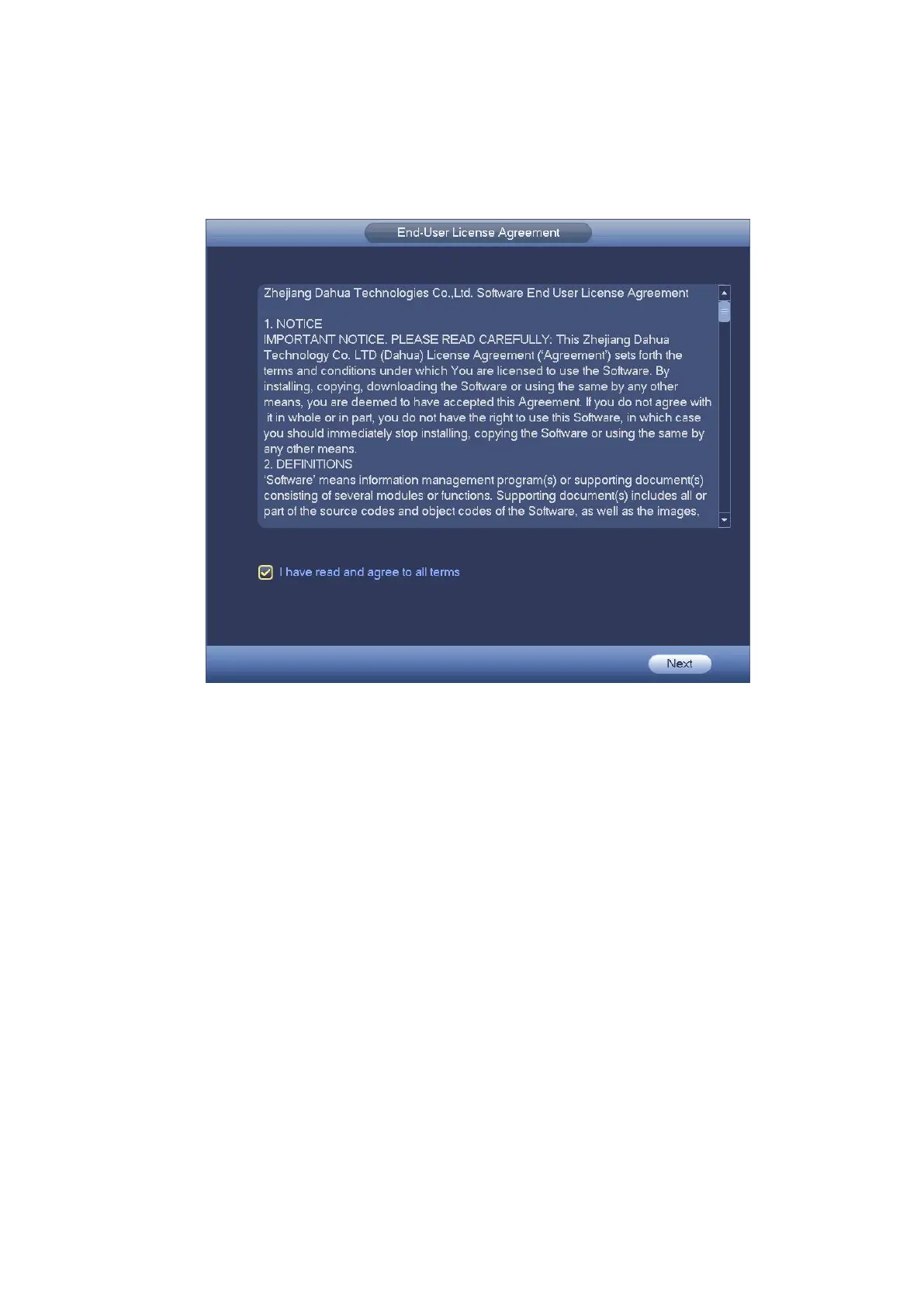

Figure 4- 12

Configuration wizard: On the preview interface, right click mouse and then click
configuration wizard. The setting items are the same as the startup wizard.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
