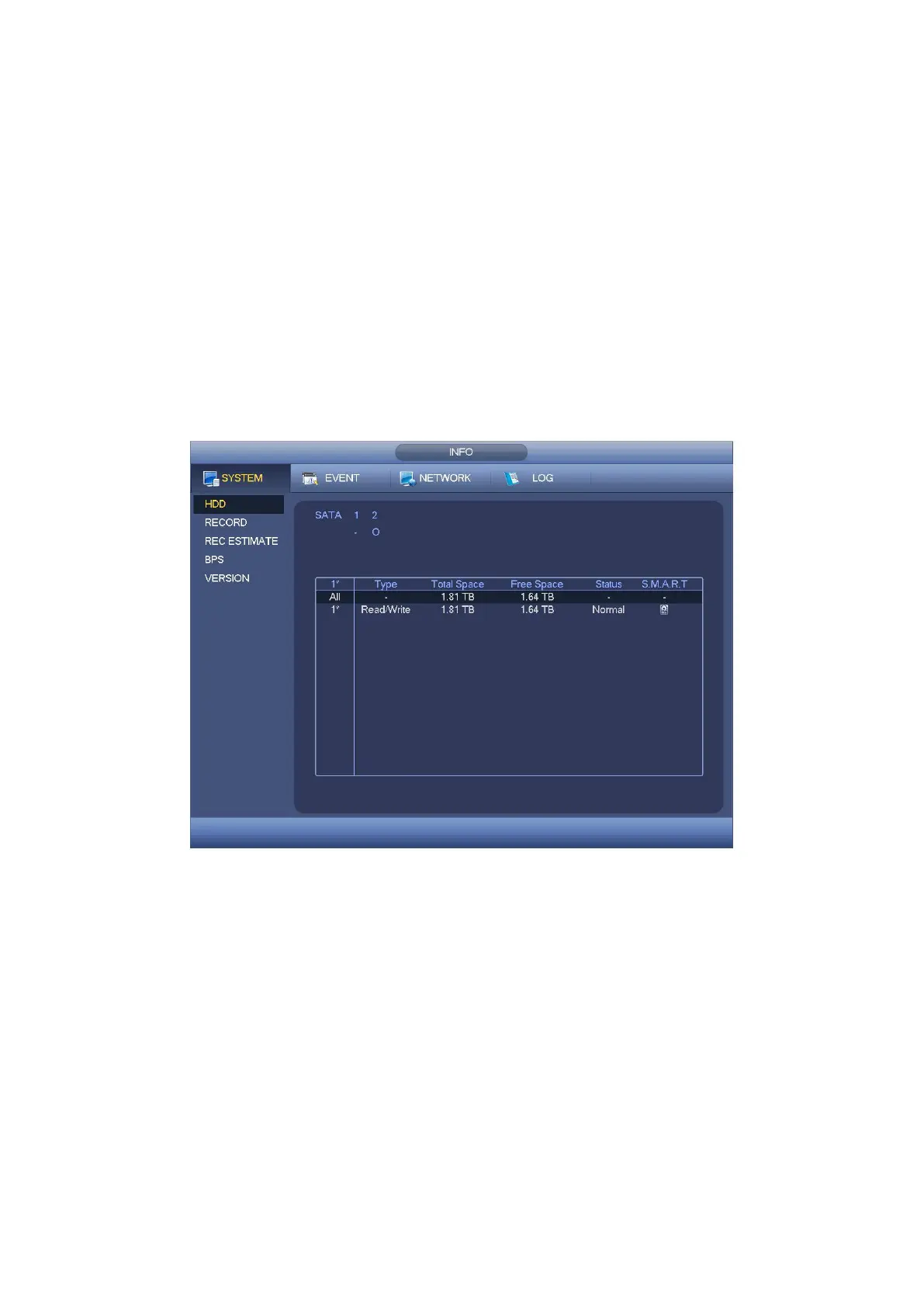

Figure 4- 84.

SATA: 1-2 here means system max supports 2 HDDS. ○ means current HDD is
normal. X means there is error. - means there is no HDD. If disk is damaged, system
shows as “?”. Please remove the broken hard disk before you add a new one.
 SN: You can view the HDD amount the device connected to. ﹡ means the second
HDD is current working HDD.

Type: The corresponding HDD properties.
 Total space: The HDD total capacity.
 Free space: The HDD free capacity.

Status: HDD can work properly or not.
 SMART: Display HDD information. See Figure 4- 85.
Figure 4- 84
Double click one HDD information; you can see the HDD SMART information. . See
Figure 4- 85.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
