Dahua XVR5116HS User Manual

415
Figure 4- 144
Step 2 Select a channel from the dropdown list.
Step 3 Click Add button to add a rule and then select a rule type from the dropdown list.
Step 4 Set corresponding parameters.
Step 5 Check the box to enable current rule.
Step 6 Click Apply or Save to complete setup.
4.9.3.3 Tripwire (Optional)
System generates an alarm once there is any object crossing the tripwire in the specified
direction.

The tripwire supports customized setup. It can be a straight line or a curve.

Support one-direction or dual-direction detection.

Support several tripwires at the same scene suitable for complicated environment.

Support object size filter.
Step 1 From main menu->Setting->Event->IVS, click Add button to add a rule and select
the rule type as tripwire.

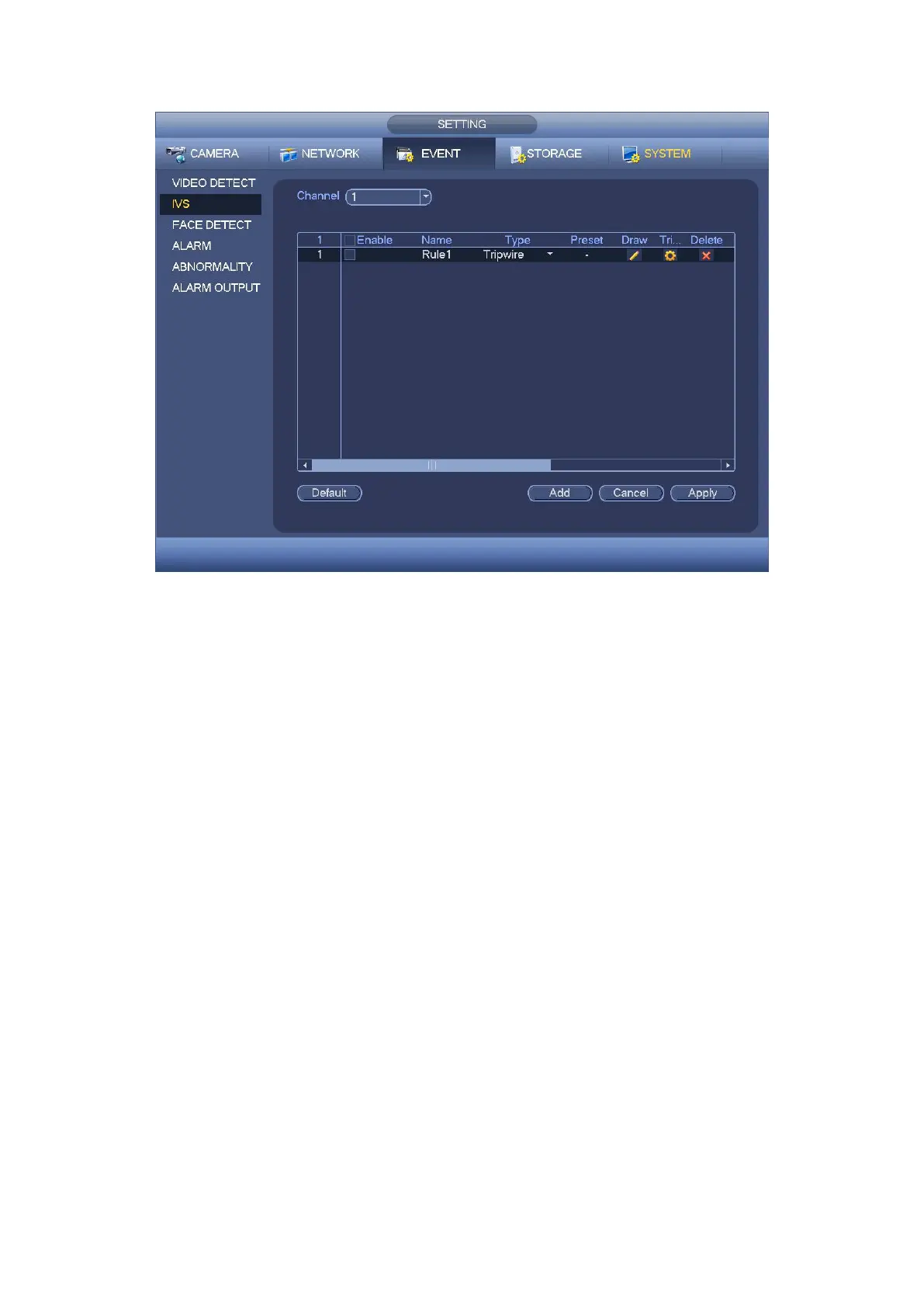

The interface is shown as below. See Figure 4- 145.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
