record video.
Note
 If current channel is not recording, current setup gets activated when the channel
begin recording the next time.

If current channel is recording now, current setup will get activated right away, the
current file will be packet and form a file, then system begins recording as you have
just set.
After all the setups please click save button. .
Playback or search in the redundant disk.
There are two ways for you to playback or search in the redundant disk.

Set redundant disk(s) as read-only disk or read-write disk (Main
menu->Setting->Storage->HDD Manager)). System needs to reboot to get setup
activated. Now you can search or playback file in redundant disk.

Dismantle the disk and play it in another PC.
4.9.4.1.2Snapshot
4.9.4.1.2.1 Schedule Snapshot

On the preview interface, right click mouse and then select Manual->Record, or in the
main menu, from Setting->Storage->Record, check the box to enable snapshot
function of corresponding channels. See Figure 4- 176.

In main menu, from Setting->Camera->Encode->Snapshot interface, here you can
input snapshot mode as regular, size, quality and frequency. See Figure 4- 177.

In main menu, from Setting->Camera->Encode->Schedule interface, please enable
snapshot function. See interface on the right of Figure 4- 178.
Please refer to the following figure for detailed information.

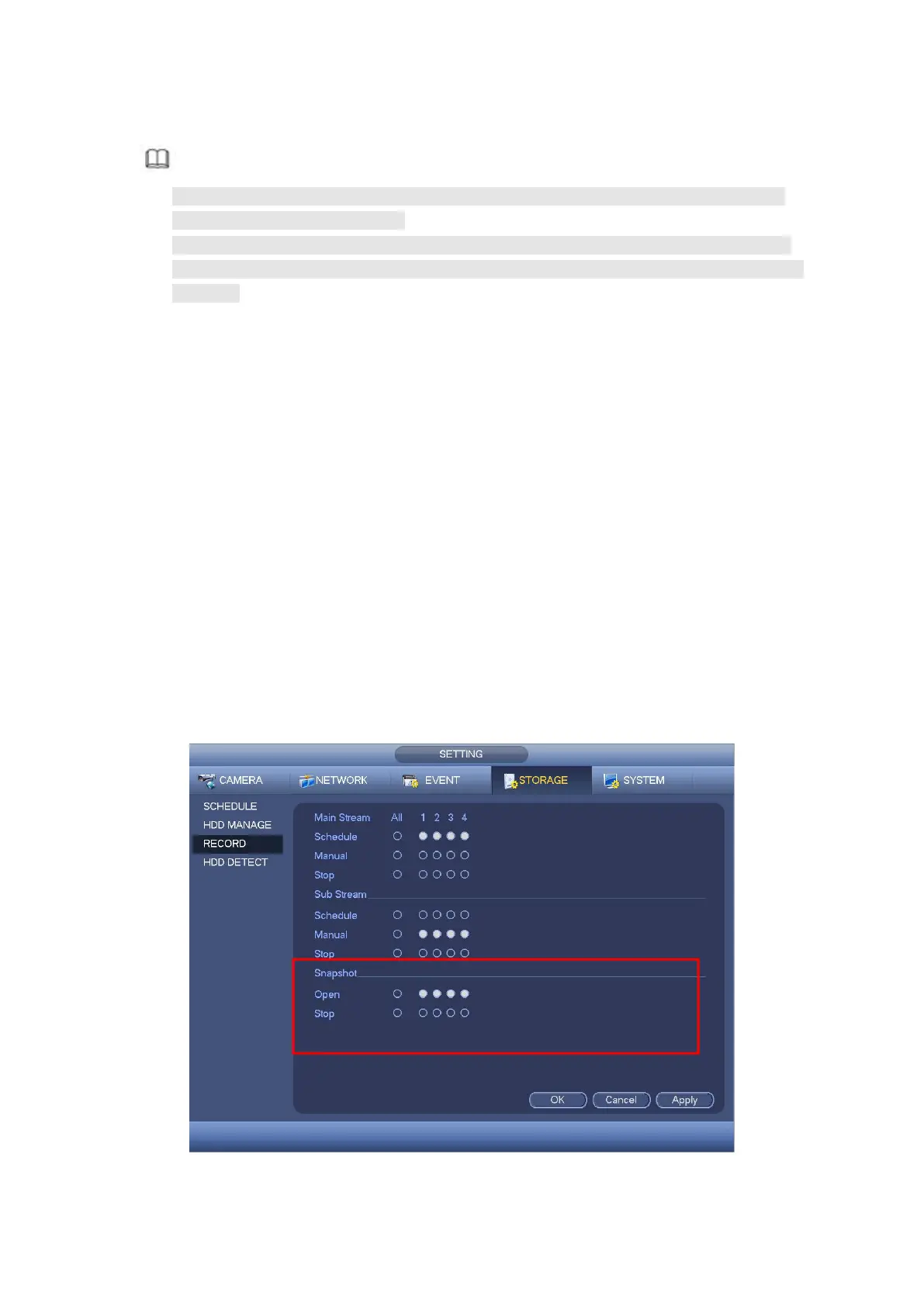

Figure 4- 176

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
