Dahua XVR5116HS User Manual

467

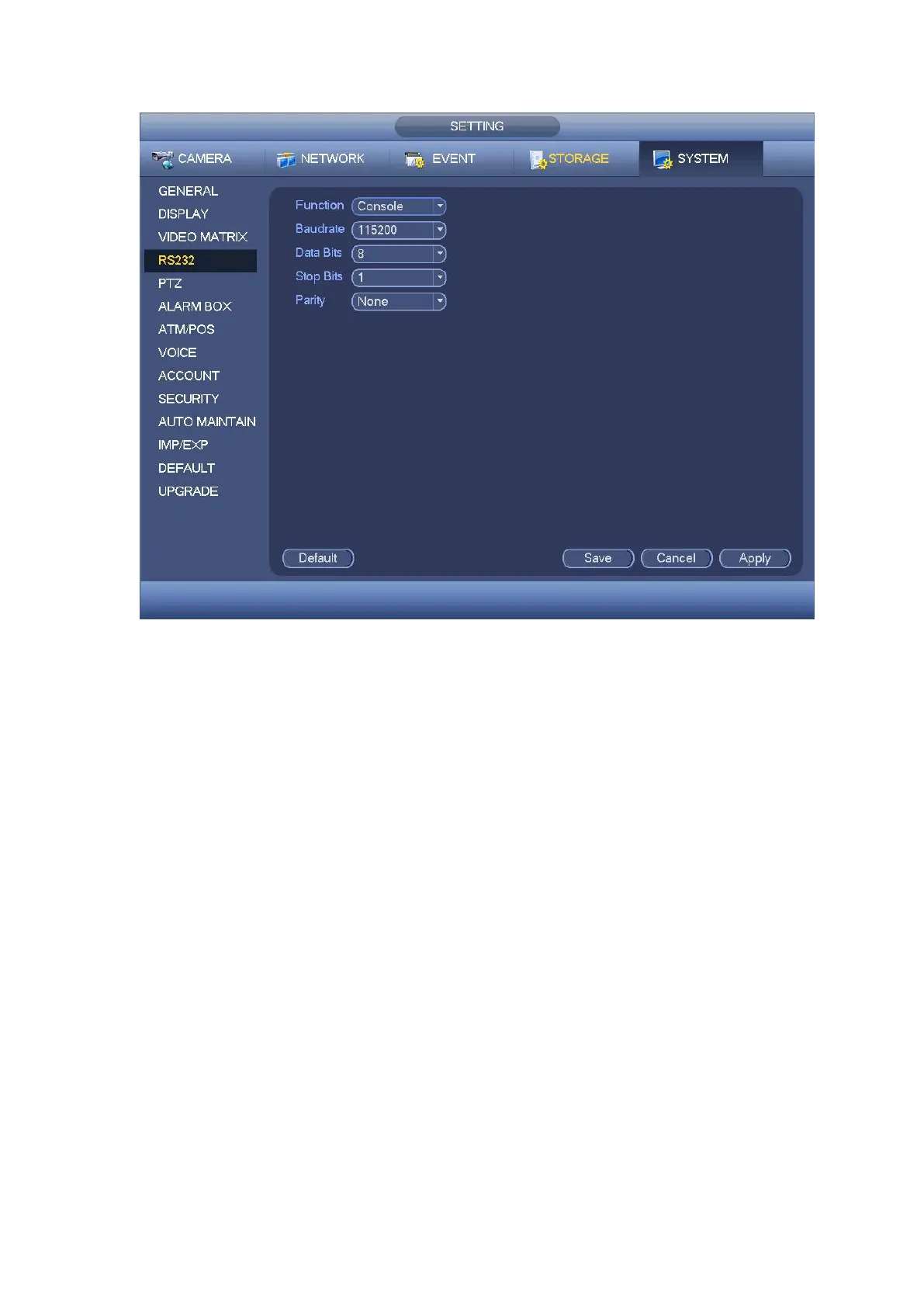

Figure 4- 208
4.9.5.5 PTZ
The pan/tilt/zoom setup includes the following items. Please select channel first. See
Figure 4- 209.

PTZ type: There are two options: local/remote. Please select remote if you are
connecting to the network PTZ.

Control mode: You can select control mode from the dropdown list. There are two
options: Serial/HDCVI. For HDCVI series product, please select HDCVI. The control
signal is sent to the PTZ via the coaxial cable. For the serial mode, the control signal
is sent to the PTZ via the RS485 port.

Protocol: If the control mode is HDCVI, please select HDCVI protocol. The default
setup is HDCVI3.0

Address: input corresponding PTZ address.

Baud rate: Select baud rate.

Data bit: Select data bit.

Stop bit: Select stop bit.

Parity: There are three choices: none/odd/even.
Click Apply or Save to complete setup.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
