Dahua XVR5116HS User Manual

561

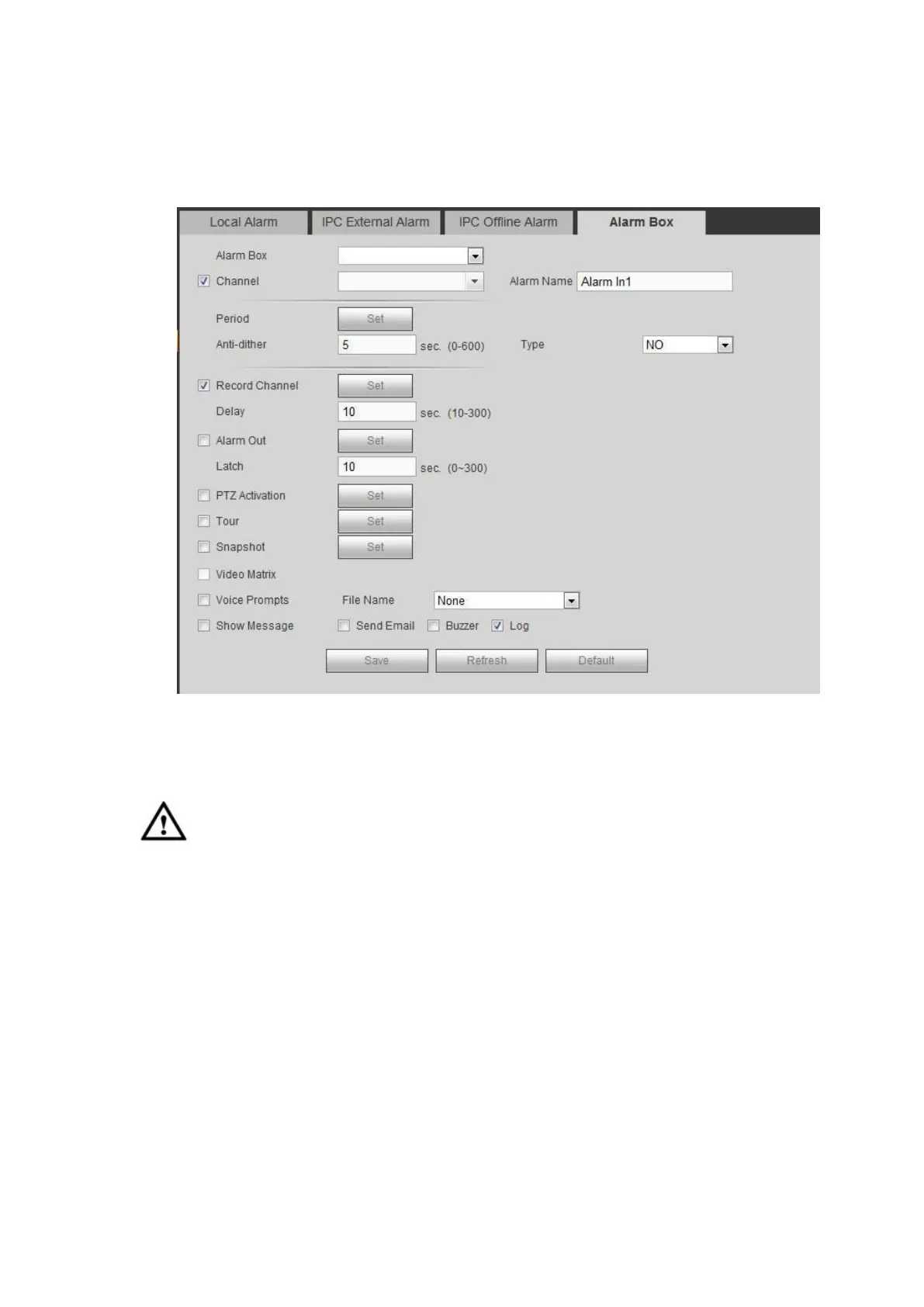

5.10.3.3.5 Alarm Box
It refers to alarm signal from the connected peripheral alarm box. See Figure 5- 92.
For setup information, please refer to chapter 5.10.3.3.1.
Figure 5- 92
5.10.3.4 Face Detect (Optional)
The face detection function is optional. The intelligence function and the
human face detection can not be valid at the same time!
When camera detects human face, system can draw a rectangle around the human face
and generate an alarm.
From main menu->Setup->Event->Face detect, the interface is shown as in Figure 5- 93.

Enable face boost: Check the box here, system can enhance the human face display
pane.

Sensitivity: System supports 6 levels. The sixth level has the highest sensitivity.
For detailed setups, please refer to chapter 5.10.3.1.1.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
