Dahua XVR5116HS User Manual

570

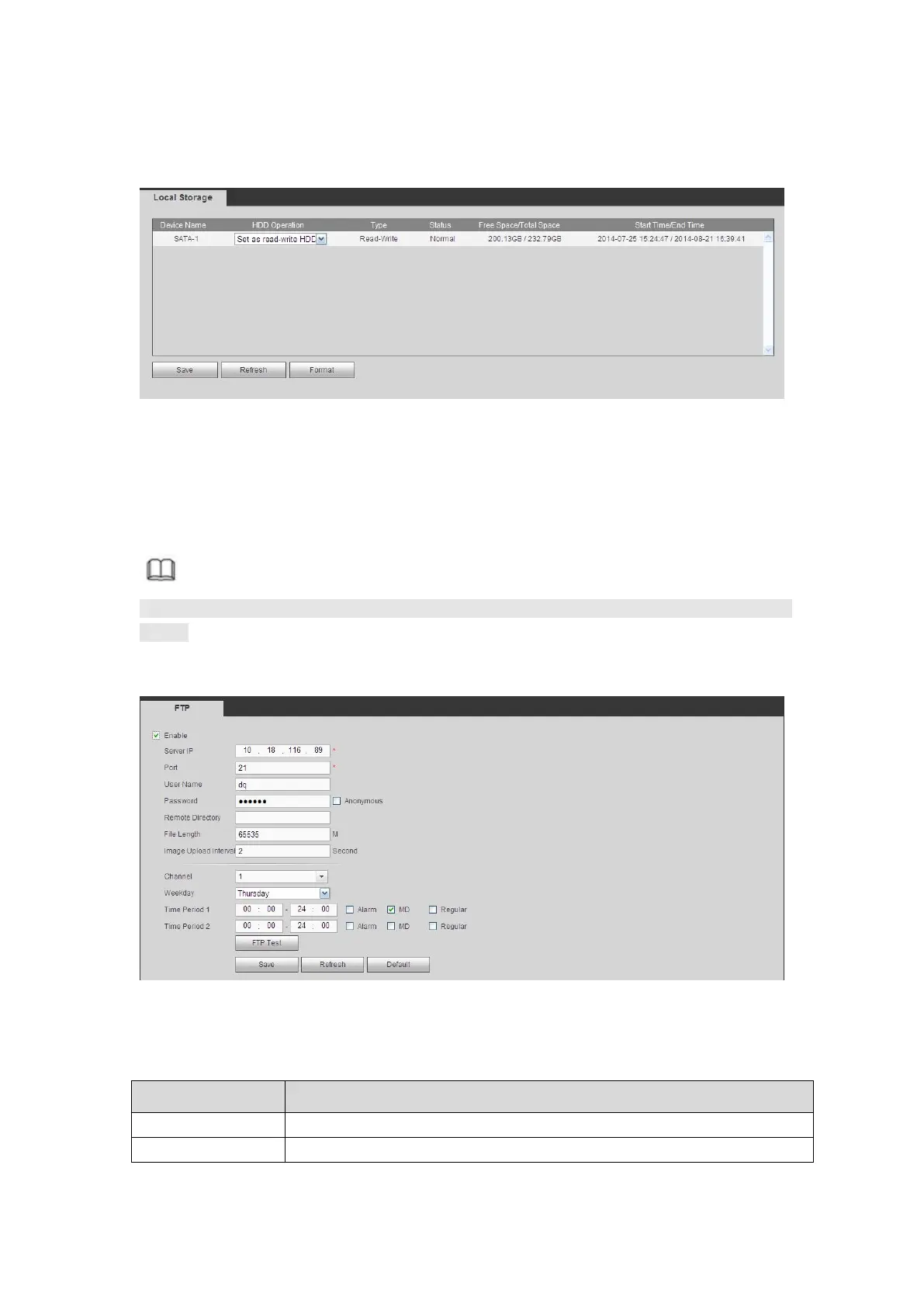

The interface is shown as in Figure 5- 105. Here you can see HDD information. You can
also operate the read-only, read-write, redundancy (if there are more than on HDD) and
format operation.
Figure 5- 105
5.10.4.4 FTP
It is to backup record file or image to the FTP to storage or view.
Before the operation, please download or purchase the FTP service tool and install on the
PC.
Note
For the FTP user, please set FTP folder write right, otherwise system cannot upload the
image.
Step 1 From main window->Setup->Storage->FTP.
Enter FTP interface. See Figure 5- 106.
Figure 5- 106
Step 2 Check the box to enable FTP function.
Step 3 Set parameters.
Parameter
Function
Host IP
The host IP you have installed the FTP server.
Port
The default setup is 21.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
