Dahua XVR5116HS User Manual

573
Step 1 From main menu->Setup->Storage->Advanced->HDD.
Enter HDD interface. See Figure 5- 108.

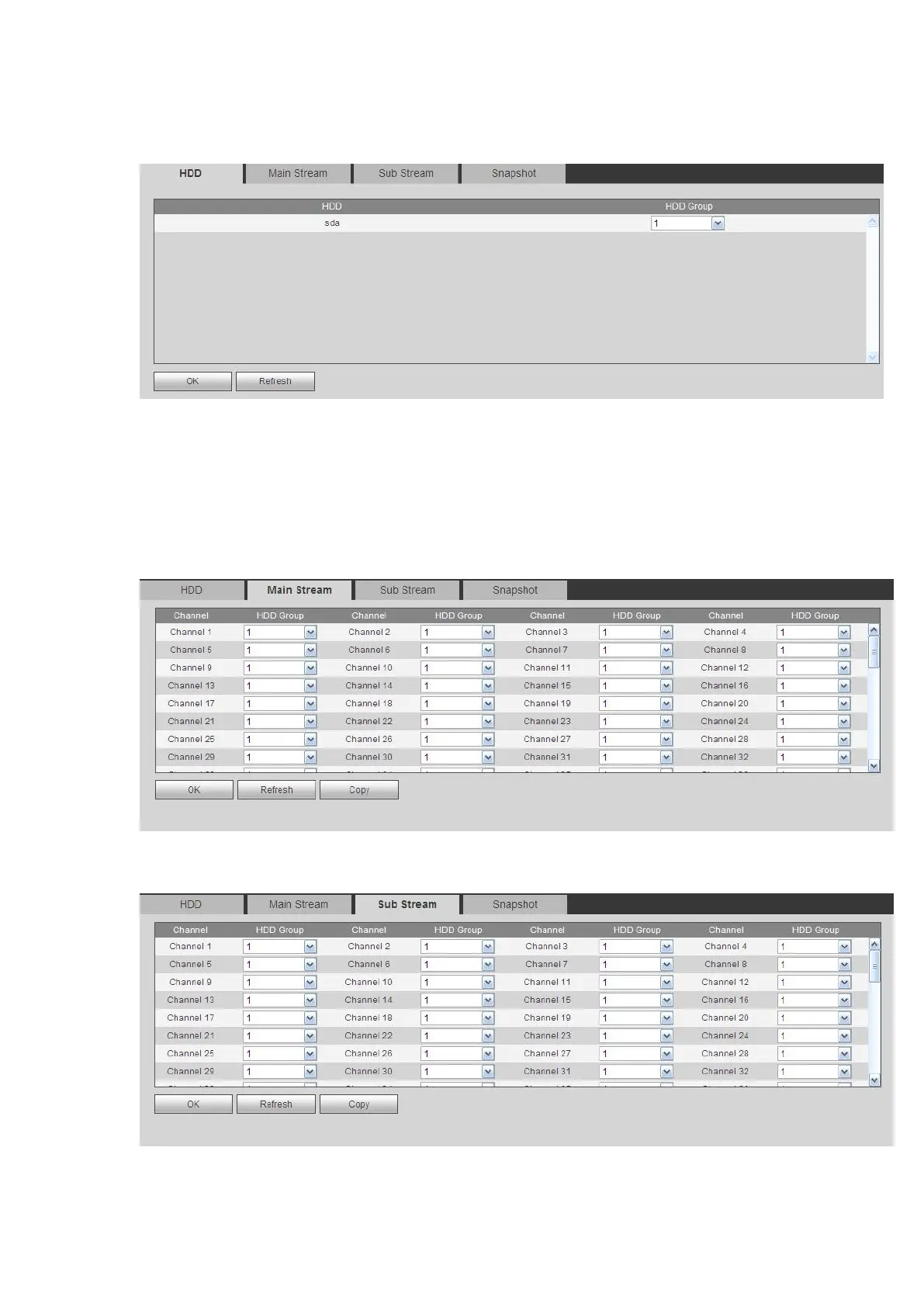

Figure 5- 108
Step 2 Set a HDD group for current HDD.
Click OK. Device begins reboot.
Step 3 After set HDD group, click main stream/sub stream/snapshot tab to save main
stream, sub stream, snapshot image to different HDD group. See Figure 5- 109,
Figure 5- 110, Figure 5- 111
Figure 5- 109
Figure 5- 110

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
