Daktronics VFC-3000 User Manual

– 17 –
6 Diagnostics Menu
The Diagnostics menu enables viewing and/or activation of test patterns, pixel
diagnostics, and other diagnostics. Refer to Figure 24.
Test Patterns
The Test Patterns menu enables a series of patterns to be displayed. Figure 25 illustrates
the rst page of the Test Patterns menu. Press the up and down arrow keys to navigate
through all options in the Test Patterns menu.
To run a test pattern, press the number of the pattern to run. The controller returns to the
Diagnostics menu, and the test pattern running on the display is listed next to the Test
Patterns option; refer to Figure 26.

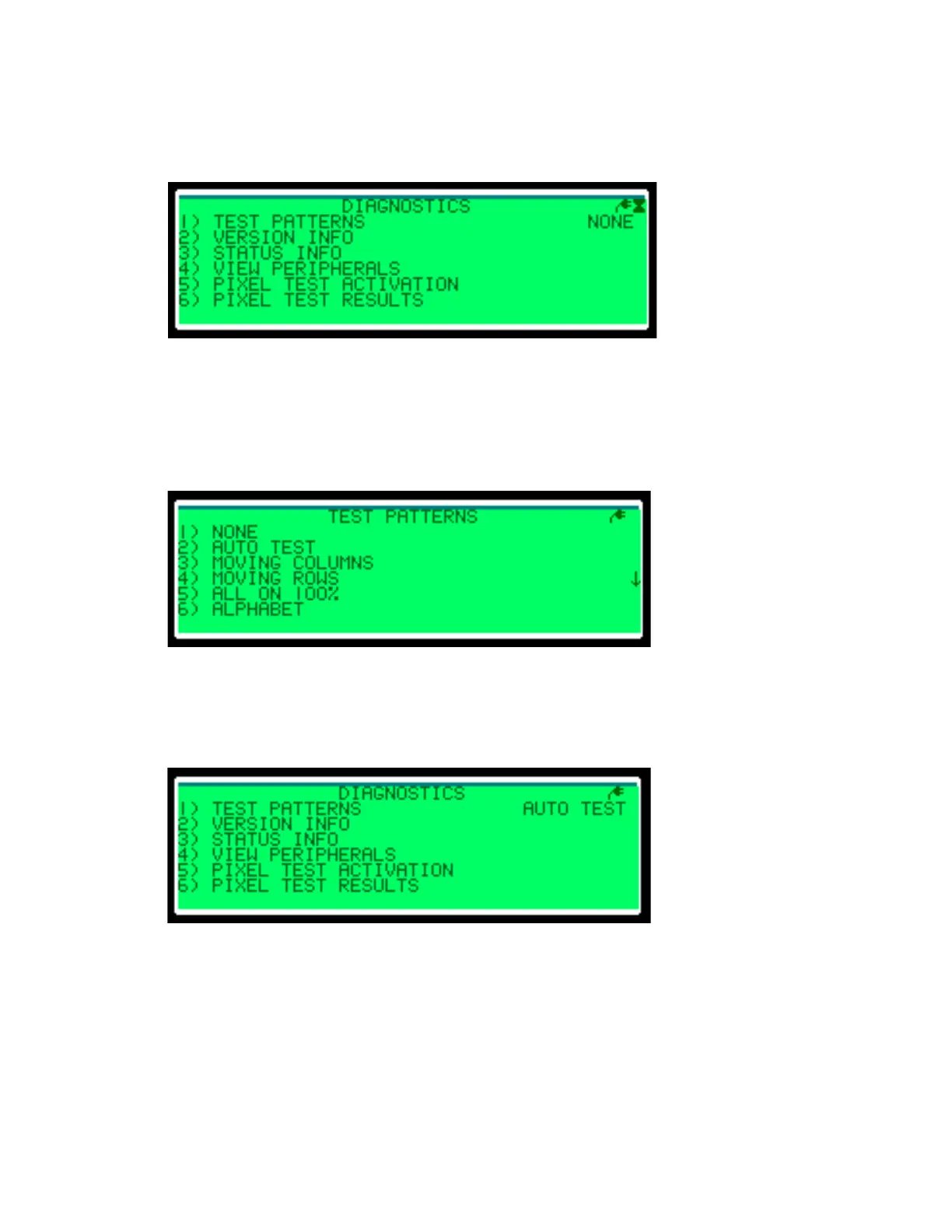

Figure 24: Diagnostics
Figure 25: Test Patterns
Figure 26: Diagnostics menu while running a test pattern
