Daktronics VFC-3000 User Manual

– 22 –
Real-Time Pixel Results Bitmap
The Real-Time Pixel Results Bitmap displays the current pixel failures. Refer to Figure 37. This
function shows any pixels or modules that fail while an All On test pattern is running.
Real-Time Pixel Results List
The Real-Time Pixel Test Results List shows the coordinates of each broken pixel while an
All On test pattern is running, and whether the pixel is stuck on or off. Figure 38 illustrates a
real-time pixel results list with no errors; a real-time pixel results list with errors looks similar to
Figure 35. If necessary, press the up and down arrow keys to view all results.
Clear Real-Time Pixel Results
The Clear Real-Time Pixel Test Results menu deletes all information saved from the last All
On test pattern; refer to Figure 39. Press 1 to delete all pixel results, or press 2 to cancel
the deletion.

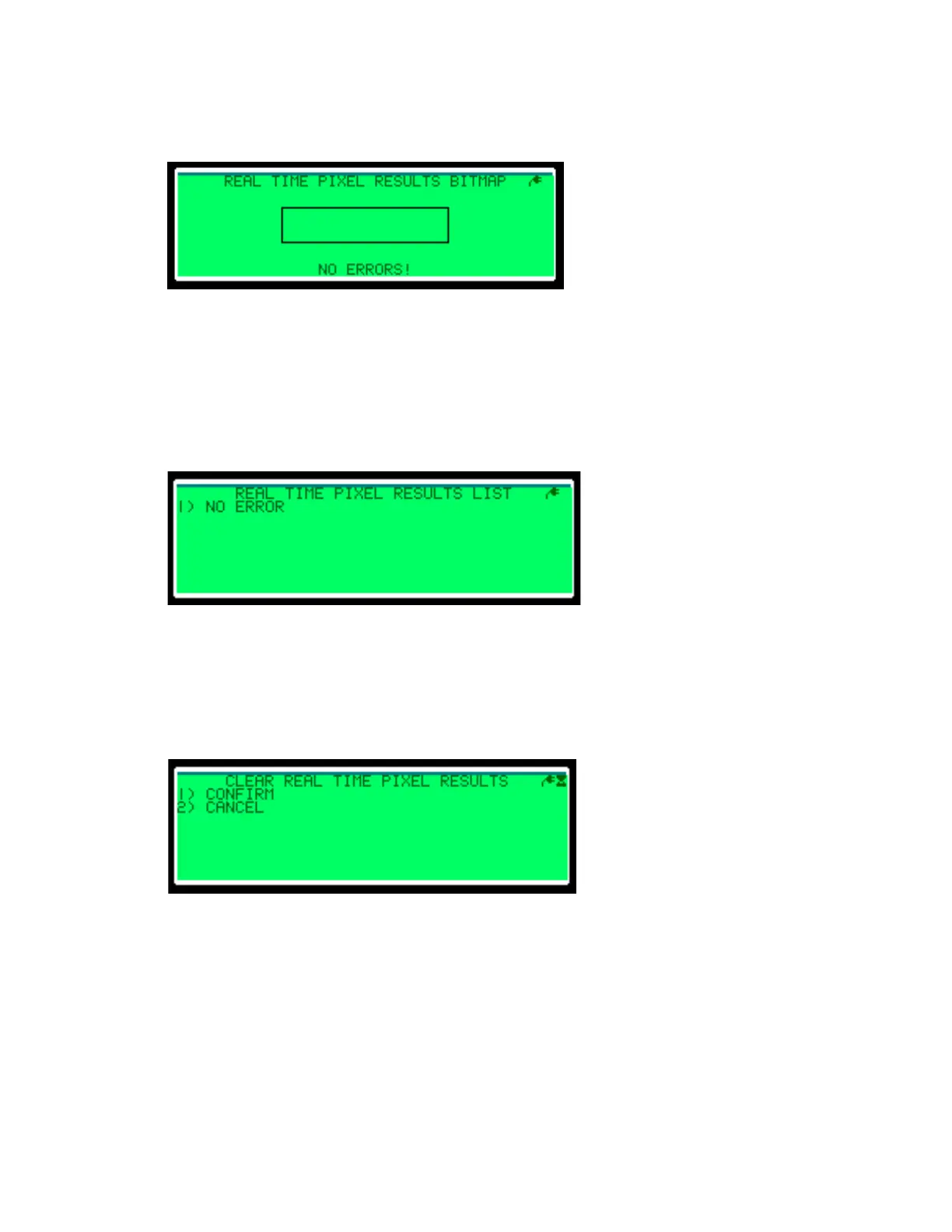

Figure 37: Real-Time PIxel Results Bitmap
Figure 38: Real-Time PIxel Results List
Figure 39: Clear Real-Time Pixel Results
