• Generation:
• Size: Module size is determined by the number of pixels on each module.
• Pixelpitchconguration: The pixel pitch is the center-to-center measurement
between pixels.
Note: Entering an incorrect module type may cause module errors to appear on
the controller.
Display Type
The Display Type may be full matrix, line matrix, or character matrix; refer to Figure 56.

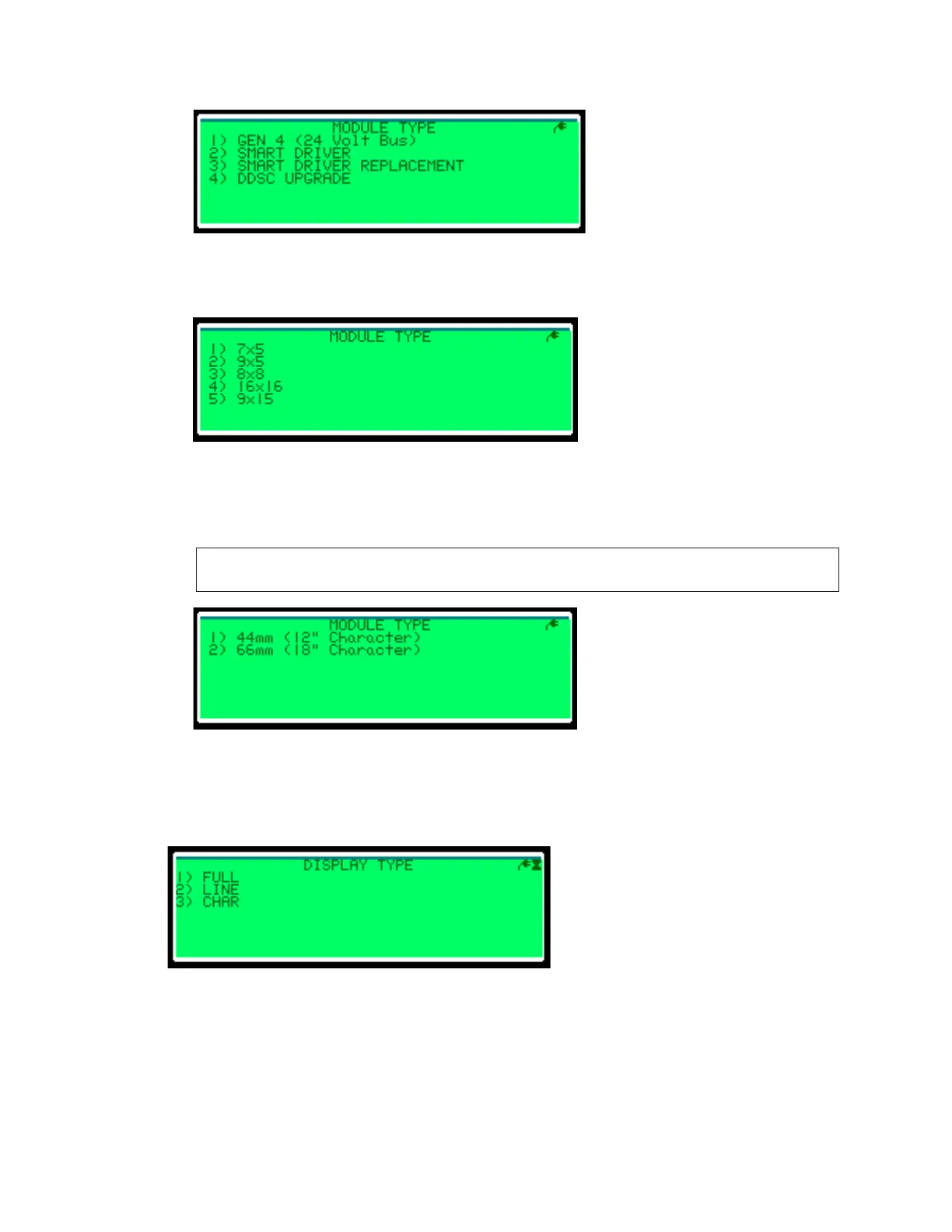

Figure 53: Module Type—Generation
Figure 54: Module Type—Size
Figure 55: Module Type—Pixel Pitch
Figure 56: Display Type
