dallmeier DF4910HD-DN - Surface Mount Variants (SM)

DF4910HD-DN | DDF4910HDV-DN-IM/-SM
www.dallmeier.com 102

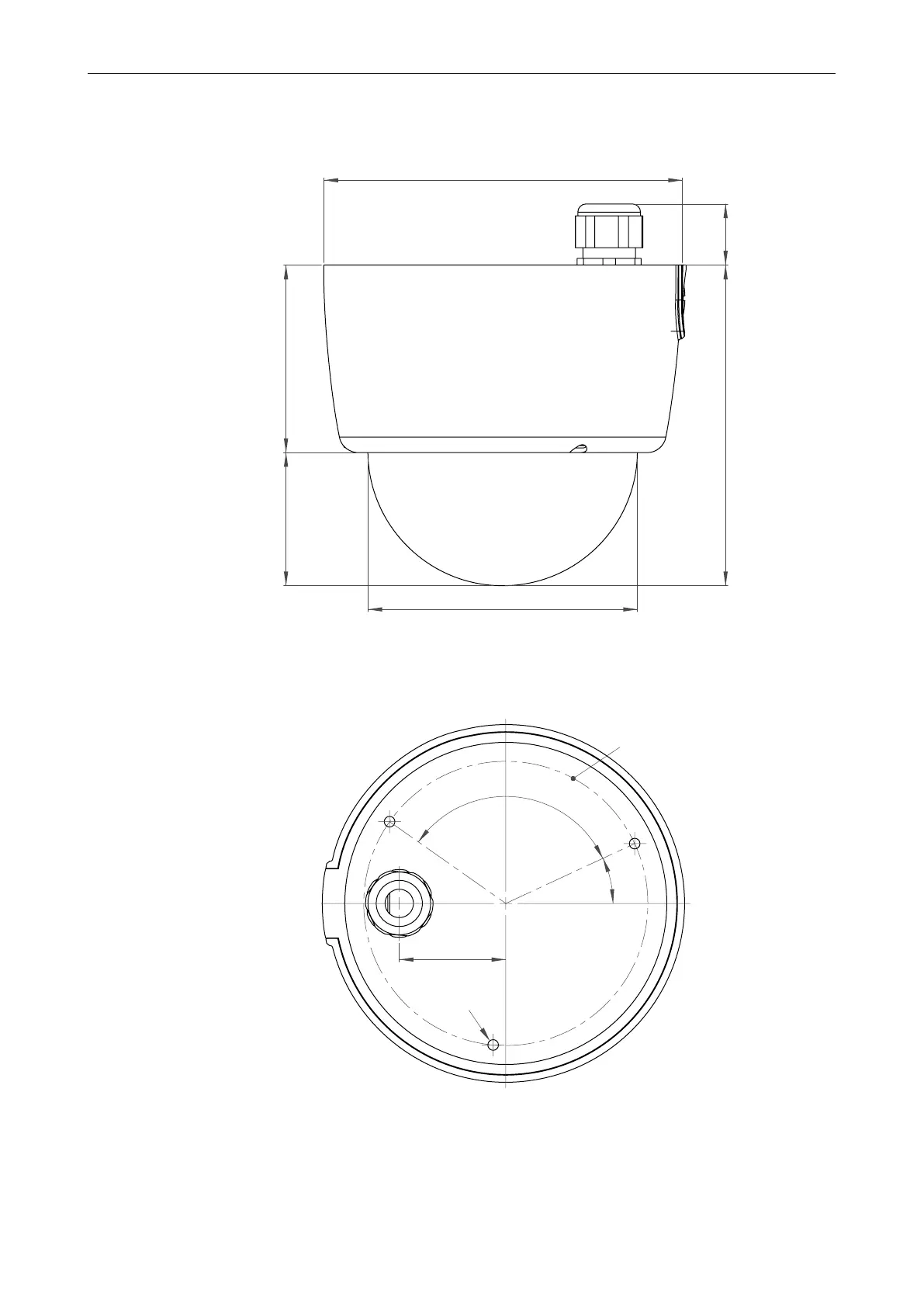

19.2.2 Surface Mount Variants (SM)
56.20 mm (2.21")
113.80 mm (4.48")
135.40 mm (5.33")
79.20 mm (3.12")
152 mm (5.98")
25.80 mm
(1.02")
Fig. 19-5
25°
(3x) 120°
45 mm (1.77")
Ø 120 mm
(4.72")
Ø 4.5 mm (0.18")
Fig. 19-6
