5.2 Dome Cameras
5.2.1 In-ceiling Mount Variant (IM)
M6 screw eye bolt
Housing
Trim ring with bubble
3-axis mount
(pan / tilt / rotation)
PG16 cable gland
Lens
Ceiling clamp
Housing screw
(T20 Torx)
Black inner
dome cover
Removable foam ring
Ambient light sensor

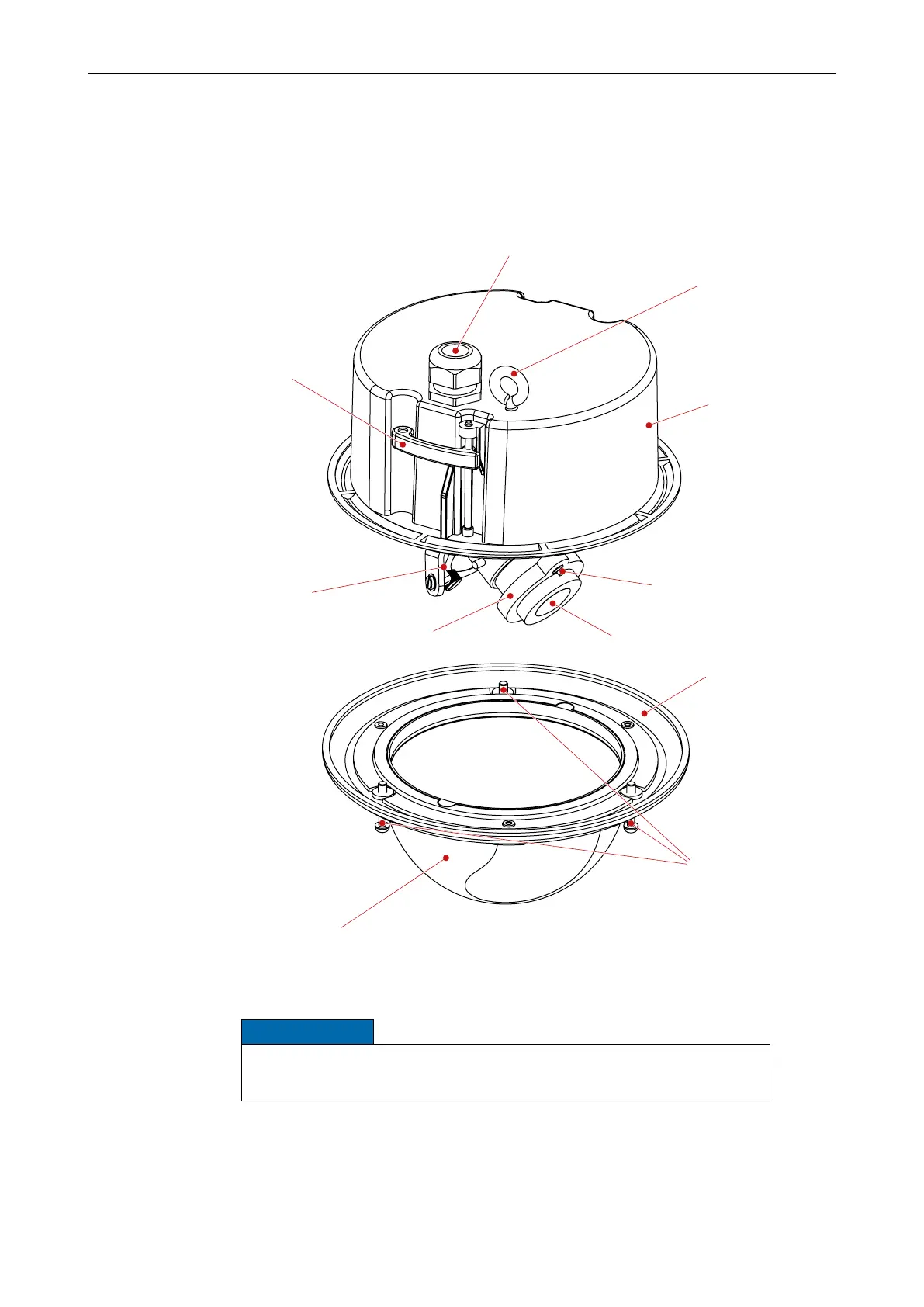

Fig. 5-3
NOTICE
Always ensure that the lens and the ambient light sensor are not covered
by the black inner dome cover when assembling the camera enclosure.
