DF4910HD-DN | DDF4910HDV-DN-IM/-SM
www.dallmeier.com 21

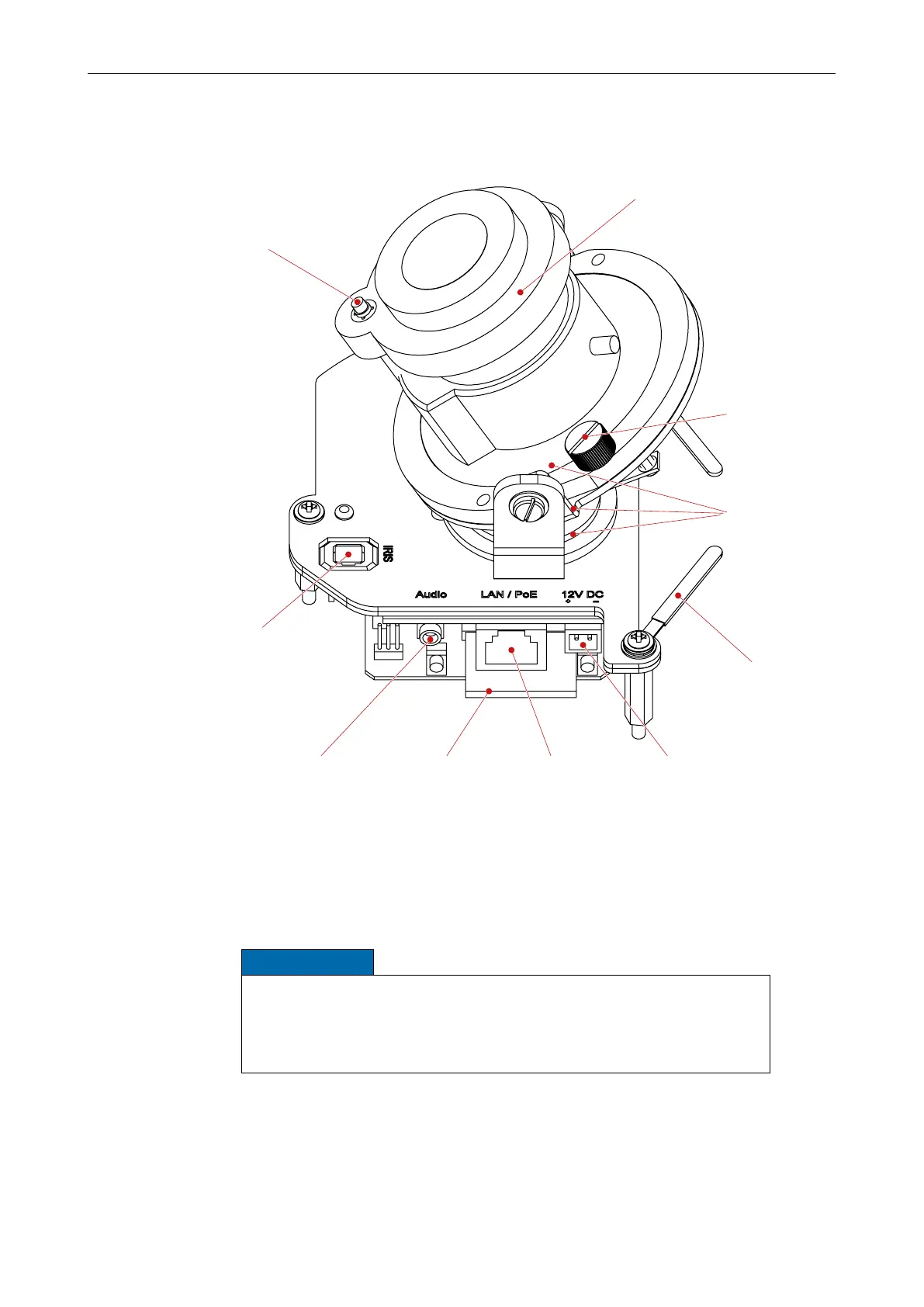

5.2.3 Camera Module
LAN / PoE
(RJ45 jack)
DC auto iris interface
for iris control
Audio OUT / Microphone IN
(3.5 mm phone jack)
Power IN (12 V DC)
Weidmüller male connector
SL 3.50/02/90G
SDHC card
Knurled screw
(rotation, z-axis)
3-axis mount
(pan / tilt / rotation)
Flexible cable fastener
Removable foam ring
Ambient light sensor
Fig. 5-7
Note that the SDHC card shown in the illustration above is not included in the standard
scope of delivery.
NOTICE
For a clean (interference-free) audio signal transmission, the Audio IN/OUT
Y-Cable Connector FGA-30 is required (optionally available).
Always ensure that the lens and the ambient light sensor are not covered
by the black inner dome cover when assembling the camera enclosure.
