DF4910HD-DN | DDF4910HDV-DN-IM/-SM
www.dallmeier.com 20
Mounting hole for
Ø 4 mm screw
Mounting hole for
Ø 4 mm screw
Thread for PG16 cable gland
Camera module
Thread for
housing screw
Thread for
housing screw
Video preview output
(BNC, CVBS)
Locking screw
(focal length)
Locking screw
(focus)
Flexible cable fastener
Flexible cable fastener
DC auto iris interface
for iris control
Mounting hole for
Ø 4 mm screw
Thread for
housing screw
Ambient light sensor
Removable foam ring

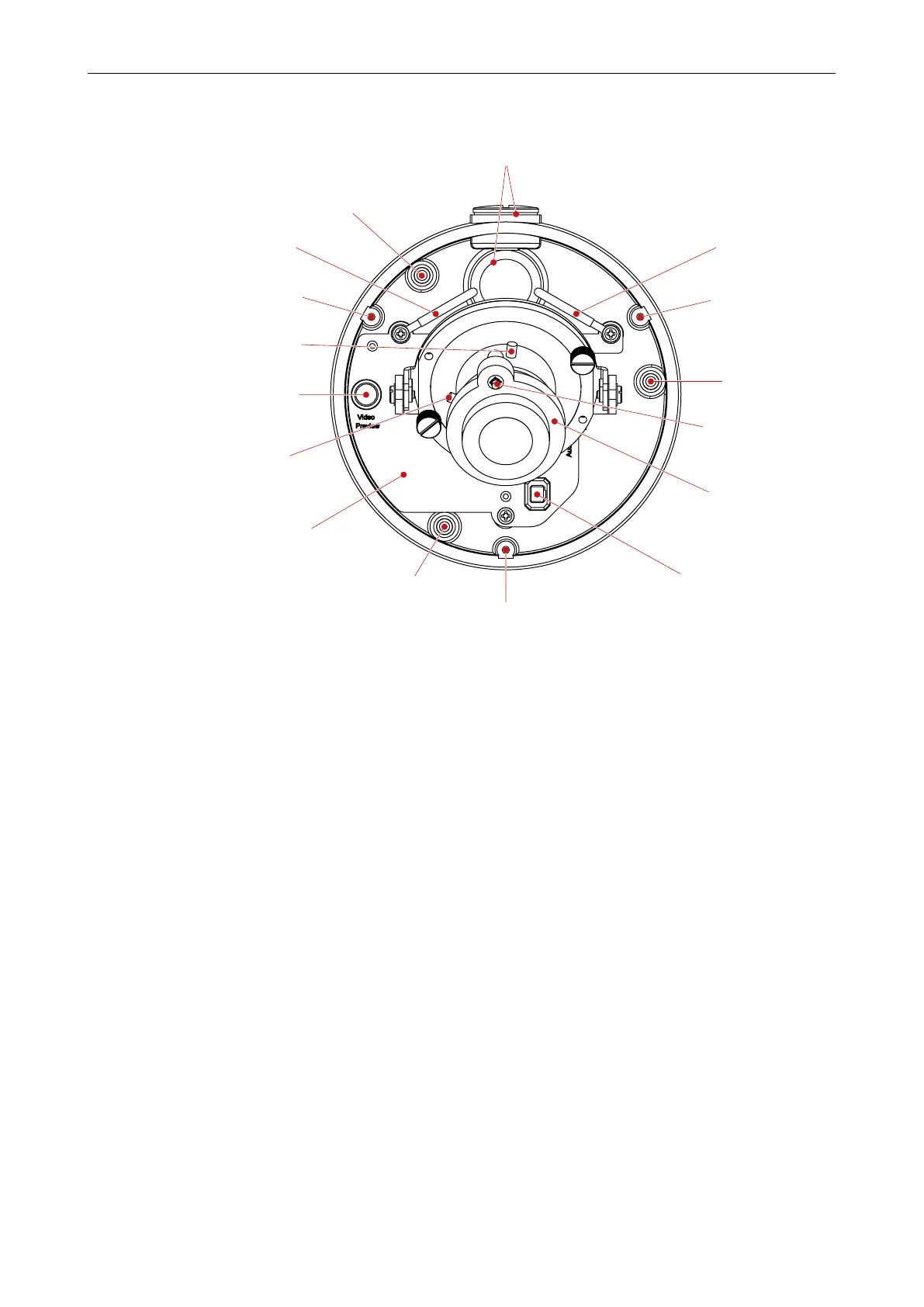

Fig. 5-6 Housing base of surface mount variant (top view)
