DF4910HD-DN | DDF4910HDV-DN-IM/-SM
www.dallmeier.com 98

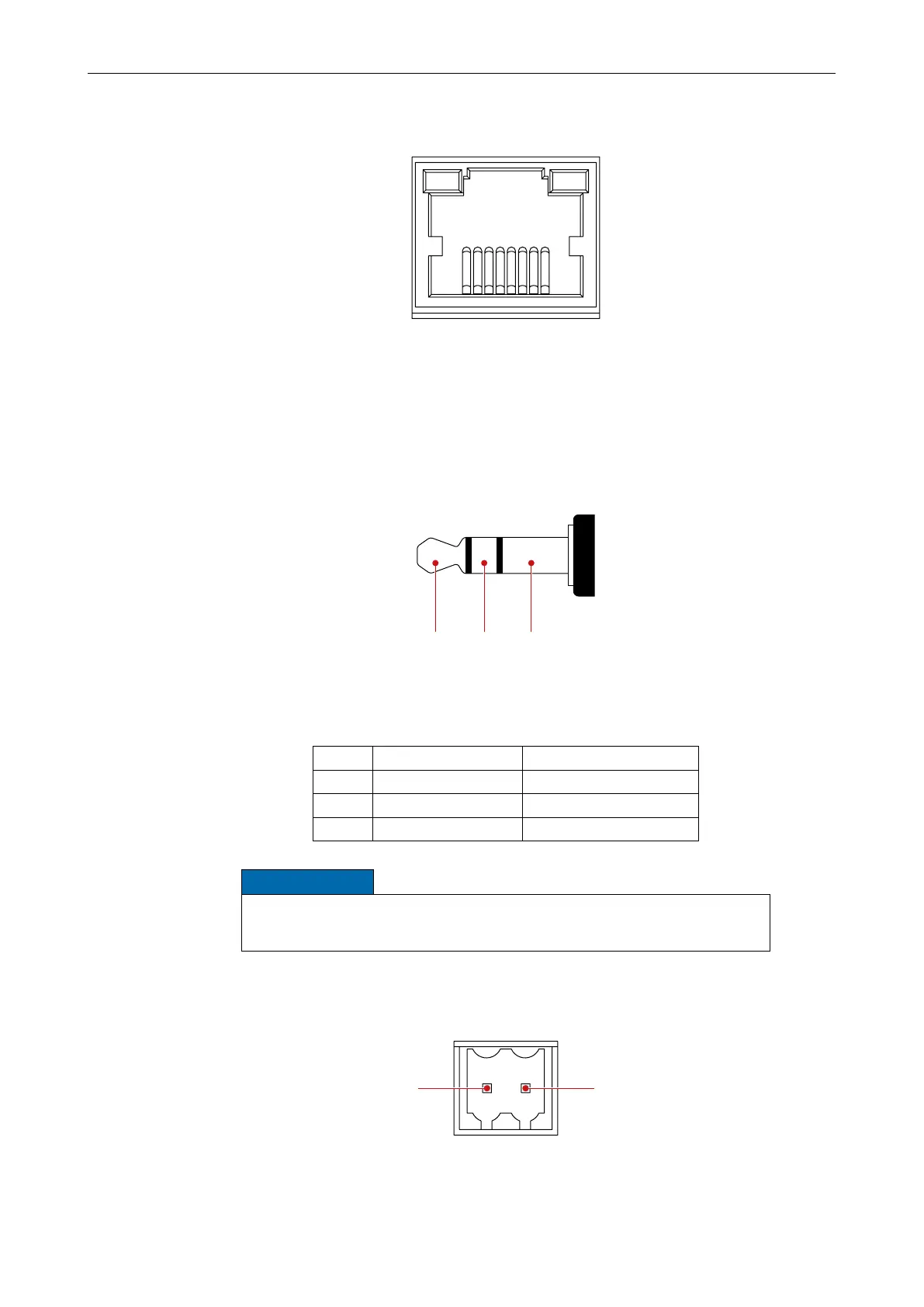

17.2 LAN/PoE
RJ45 jack
10BASE-T-/100BASE-TX-PoE
PoE conformity IEEE 802.3af
Fig. 17-2
17.3 Audio OUT / Microphone IN
Audio OUT / Microphone IN (3.5 mm phone jack, for stereo plug)
SleeveTip
Ring
Fig. 17-3
Audio OUT (mono) Microphone IN (mono)
Tip Signal Not used
Ring Not used Signal
Sleeve Ground Ground
NOTICE
For a clean (interference-free) audio signal transmission, the Audio IN/OUT
Y-Cable Connector FGA-30 is required (optionally available).
17.4 Power IN
Weidmüller male connector SL 3.50/02/90G
12 V DC (−)12 V DC (+)
Fig. 17-4
