DF4910HD-DN | DDF4910HDV-DN-IM/-SM
www.dallmeier.com 18
M4 locking screw
(ceiling clamp)
M4 locking screw
(ceiling clamp)
Thread for PG16 cable gland
DC auto iris interface
for iris control
Video preview output
(BNC, CVBS)
Locking screw
(focal length)
Locking screw
(focus)
Thread for
housing screw
Camera module
Thread for
housing screw
Thread for
housing screw
Flexible cable fastener Flexible cable fastener
Ambient light sensor
Removable foam ring

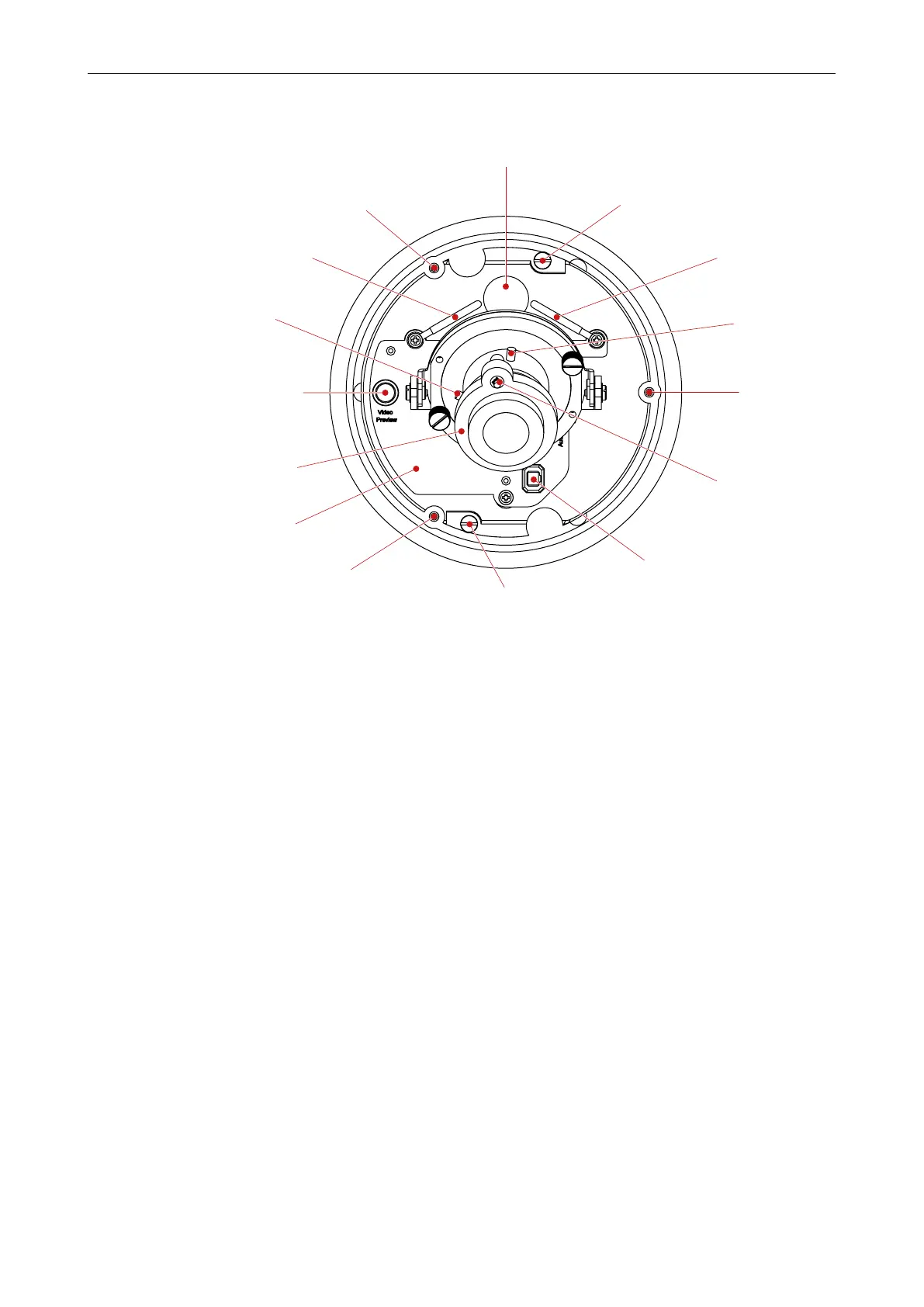

Fig. 5-4 Housing of in-ceiling mount variant (top view)
