Step 1
 Cut a circular recess (Ø 143 mm) into the suspended ceiling using a drywall utility saw
or a jigsaw.
 Screw the M6 screw eye bolt onto the bottom side of the housing.
 Unscrew the 3 housing screws using a T20 torx wrench and remove the trim ring.

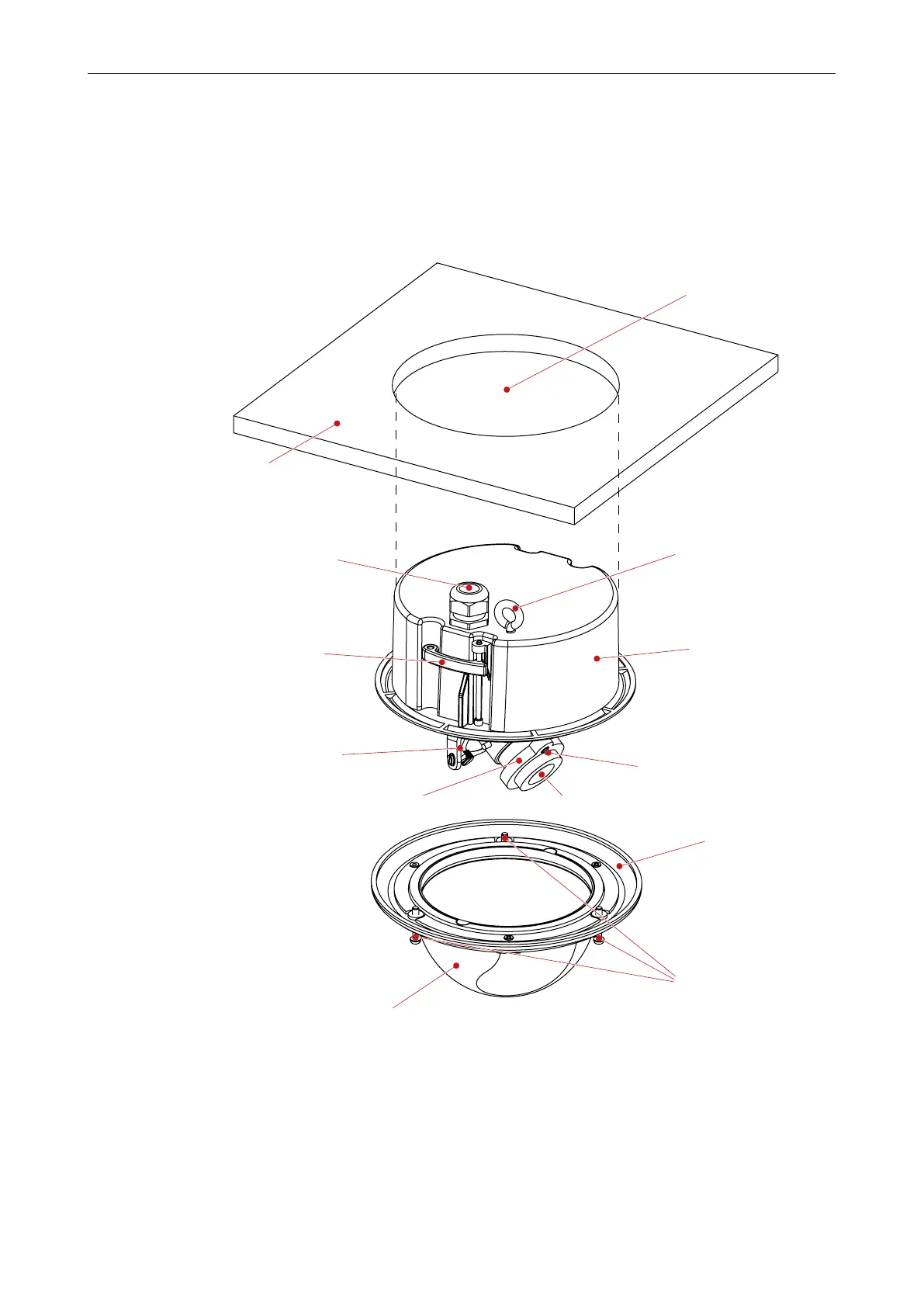

Suspended ceiling
Ø 143 mm
M6 screw eye bolt
Ceiling clamp
Trim ring with bubble
PG16 cable gland
Housing screw
(T20 Torx)
Housing
3-axis mount
(pan / tilt / rotation)
Lens
Black inner
dome cover
Removable foam ring
Ambient light sensor
Fig. 6-2
