Dalsa Linea SWIR GigE Series User Manual

Linea SWIR GigE Series Camera Technical Specifications
•
99

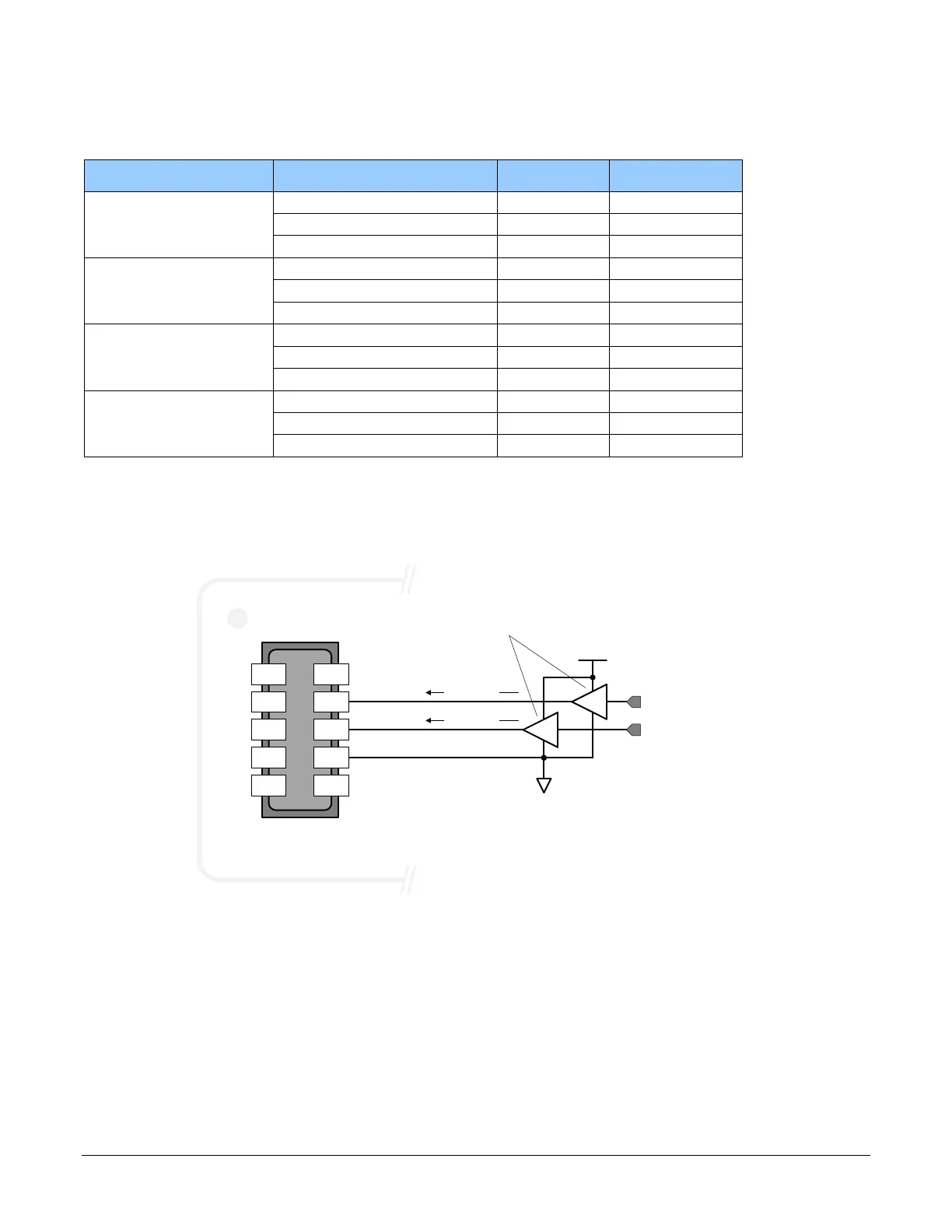

External Input AC Timing Characteristics
Conditions Description Min Unit
Input Pulse 0 – 3V Input Pulse width High 1.3 µs
Input Pulse width Low 1.7 µs
Max Frequency 315 kHz
Input Pulse 0 – 5V Input Pulse width High 0.6 µs
Input Pulse width Low 2 µs
Max Frequency 247 kHz
Input Pulse 0 -12V Input Pulse width High 0.39 µs
Input Pulse width Low 3 µs
Max Frequency 160 kHz
Input Pulse 0 – 24V Input Pulse width High 0.39 µs
Input Pulse width Low 4.9 µs
Max Frequency 103 kHz
External Inputs: Using TTL / LVTTL Drivers
• External Input current is limited by camera circuits to a maximum of 10 mA.
User IO
Ground
User IO
Power
Imax = 10mA
Imax = 10mA
LVTTL / TTL
Push-Pull
Buffer
10 9
8 7
6
5
4 3
2
1
Camera IO
Interface
External Signal 2
External Signal 1
(Common Ground)
( Input 1 )
( Input 2 )
Figure 55: External Inputs with TTL Sources
