Dalsa Linea SWIR GigE Series User Manual

12
•

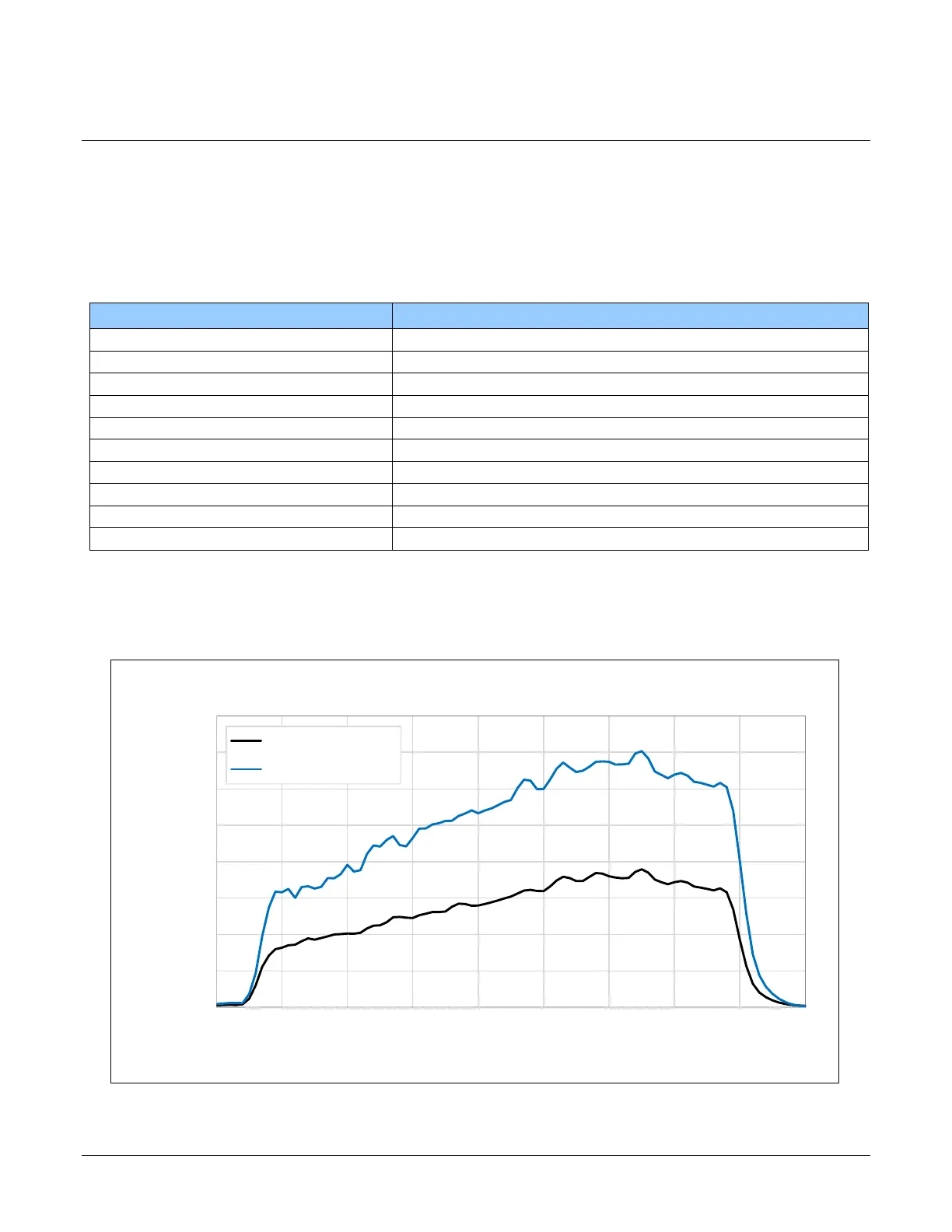

Linea SWIR GigE Series Overview Linea SWIR GigE Series Camera
Sensor Performance
The sensor description below provides a specification table and response graph. The graph
describes the sensor response to different wavelengths of light (excluding lens and light source
characteristics).
Sensor Specifications
Item / Feature Specification
Camera Model SL-GA-01K04A-00-R / SL-GA-05H04A-00-R
Sensor Used InGaAs, 1024 pixels
Spectral Band 950 to 1700 nm
Peak Wavelength 1550 nm typical
Pixel Size 12.5 x 12.5 µm (1k) / 25 x 25 µm (512k)
Sensor Gain Range 4 user selectable gain settings
Output Dynamic Range Up to 72 dB
Full Well 10,000 ke- (@min gain), 135 ke- (@ max gain)
Random Noise 2860e- (@min gain), 400e- (@ max gain)
Dark Current <5 pA
Spectral Responsivity
The responsivity graph illustrates the sensor’s response to different wavelengths of light (excluding
lens and light source characteristics).
Figure 3: Spectral Responsivity
0.0
200.0
400.0
600.0
800.0
1000.0
1200.0
1400.0
1600.0
900 1000 1100 1200 1300 1400 1500 1600 1700 1800
Responsivity [DN
12
/nJ/cm
2
]
Wavelength [nm]
Spectral Responsivity
SL-GA-01K04A-00-R
SL-GA-05H04A-00-R
EMVA1288 Release 3.1 compliant - 8nm bandwidth, 10nm steps, Savitzky-Golay filtering: 3rd EMVA1288 Release 3.1 compliant - 8nm bandwidth, 10nm steps, Savitzky-Golay filtering: 3rd
