Linea SWIR GigE Series Camera Technical Specifications
93
Additional Notes on Camera Identification and
Mechanical
Identification Label
Linea SWIR GigE cameras have an identification label applied to the bottom side, with the following
information:
Model Part Number
Serial Number
MAC ID
2D Barcode
Sensor Alignment Specification

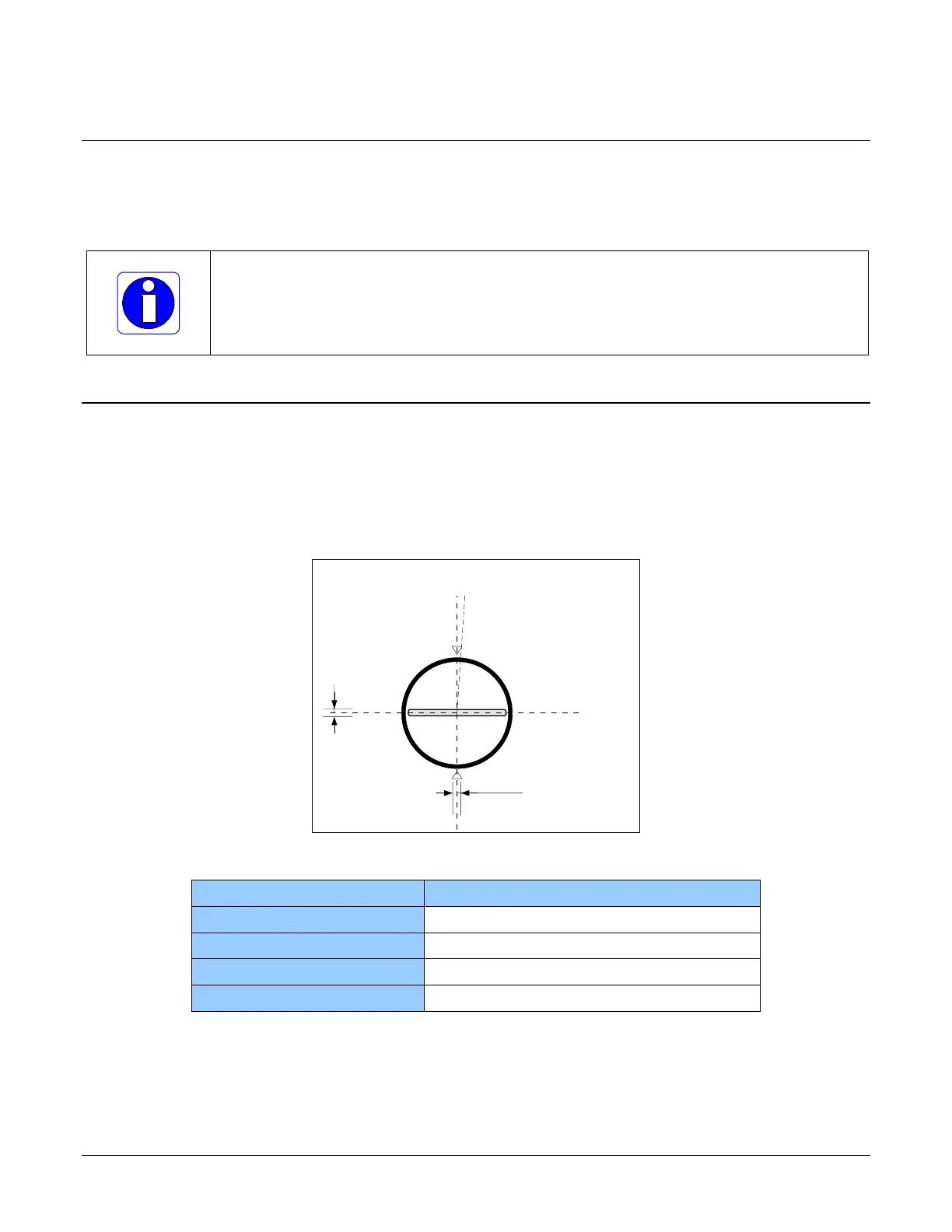

The following figure specifies sensor alignment for the camera; the specifications define the
absolute maximum tolerance allowed for production cameras. Dimensions "x, y, z" are in microns
and referenced to the camera’s mechanical body or the optical focal plane (for the z-axis
dimension). Theta specifies the sensor rotation relative to the sensor's center and camera
mechanical.
(+/-) Y variance
(+/-) X variance
Sensor Alignment Reference
Z variance not shown
(+/-) theta variance
Figure 49: Sensor Alignment Reference
Linea SWIR GigE
X variance
± 300 µm
Y variance
± 300 µm
Z variance
± 500 µm
Theta variance
± 0.
