Technical Specifications Linea SWIR GigE Series Camera
I/O Mating Connector Specifications & Sources
Users wishing to build their own custom I/O cabling can use the following product information to
expedite your cable solutions. The table lists Samtec web information for the discrete connector
and a cable assembly with retention clips follows the table.
MFG Part # Description Data Sheet
Samtec ISDF-05-D
ISDF-05-D-M (see
image below
Discrete Connector
(see example below)
http://www.samtec.com/products/isdf
Samtec SFSD-05-[WG]-G-
[AL]-DR-[E2O]
WG: Wire Gauge
AL: Assembled
Length
E2O: End 2 Option
Discrete Cable Assembly
(see example below)
http://www.samtec.com/products/sfsd
ISDF-05-D-M Connector Availability On-Line
North America (specific country can be
selected)
http://www.newark.com/samtec/isdf-05-d-m/connector-housing-receptacle-
10/dp/06R6184
Europe (specific country can be
selected)
http://uk.farnell.com/samtec/isdf-05-d-m/receptacle-1-27mm-crimp-
10way/dp/2308547?ost=ISDF-05-D-M
Asia – Pacific (specific country can be
selected)
http://sq.element14.com/samtec/isdf-05-d-m/receptacle-1-27mm-crimp-
10way/dp/2308547?ost=ISDF-05-D-M
Important: Samtec ISDF-05-D-S is not compatible with Linea SWIR GigE
Samtec ISDF-05-D-M Mating Connector
Used for customer built cables w/retention clips “.050” Tiger Eye™ Discrete Wire Socket Housing”

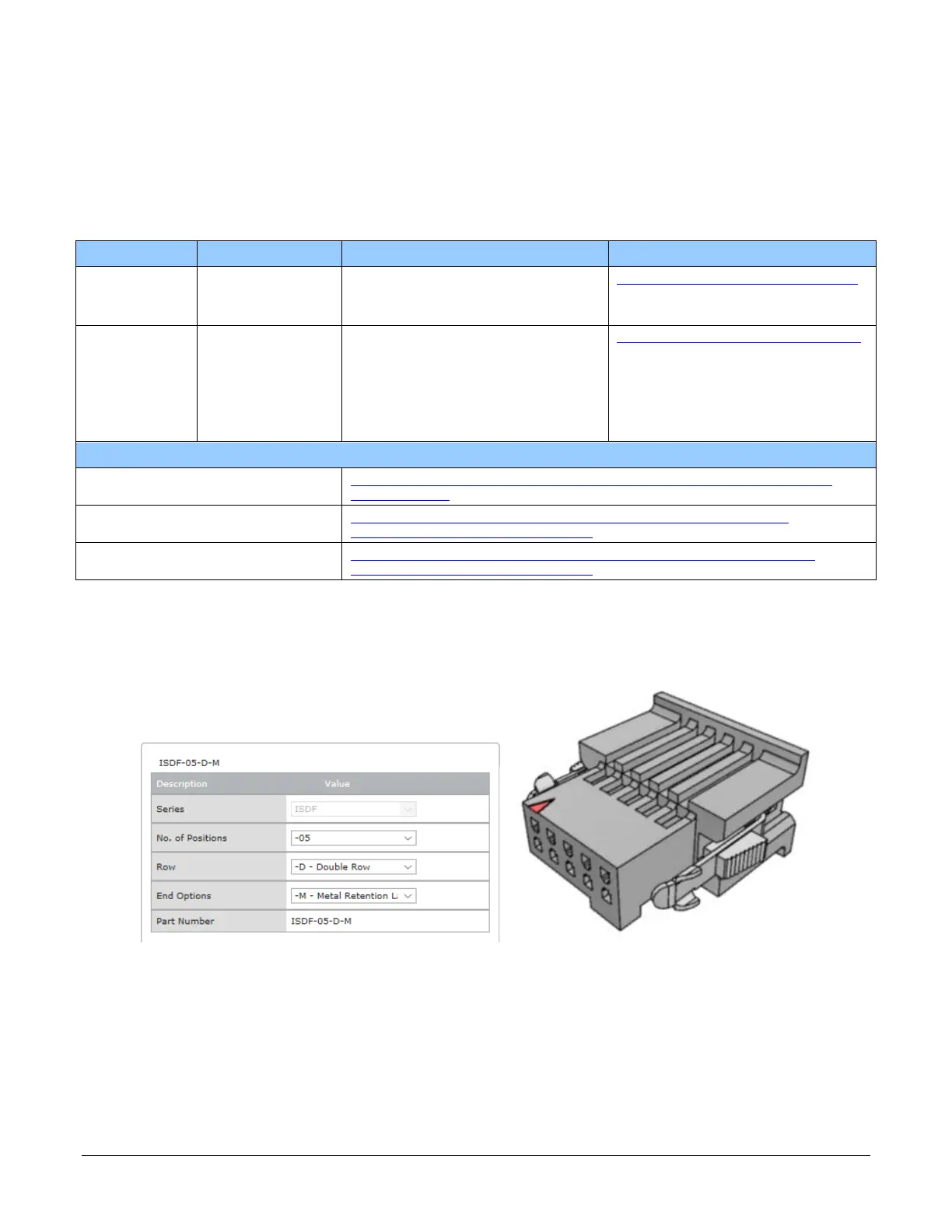

Figure 52: Samtec ISDF-05-D-M Mating Connector
