Dalsa Linea SWIR GigE Series User Manual

Linea SWIR GigE Series Camera Technical Specifications
•
95

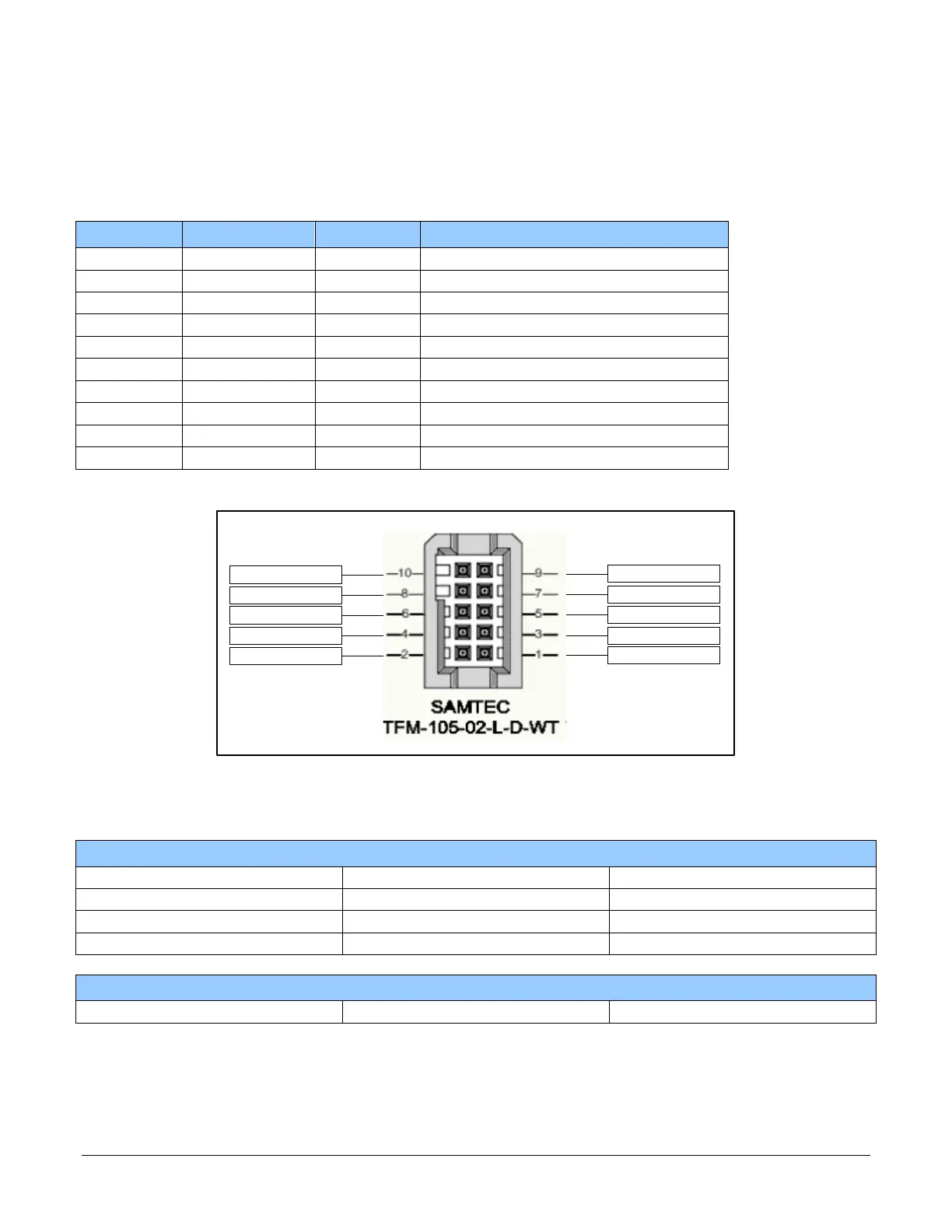

10-Pin I/O Connector Pinout Details
Teledyne DALSA manufactures optional I/O cables as described in Optional Cable Accessories.
Contact Sales for availability and pricing.
Pin Number Linea SWIR Direction Definition
1 PWR-GND - Camera Power - Ground
2 PWR-VCC - Camera Power – DC +12 to +24 Volts
3 GPI-Common - General Input Common Ground
4 GPO-Power - General Output Common Power
5 GPI 1 In General External Input 1
6 GPO 1 Out General External Output 1
7 GPI 2 In General External Input 2
8 GPO 2 Out General External Output 2
9 RESERVED - Reserved for Future Use
10 Chassis - Camera Chassis
Reserved
GPI-
2
GPI-1
GPI -
Common
Power -
Ground
Chassis
GPO-
2
GPO-
1
GPO
-
Power
Power
- Vcc
Figure 51: I/O Connector ID
Camera DC Power Characteristics
DC Operating Characteristics
Input Voltage +12 Volts minimum
Input Power Consumption @+12 Volt Supply 3.72 Watts typical
Input Power Consumption @+20 Volt Supply 3.80 Watts typical
Input Power Consumption @+24 Volt Supply 3.84 Watts typical
Absolute Maximum DC Power Supply Range before Possible Device Failure
Input Voltage -58 Volts DC +58 Volts DC
