Internal Test Image Generator
The camera includes a number of internal test patterns, which confirm Ethernet connection and
driver installation without the need for a camera lens or proper lighting. The patterns are subject to
camera processing and Binning functions.
Use CamExpert to enable and select Test Image from the drop down menu while the camera is not
in Acquisition Mode. Click Grab to display the pattern output.
Acquisition and Transfer Control Category
The Linea SWIR GigE Camera’s Acquisition and Transfer Controls shown by CamExpert shows
parameters used to configure the optional acquisition modes of the device. These features provide
the mechanism to have acquisitions coupled to transfers (basic mode) or decoupled acquisitions
from both the camera and host transfer modules.
Parameters in gray are read only, either always or due to another parameter being disabled.
Parameters in black are user set in CamExpert or programmable via an imaging application.
Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or
third party software usage — not typically required by end user applications.

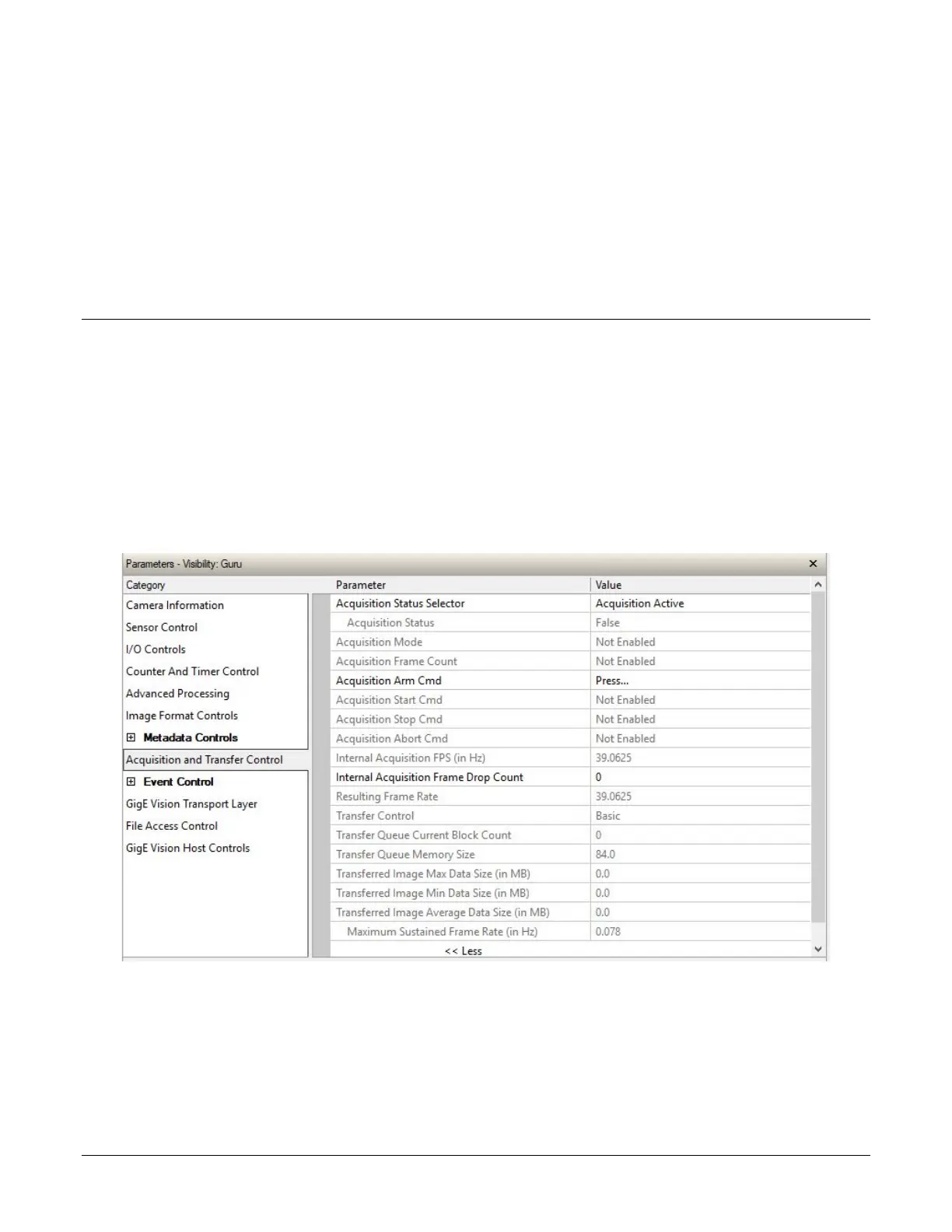

Figure 41: Acquisition and Transfer Features
