Operational Reference Linea SWIR GigE Series Camera
Example: CounterStartSource = Signal (Level Base) Example 1
Countermode=OFF
Counter is
IDLE
CounterEnd Event Generated
CounterStartSource=
Signal (Level Base )
CounterWait
Trigger
Counter Register
Countermode=Active
Counter
Completed
CounterResetSource =CounterEnd(Itself)
CounterStartSource= Signal (Level Base ) Example 1
Wait
Active
Active
CounterTriggerActivation=
LevelLow
Counter STATUS
0 1065
0
9
Tick in
CounterEventSource
Active
11

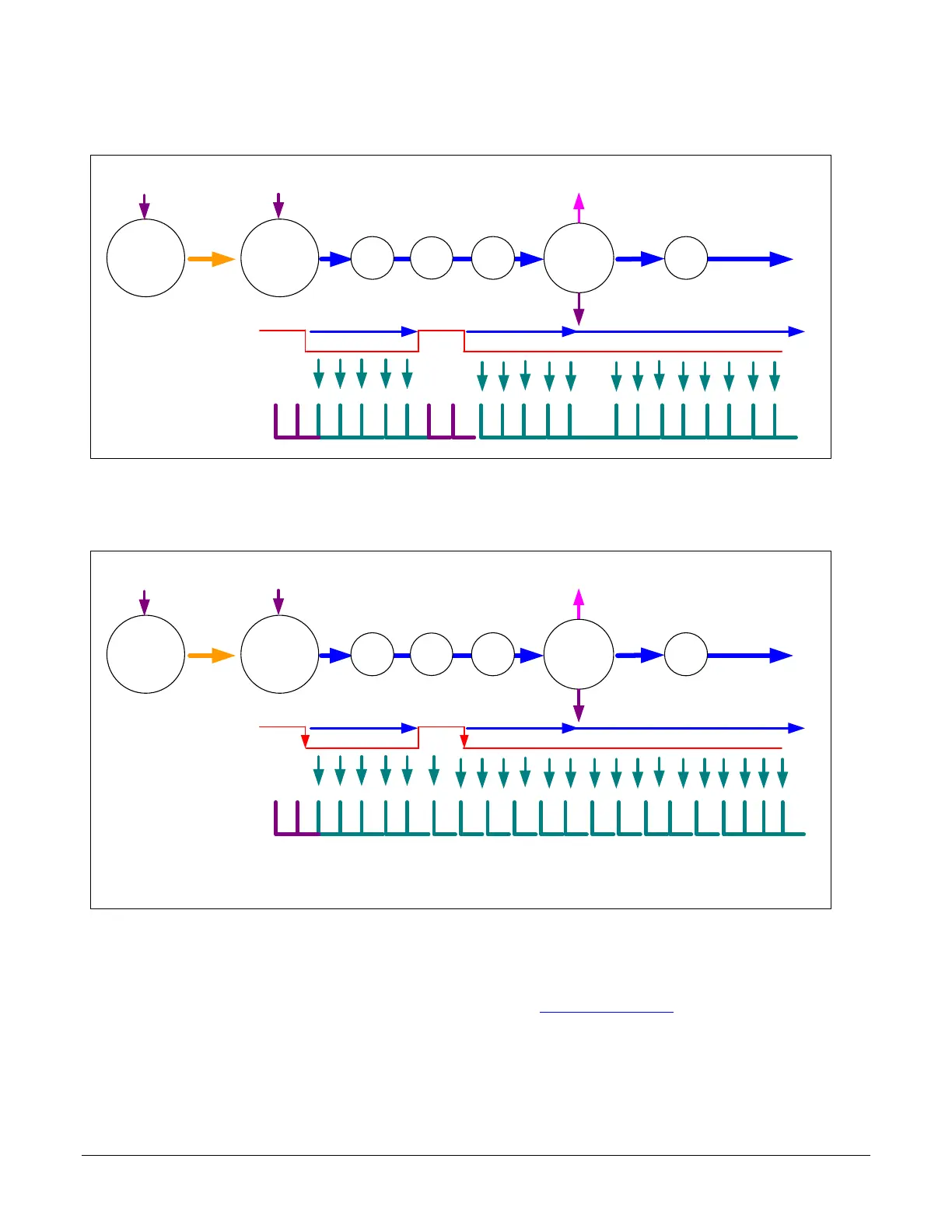

Figure 25: CounterStartSource = Signal
Example: CounterStartSource = Line (Edge Base) Example 2
Countermode
=OFF
Counter is
IDLE
CounterEnd Event Generated
CounterStartSource=
Line 1
CounterWait
Start
Counter Register
Countermode=
Active
Counter
Completed
CounterResetSource =CounterEnd
(Itself)
CounterStartSource=
Line (Edge Base
) Example 2
Active
Active
Active
CounterTriggerActivation
=
Falling Edge
Counter STATUS
0
12
85 10
any Tick in
CounterEventSource
Active
1
1
CounterDuration
=12
0
The Second StartSource Pulse is ignored
Figure 26: CounterStartSource = Line
Note: Counters and events with trigger or exposure sources will, for each frame or multi-frame
acquisition of Y lines, report Y+1 triggers. This is due to each trigger starting both a new
acquisition and reading out the previous acquisition. See Trigger Overview for more details.
