Dalsa Linea SWIR GigE Series User Manual

Linea SWIR GigE Series Camera Technical Specifications
•
97
Samtec Assembly SFSD-05-28-H-03.00-SR

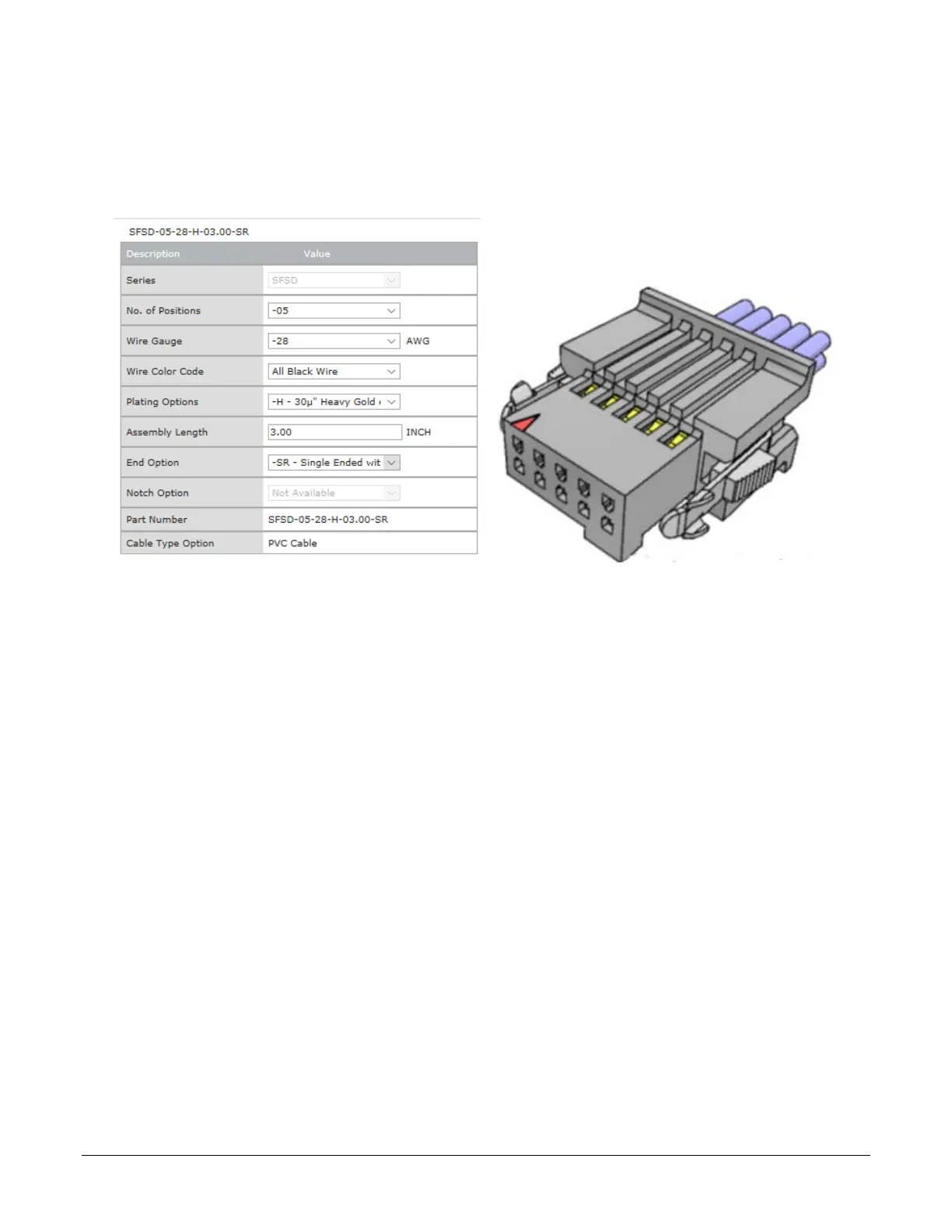

Samtec connector-cable assembly SFSD-05-28-H-03.00-SR w/retention clips “.050” Tiger Eye™
Double Row Discrete Wire Cable Assembly, Socket”
Figure 53: Cable Assembly SFSD-05-28-H-03.00-SR
Power over Ethernet (PoE) Support
• The Linea SWIR GigE requires a PoE Class 0 or Class 2 (or greater) power source for the
network if not using a separate external power source connected to pins 1 & 2 of the camera’s
I/O Connector.
• To use PoE, the camera network setup requires a powered computer NIC supporting PoE, or a
PoE capable Ethernet Switch or an Ethernet power injector.
• Important: Connect power via PoE or the I/O connector, not both. Although the camera has
protection, differences in ground levels may cause operational issues or electrical faults.
• If both supplies are connected and active, the camera will use the I/O power supply connector.
Ground differences may cause camera faults or failure.
• Important: When using PoE, the camera’s I/O pin 1 (Camera Power – Ground) must not be
connected to I/O pin 3 (General Input Common Ground).
