the label FALSE in the parameter lists in the section
Parameter
Lists
.
The par. 0-12 link set-up feature is used by Multi set-up in par.
0-10
Active Set-up
. Multi set-up is used to move from one set-
up to another during operation (i.e. while the motor is running).
Example:
Use Multi set-up to shift from Set-up 1 to Set-up 2 whilst the
motor is running. Programme in Set-up 1 first, then ensure that
Set-up 1 and Set-up 2 are synchronised (or ‘linked’). Synchro-
nisation can be performed in two ways:

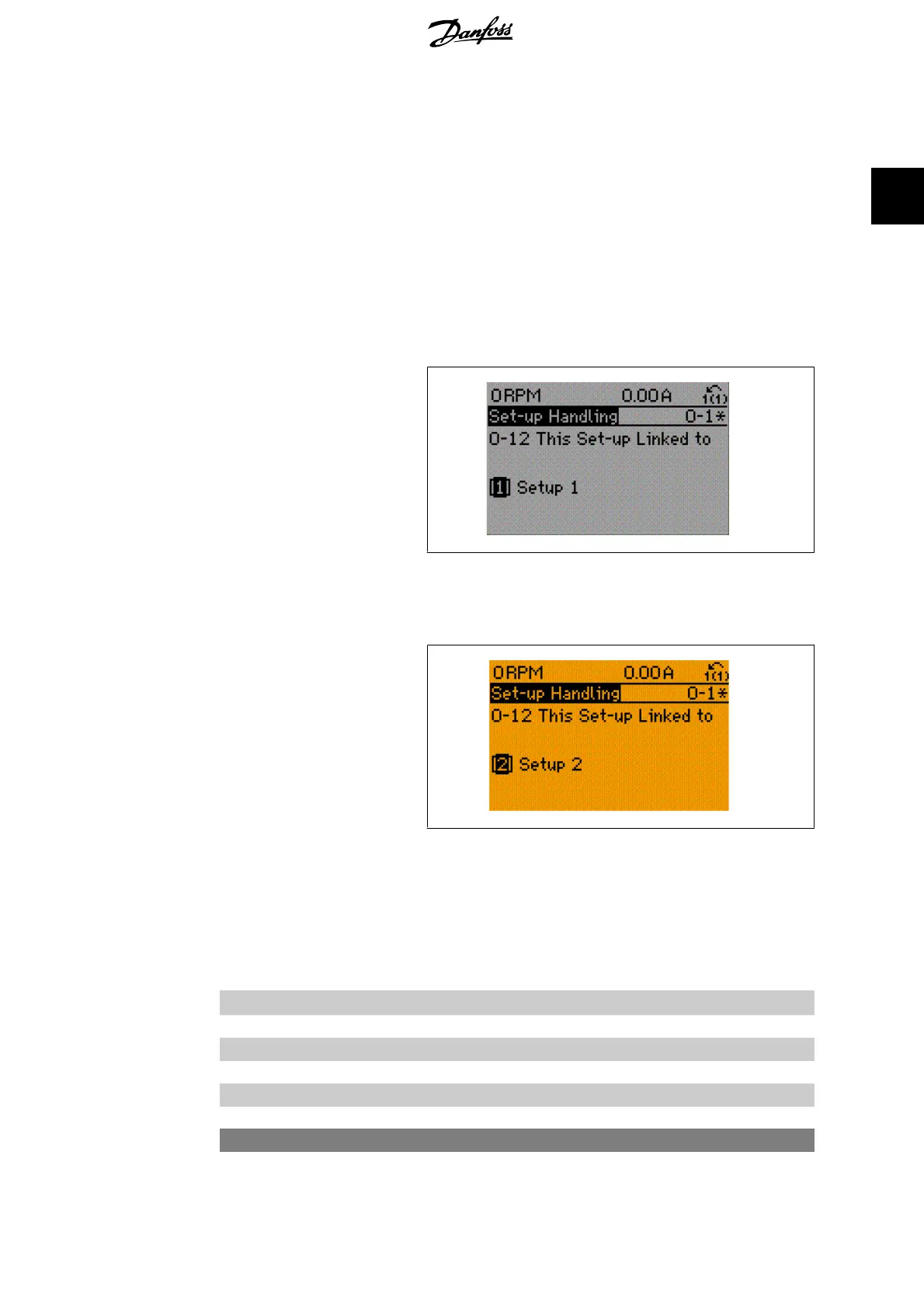

1. Change the edit set-up to
Set-up 2
[2] in par. 0-11
Edit Set-
up
and set par. 0-12
This Set-up Linked to
to
Set-up 1
[1]. This
will start the linking (synchronising) process.
130BP075.10
OR
2. While still in Set-up 1, copy Set-up 1 to Set-up 2. Then set
par. 0-12 to
Set-up 2
[2]. This will start the linking process.
130BP076.10
After the link is complete, par. 0-13
Readout: Linked Set-ups
will
read {1,2} to indicate that all ‘not changeable during operation’
parameters are now the same in Set-up 1 and Set-up 2. If there
are changes to a ‘not changeable during operation’ parameter,
e.g. par 1-30
Stator Resistance (R
s
)
, in Set-up 2, they will also
be changed automatically in Set-up 1. A switch between Set-up
1 and Set-up 2 during operation is now possible.
[0]
*
Not linked
[1] Set-up 1
[2] Set-up 2
[3] Set-up 3
[4] Set-up 4
0-13 Readout: Linked Set-ups
FC 300 Programming Guide 2. How to Programme
MG.33.M2.02 - VLT
®
is a registered Danfoss trademark
31
2
