6. InstallthemainsinputcablestotheTerminalBlockandtorqueto20Nm(15ft.lb.).RefertoFigure4-85
TerminalBlock-InputPressureScrews-TTS300/TGS230.

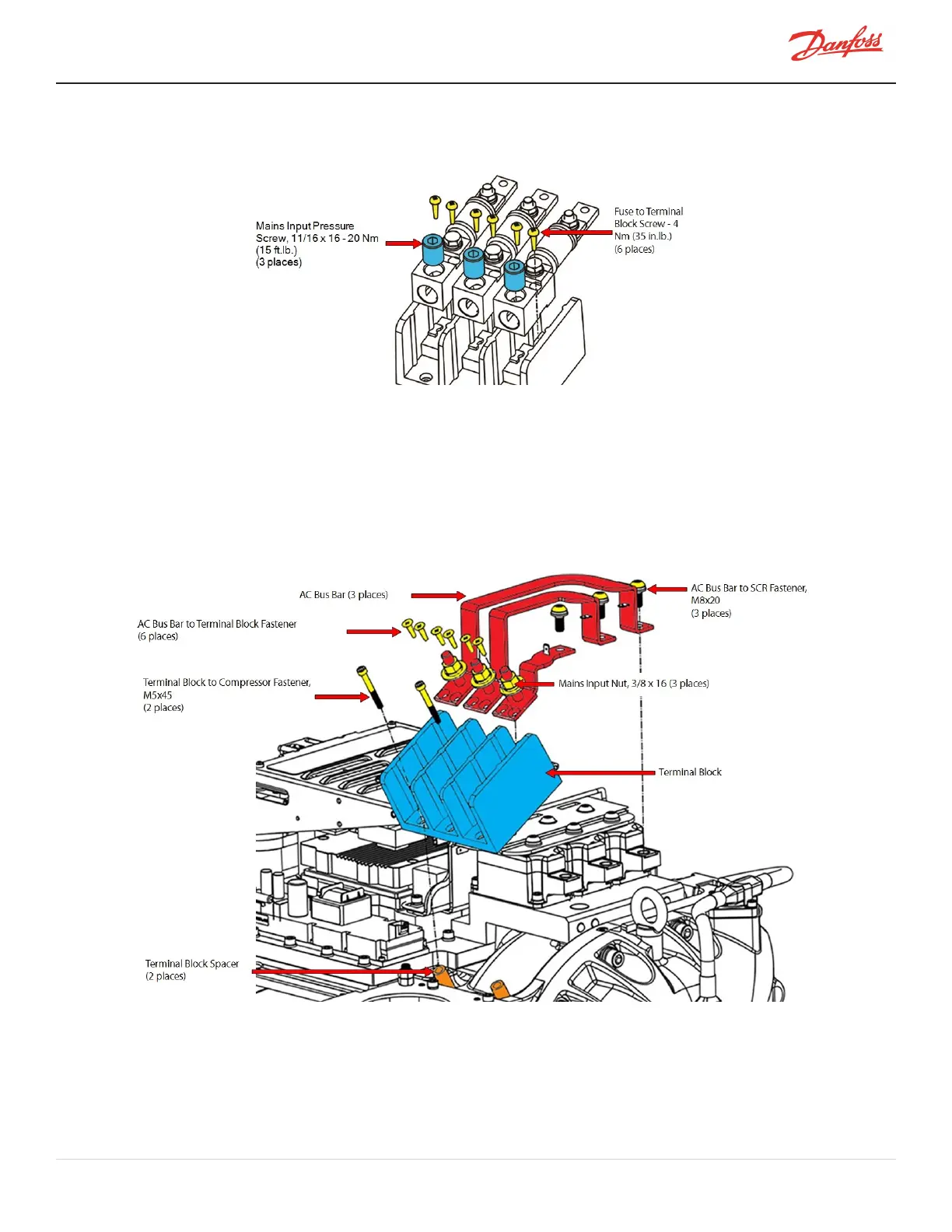

Figure 4-85 Terminal Block - Input Pressure Screws - TTS300/TGS230

7. ContinuetoSection4.11.2.6General3-PhaseMainVoltageInputTerminalBlockInstallationonpage
106.

4.11.2.5 3-Phase Main Input Terminal Block Installation - TTH/TGH/TTH/TGH (Except TTS300/TGS230)

Figure 4-86 Input Terminal Block Installation - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)

M-SV-001-EN Rev. H-1/23/2023 Page 105 of 294
