Figure 4-161 SCR Removal - TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)
8. CleantheheatsinkpastefromtheSCRandManifoldusingaclothandisopropylAlcohol.
9. ContinuetoSection4.18.3.5SCRInstallation-TTS/TGS/TTH/TGH(ExceptTTS300/TGS230)onpage155.
4.18.3.4 SCR Installation - TTS300/TGS230
1. CleanthecontactsurfacesofSCRCoolingManifold.
2. IftheSCRsaretobereused,cleantheirmountingsurface(backside)toensurethesurfaceisfreeofany
contaminants.
3. SpreadathinanduniformcoatofDowCorningSiliconeHeatSinkpaste(orequivalent)entirelyover
thebottomofeachSCRsurface.RefertoFigure4-162SCRHeatSinkPasteApplication-
TTS300/TGS230.

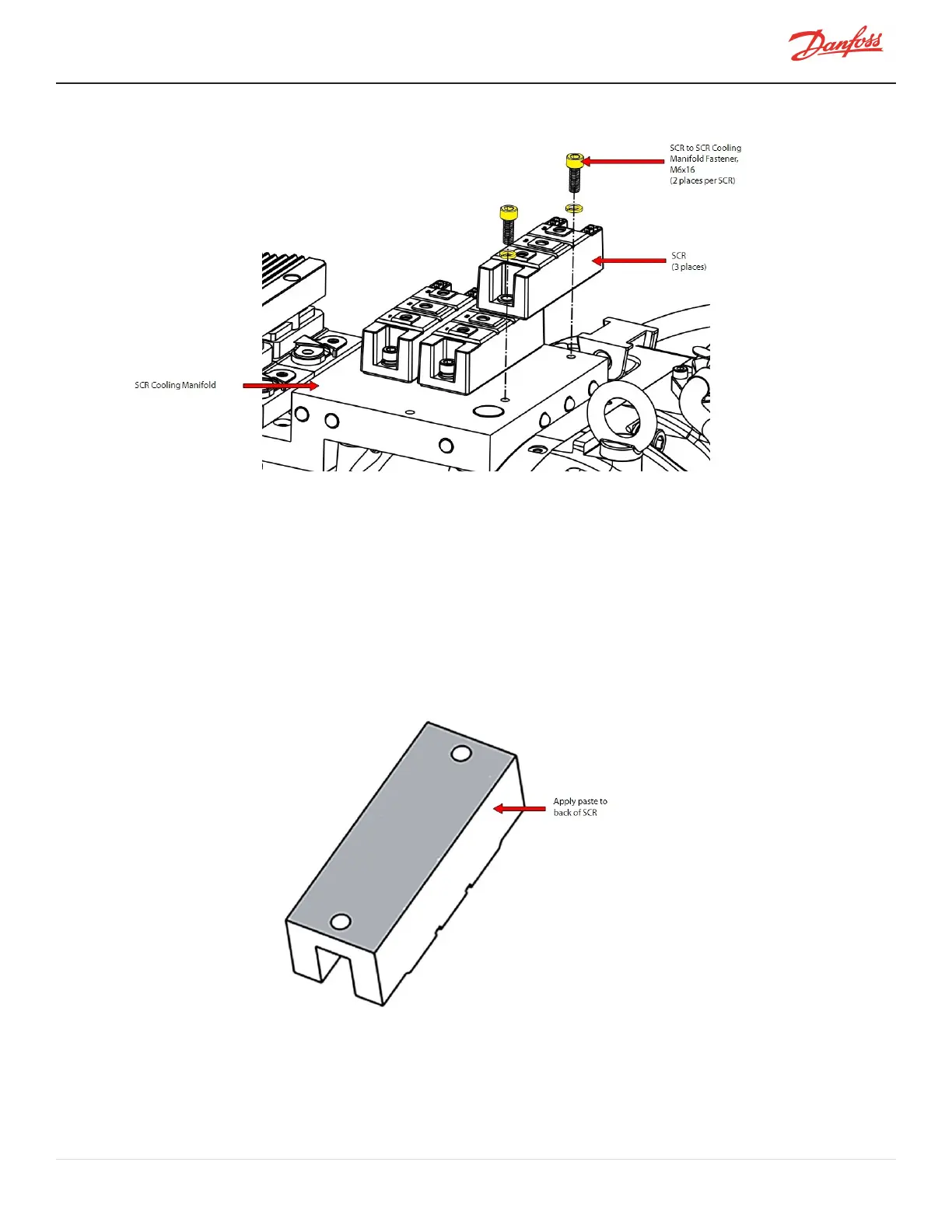

Figure 4-162 SCR Heat Sink Paste Application - TTS300/TGS230
4. InstalltheSCRsontheSCRCoolingManifold.TheSCRGateConnectorsshouldbeonthesamesideas
theDischargeP/TSensor.RefertoFigure4-163SCROrientation-TTS300/TGS230onpage154forthis
andthefollowingstep.
5. Insertandfinger-tightenthesix(6)M6x16SCRtoSCRCoolingManifoldfasteners.

M-SV-001-EN Rev. H-1/23/2023 Page 153 of 294
