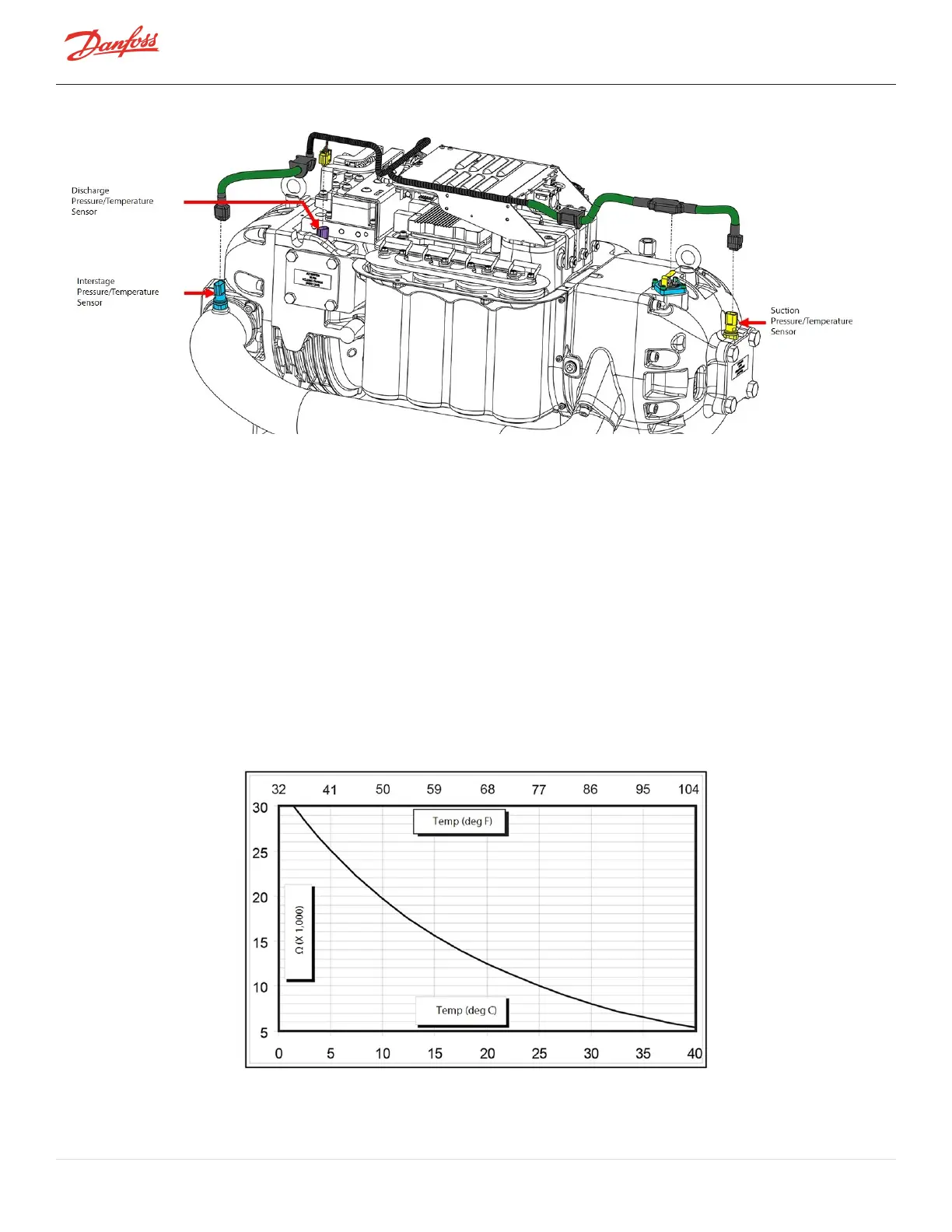

Figure 4-272 Pressure/Temperature Sensor Locations (TTH/TGH)
The๎sensor๎connector๎clips๎link๎to๎the๎compressor๎control๎cable๎which๎then๎connect๎to๎the๎Backplane๎at๎J18๎and๎J19๎
(and๎J17๎for๎TTH/TGH๎only).
4.32.3 Pressure/Temperature Sensor Verification
๎1.๎ Isolate๎the๎compressor๎power๎as๎described๎in๎Section๎1.8๎๎Electrical๎Isolation๎on๎page๎22.
๎2.๎ Remove๎the๎Service๎Side๎Cover.๎Refer๎to๎Section๎4.1.3.1๎๎Service๎Side๎Cover๎Removal๎and๎Installation๎on๎
page๎54.
๎3.๎ Disconnect๎the๎pressure/temperature๎cable๎clip๎(SUCTION๎โ๎J18๎or๎DISCHGE๎โ๎J19๎or๎INTER๎-๎J17)๎from๎
the๎Backplane๎board.๎Refer๎to๎Figure๎4-274๎๎Pressure/Temperature๎Cable๎Terminals๎on๎page๎247๎for๎this๎
and๎the๎following๎step.
๎4.๎ Using๎a๎multimeter๎set๎for๎resistance๎measurements,๎place๎leads๎on๎Terminal๎1๎and๎Terminal๎2๎of๎the๎
pressure/temperature๎cable๎clip.
๎l
The๎temperature๎sensor๎is๎a๎10Kฮฉ๎@๎77ยฐF๎(25ยฐC)๎NTC๎thermistor.๎The๎resistance๎value๎should๎
correspond๎to๎Figure๎4-273๎๎Temperature๎vs.๎Resistance.
Figure 4-273 Temperature vs. Resistance
๎
