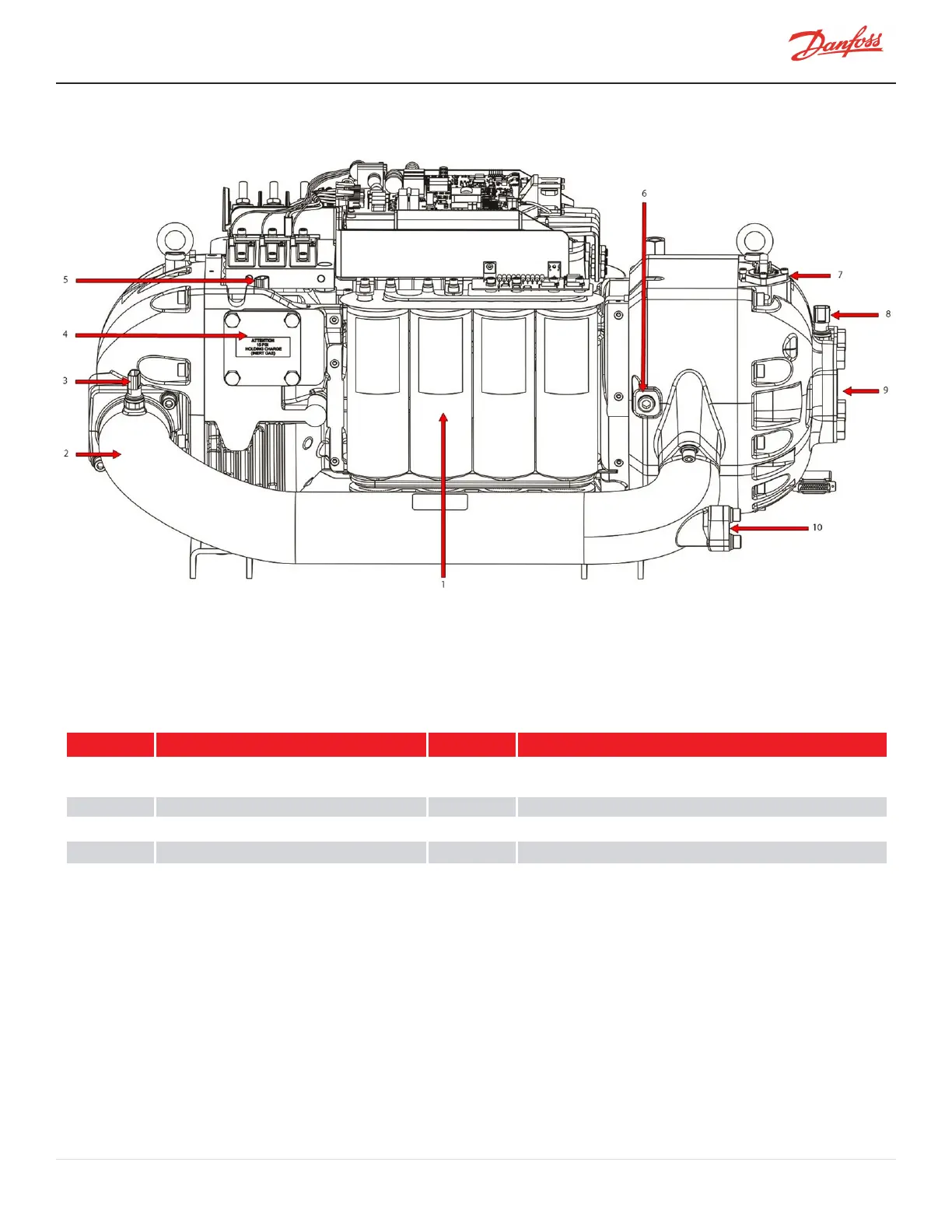

Figure 4-5 Compressor Component Identification - Capacitor Side (TTH/TGH Only)




Table 4-5 Compressor Components Capacitor Side (TTH/TGH Only)
No. Component No. Component
1 Capacitors 6 Optional(Medium-Tempapplication)CoolingPathPressure
RegulatingPort
2 InterstagePipe 7 IGVMotorFeedthrough
3 InterstageTemperature/PressureSensor 8 SuctionTemperature/PressureSensor
4 DischargePort
9
SuctionPort
5 DischargeTemperature/PressureSensor 10 EconomizerPort

M-SV-001-EN Rev. H-1/23/2023 Page 51 of 294
