LC filters VLT 6006-6032, 200 - 240 V / 6016-6062
380 - 460 V

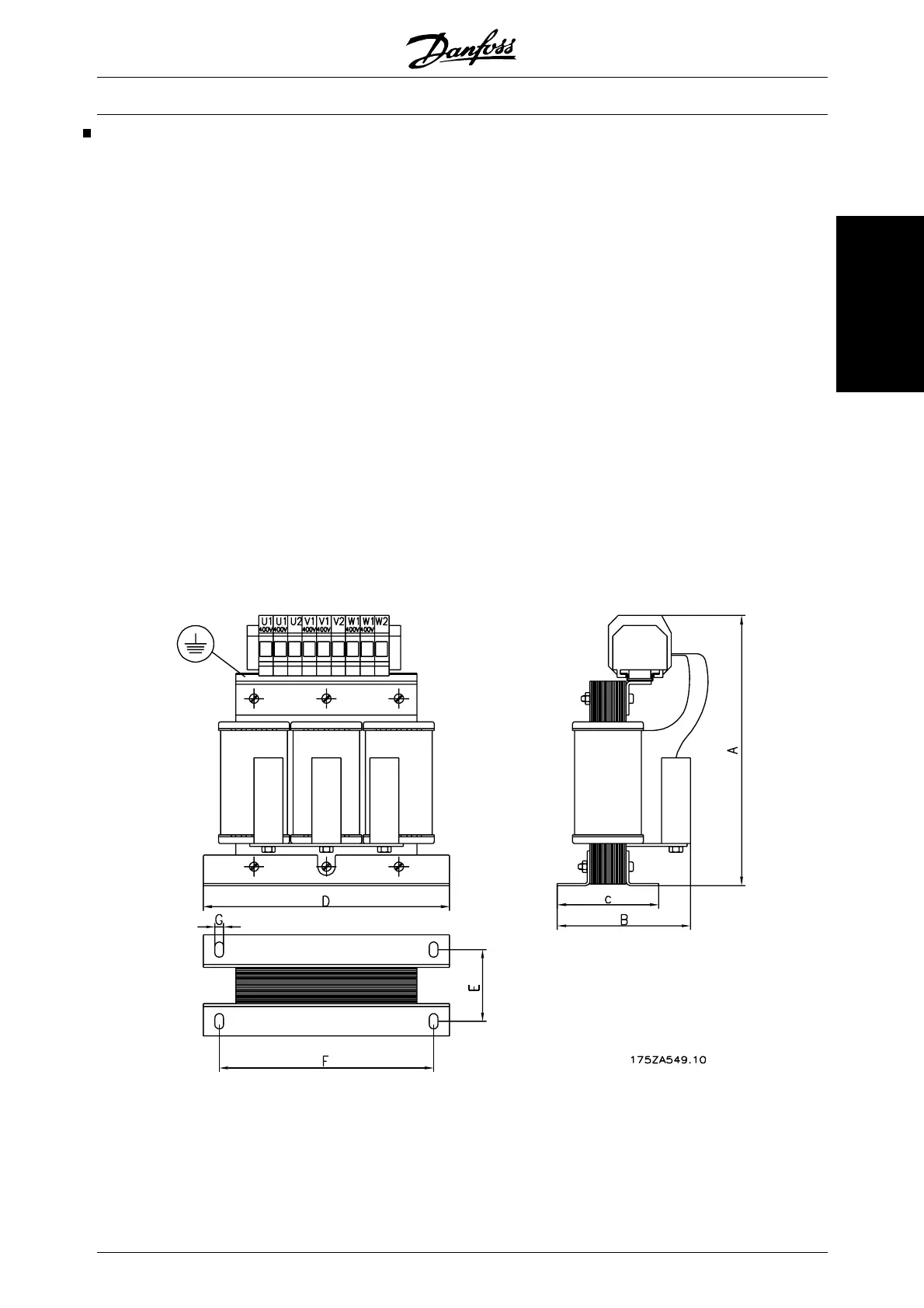

The table and the drawing give the measurements of
IP 00 LC filters for Compact units.
IP 00 LC filters must be integrated and protected
against dust, water and corrosive gases.
Max. motor cable length:
- 150 m screened/armoured cable
- 300 m unscreened/unarmoured cable
If EMC standards are to be complied with:
- EN 55011-1B: Max. 50 screened/armoured cable
Bookstyle: Max. 20 m screened/armoured cable
- EN 55011-1A: Max. 150 m screened/armoured
cable
LC filter IP 00
LC type A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] Weight [kg]
175Z4600 220 135 92 190 68 170 8 10
175Z4601 220 145 102 190 78 170 8 13
175Z4602 250 165 117 210 92 180 8 17
175Z4603 295 200 151 240 126 190 11 29
175Z4604 355 205 152 300 121 240 11 38
175Z4605 360 215 165 300 134 240 11 49
175Z4606 280 170 121 240 96 190 11 18
175Z4607 280 175 125 240 100 190 11 20
175Z4608 280 180 131 240 106 190 11 23
175Z4609 295 200 151 240 126 190 11 29
175Z4610 355 205 152 300 121 240 11 38
175Z4611 355 235 177 300 146 240 11 50
175Z4612 405 230 163 360 126 310 11 65
VLT
®
6000 HVAC Series
MG.61.B5.02 - VLT
®
is a registered Danfoss trademark 39
