Danfoss VLT 6000 HVAC Series User Manual

LC filter VLT 6042-6062 200-240 V / VLT 6072-6552
380-460 V

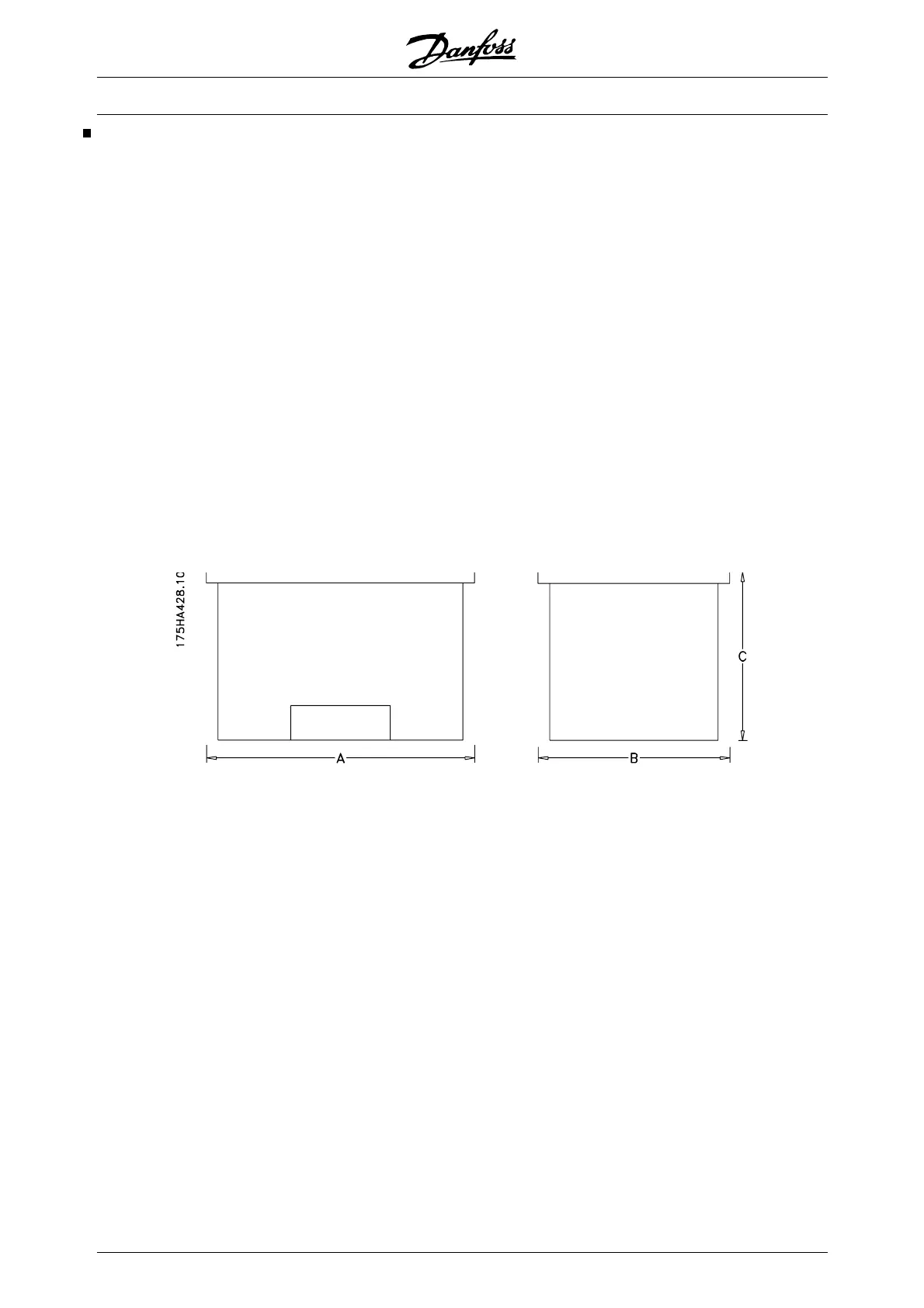

The table and the drawing give the measurements of
IP 20 LC filters. IP 20 LC filters must be integrated and
protected against dust, water and aggressive gases.
Max. motor cable length:
- 150 m screened/armoured cable
- 300 m unscreened/unarmoured cable
If EMC standards are to be complied with:
- EN 55011-1B: Max. 50 m screened/armoured cable
Bookstyle: Max. 20 m screened/armoured cable
- EN 55011-1A: Max. 150 m screened/armoured ca-
ble
LC-filter IP 20
LC type A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] Weight [kg]
175Z4701 740 550 600 70
175Z4702 740 550 600 70
175Z4703 740 550 600 110
175Z4704 740 550 600 120
175Z4705 830 630 650 220
175Z4706 830 630 650 250
175Z4707 830 630 650 250
175Z3139 1350 800 1000 350
175Z3140 1350 800 1000 400
175Z3141 1350 800 1000 400
175Z3142 1350 800 1000 470
VLT
®
6000 HVAC Series
40 MG.61.B5.02 - VLT
®
is a registered Danfoss trademark
