8.12 E4h Exterior and Terminal Dimensions
8.12.1 E4h Exterior Dimensions
130BF664.10
13 (0.5)
10 (0.4)
10 (0.4)
15 (0.6)
A
A
1578
(62.1)
1537
(60.5)
1348
(53.1)
30
(1.2)
604
(23.8)
13 (0.5)
3X

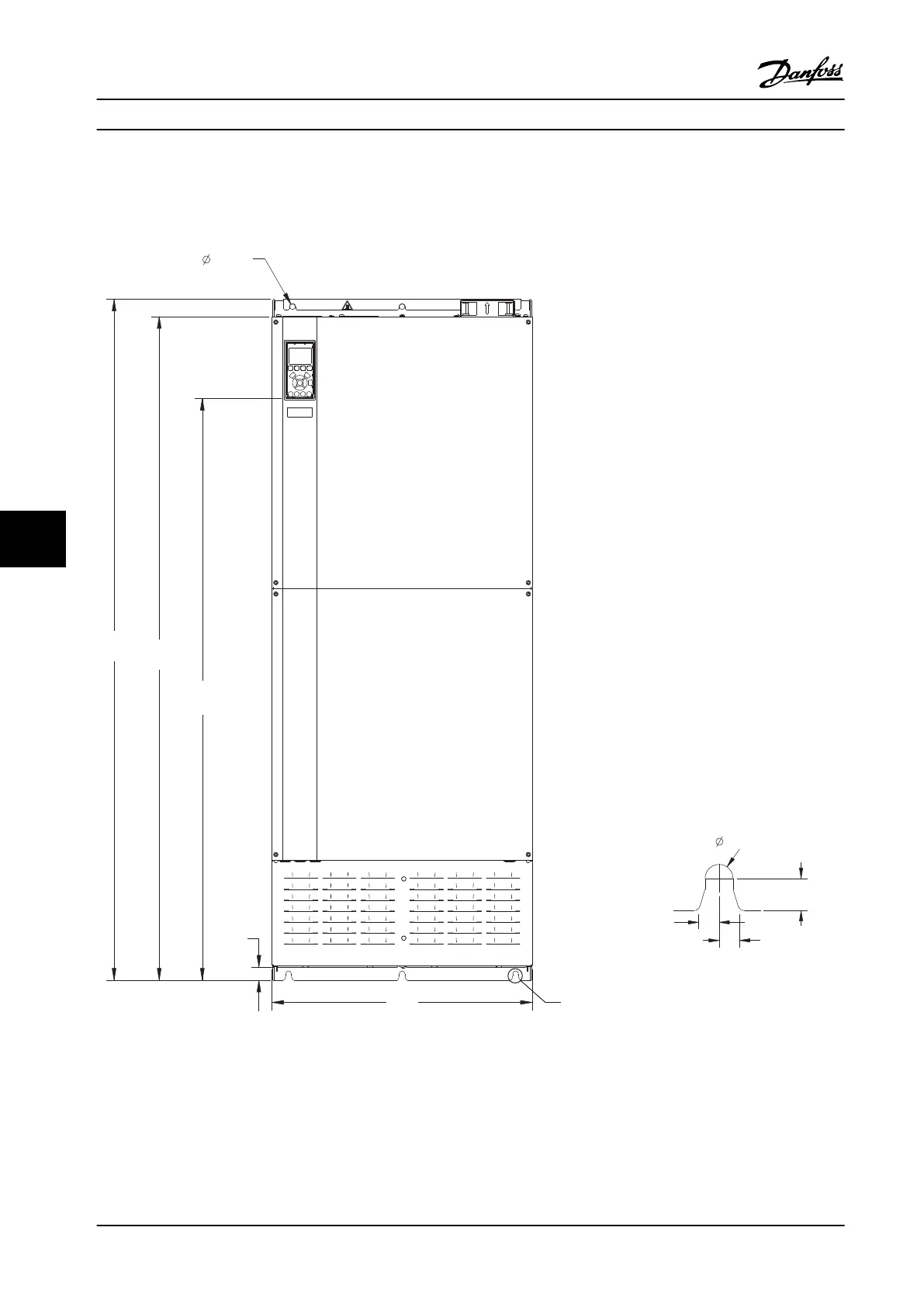

Figure 8.89 Front View of E4h
