8.10 E2h Exterior and Terminal Dimensions
8.10.1 E2h Exterior Dimensions
2043
(80.4)
2002
(78.8)
1553
(61.1)
1393
(54.9)
912
(35.9)
394
(15.5)
698
(27.5)
97
(3.8)
13 (0.5)
3X
130BF654.10

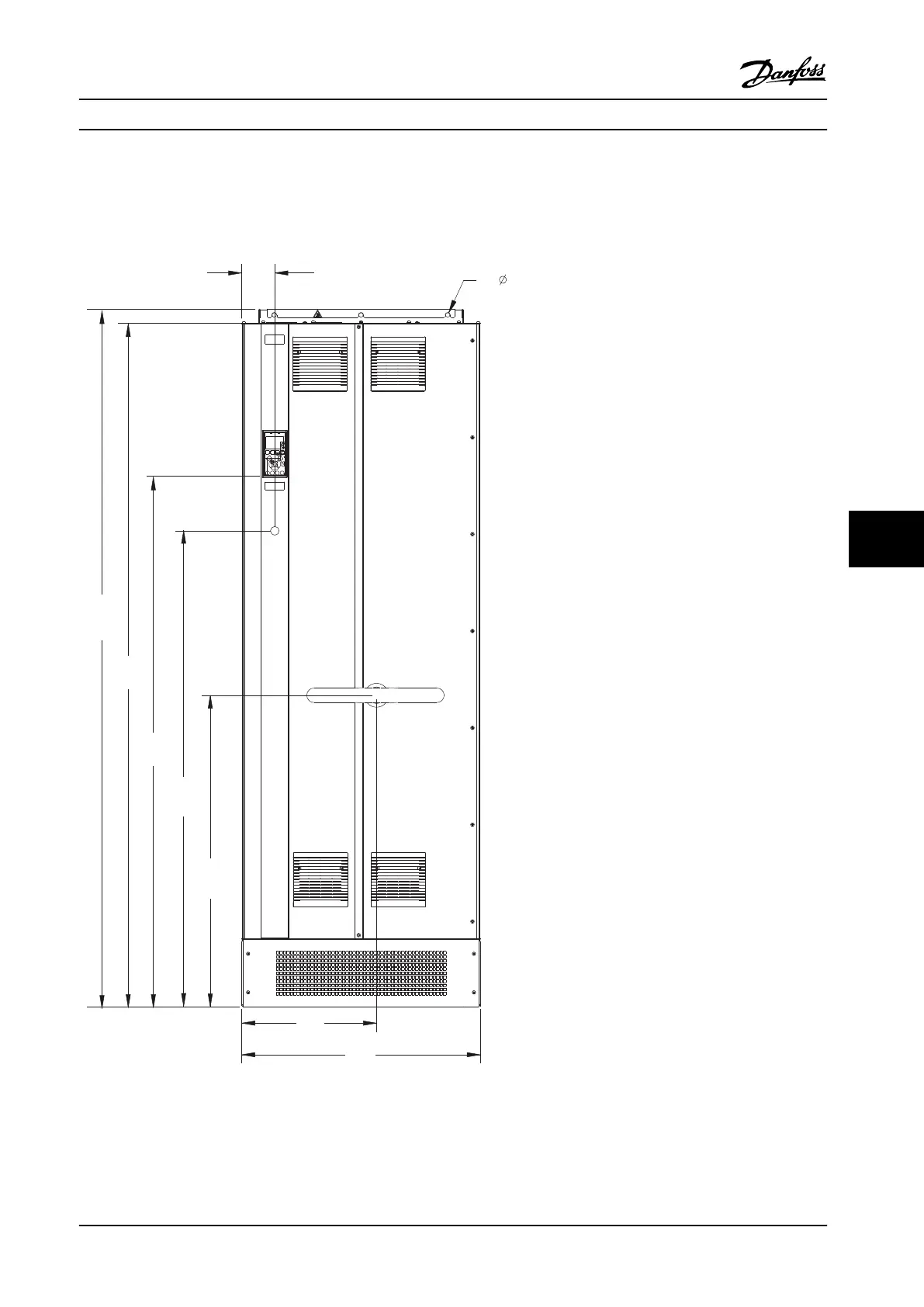

Figure 8.76 Front View of E2h
