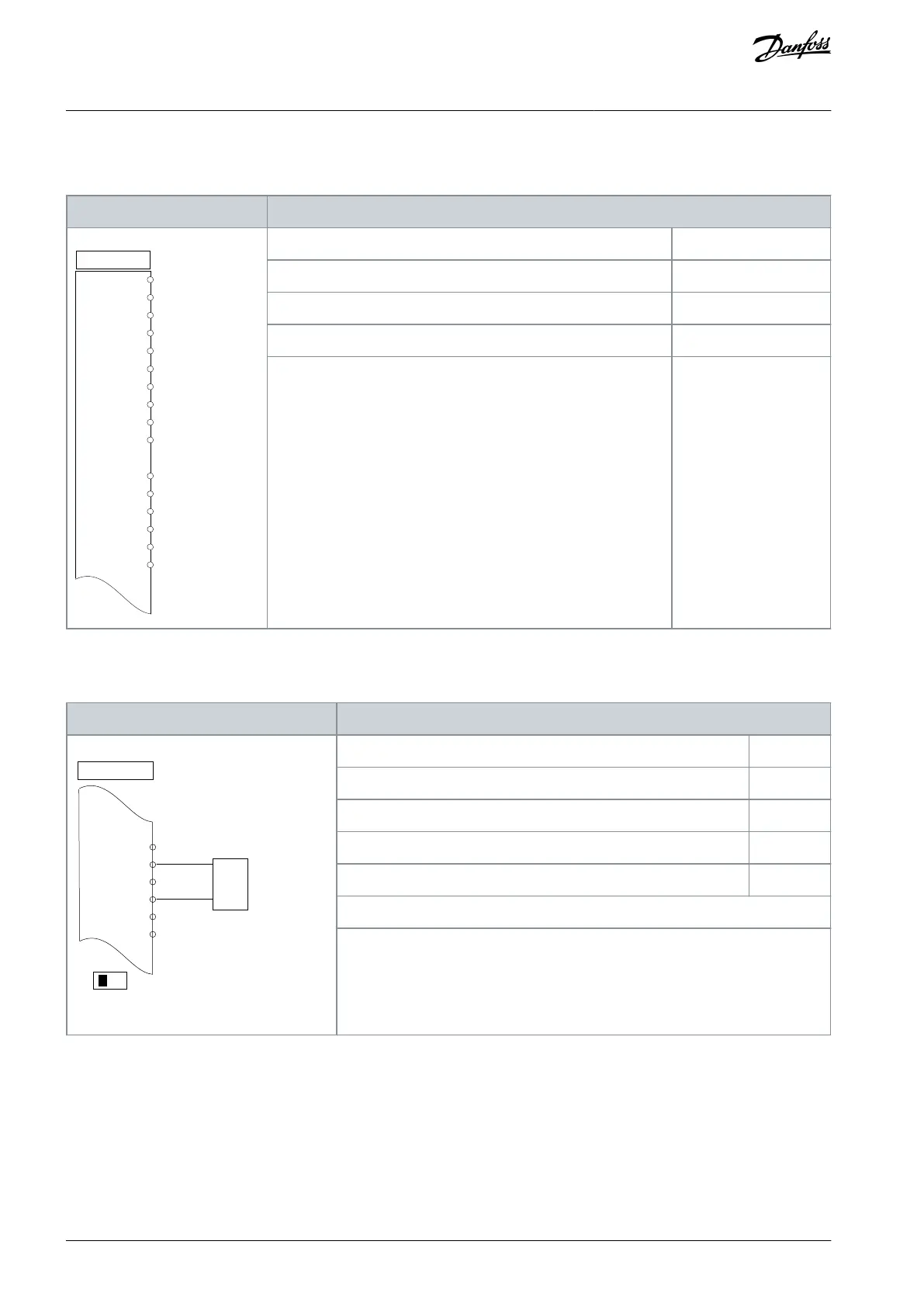

6.1.2 Wiring Configuration for Automatic Motor Adaptation without T27
Table 20: AMA without T27 Connected
Parameters
Drive
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
e30bb930.11
Function
Setting
Parameter 1-29 Automatic Motor Adaptation (AMA)
[1] Enable complete AMA
Parameter 5-12 Terminal 27 Digital Input
[0] No operation
*=Default value
Notes/comments:
Parameter group 1-2* Motor Data must be set according to motor.
6.1.3 Wiring Configuration: Speed
Table 21: Analog Speed Reference (Voltage)
Parameters
+10
V
A IN
A IN
COM
A OUT
COM
50
53
54
55
42
39
A53
U - I
0–10 V
+
-
e30bb926.11
Drive
Function
Setting
Parameter 6-10 Terminal 53 Low Voltage
0.07 V*
Parameter 6-11 Terminal 53 High Voltage
10 V*
Parameter 6-14 Terminal 53 Low Ref./Feedb. value
0 Hz
Parameter 6-15 Terminal 53 High Ref./Feedb. Value
50 Hz
*=Default value
Notes/comments:
D IN 37 is an option.
AQ267037536117en-000101 / 130R008348 | Danfoss A/S © 2023.09
Basic I/O Configuration
VLT HVAC Drive FC 102
Operating Guide

Danfoss vlt FC 102 Specifications

General

Category	DC Drives
Model	Danfoss VLT FC 102
Output voltage range	0 to rated motor voltage
Power range	0.37 kW to 200 kW
Communication interfaces	RS-485
Protection features	Overvoltage, undervoltage, overcurrent, short circuit, earth fault, overtemperature, motor thermal protection
Cooling method	Air-cooled
Enclosure rating	IP20, IP21, IP55 (depending on model)
Approvals	CE, UL, cUL
