3 Installation
3.1 Mechanical Installation
1 MCD5-0021B to MCD5-0215B: Allow 100 mm (3.94 in) between the soft starters.
MCD5-0245B to MCD5-0961B: Allow 200 mm (7.88 in) between the soft starters.
MCD5-0245C: Allow 100 mm (3.94 in) between the soft starters.
MCD5-0360C to MCD5-1600C: Allow 200 mm (7.88 in) between the soft starters.
2 MCD5-0021B to MCD5-0215B: Allow 50 mm (1.97 in) between the soft starter and solid surfaces.
MCD5-0245B to MCD5-0961B: Allow 200 mm (7.88 in) between soft starters.
MCD5-0245C: Allow 100 mm (3.94 in) between the soft starter and solid surfaces.
MCD5-0360C to MCD5-1600C: Allow 200 mm (7.88 in) between the soft starter and solid surfaces.
3 It is possible to mount the soft starter on its side. Derate the soft starter rated current by 15%.
4 If mounted without communication modules, soft starters may be mounted side by side with no clearance.

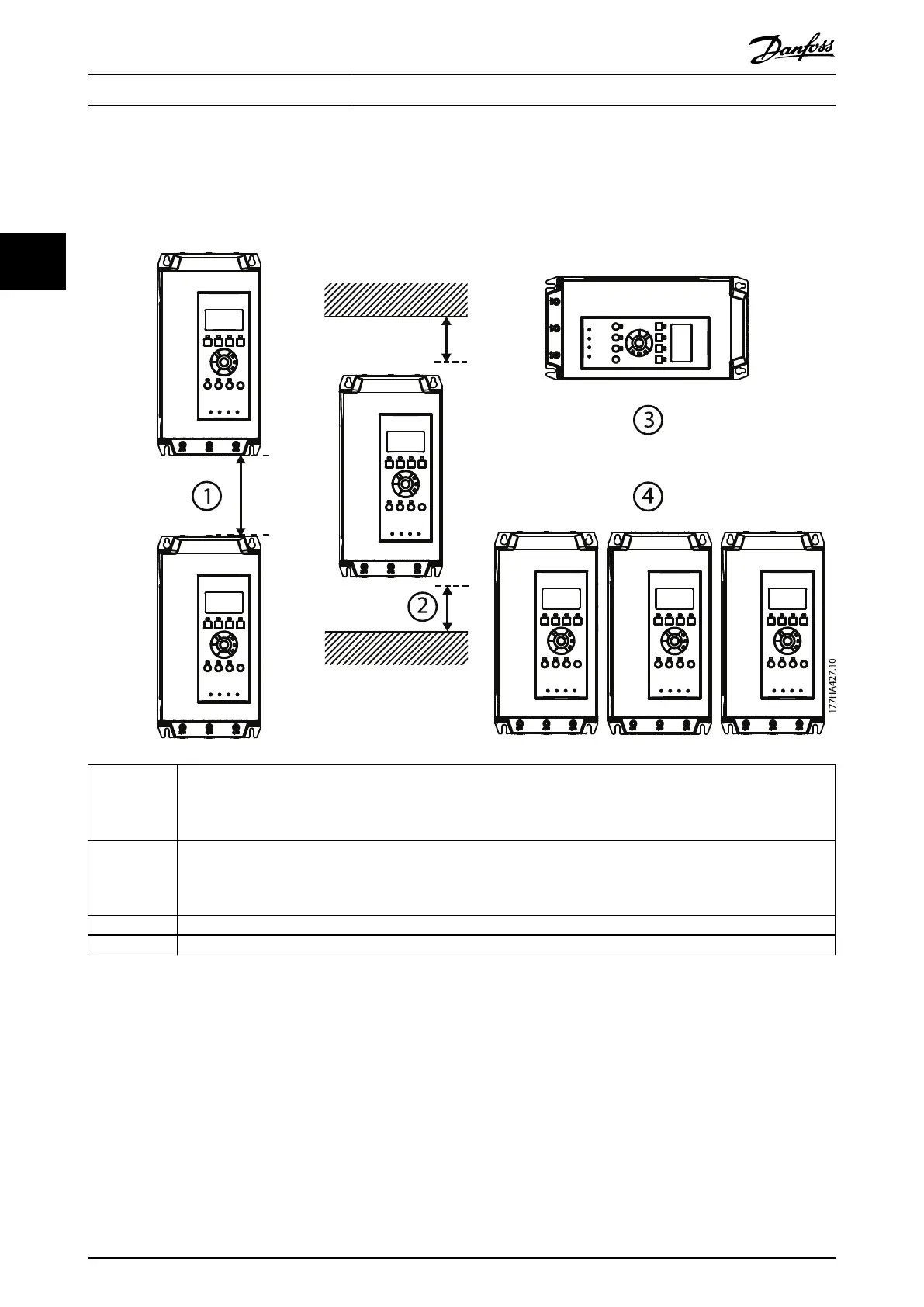

Illustration 3.1 Clearances and Derating Values at Installation
