11.2.4 Finger Guard Kit
Finger guards may be specied for personnel safety. Finger
guards t over the soft starter terminals to prevent
accidental contact with live terminals. Finger guards
provide IP20 protection when correctly installed.
•
MCD5-0131B to MCD5-0215B: 175G5662.
•
MCD5-0245B to MCD5-0396B: 175G5730.
•
MCD5-0469B to MCD5-0961B: 175G5731.
•
MCD5-245C: 175G5663.
•
MCD5-0360C to MCD5-0927C: 175G5664.
•
MCD5-1200C to MCD5-1600C: 175G5665.
NOTICE
To be UL-compliant, the models MCD5-0131B to
MCD5-0396B require nger guards.
11.2.5 Surge Protection Kit (Lightning
Protection)
As standard, VLT
®
Soft Starter MCD 500 rated impulse
withstand voltage is limited to 4 kV. The surge protection
kits protect the system and make the soft starter immune
to high-voltage impulses.
6 kV
•
175G0100 SPD Surge protection kit for G1.
•
175G0101 SPD Surge protection kit, G2-G5.
12 kV
•
175G0102 SPD Surge protection kit for G1.
•
175G0103 SPD Surge protection kit, G1-G5.
M
3
~
1/L1
2/T1
1/L1
1/L1
2/T1
2/T1
E
13
14
K1
177RA001.11

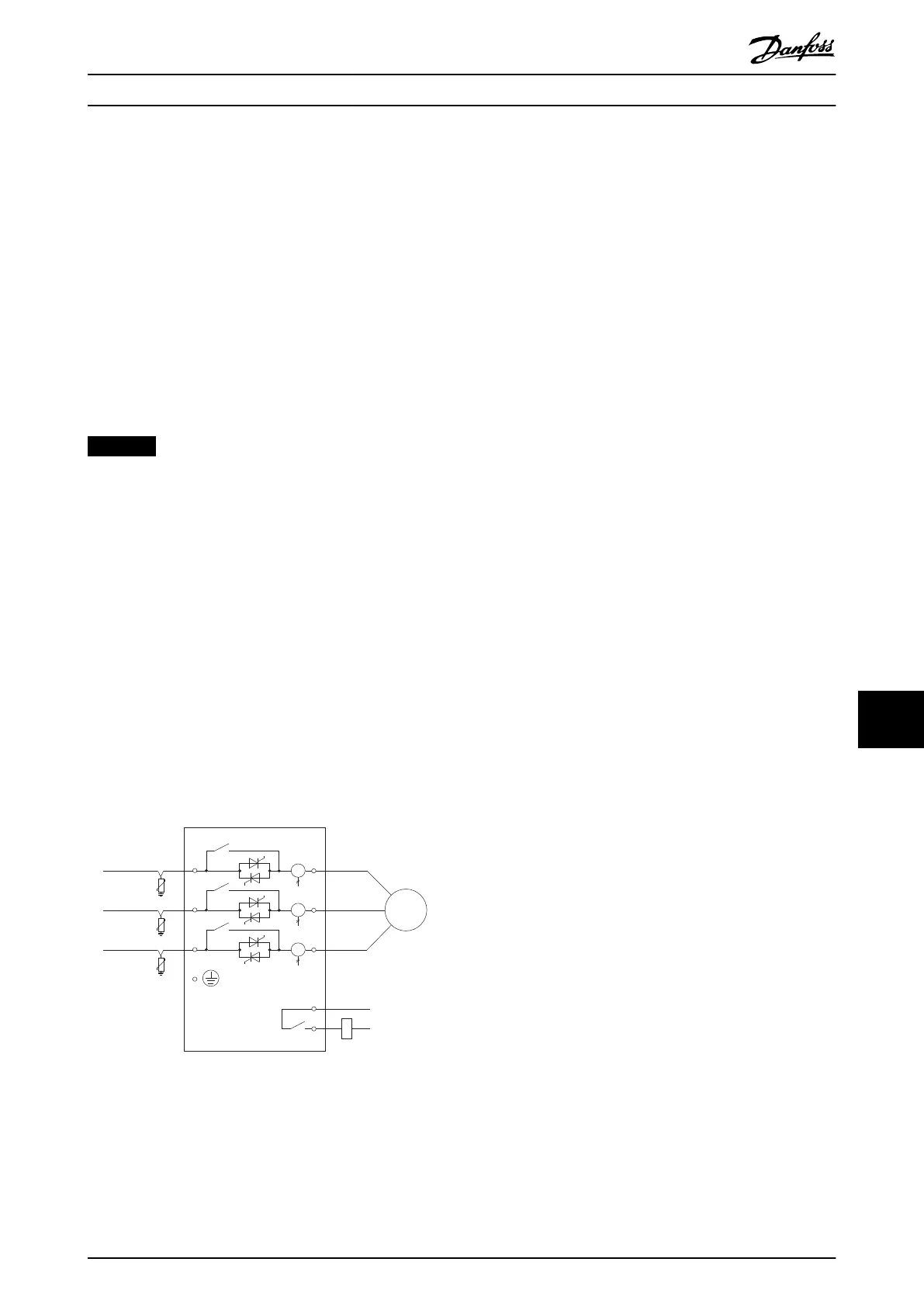

Illustration 11.1 System with Surge Protection Kit
Specications Operating Guide
MG17K602 Danfoss A/S © 05/2016 All rights reserved. 85
11 11
