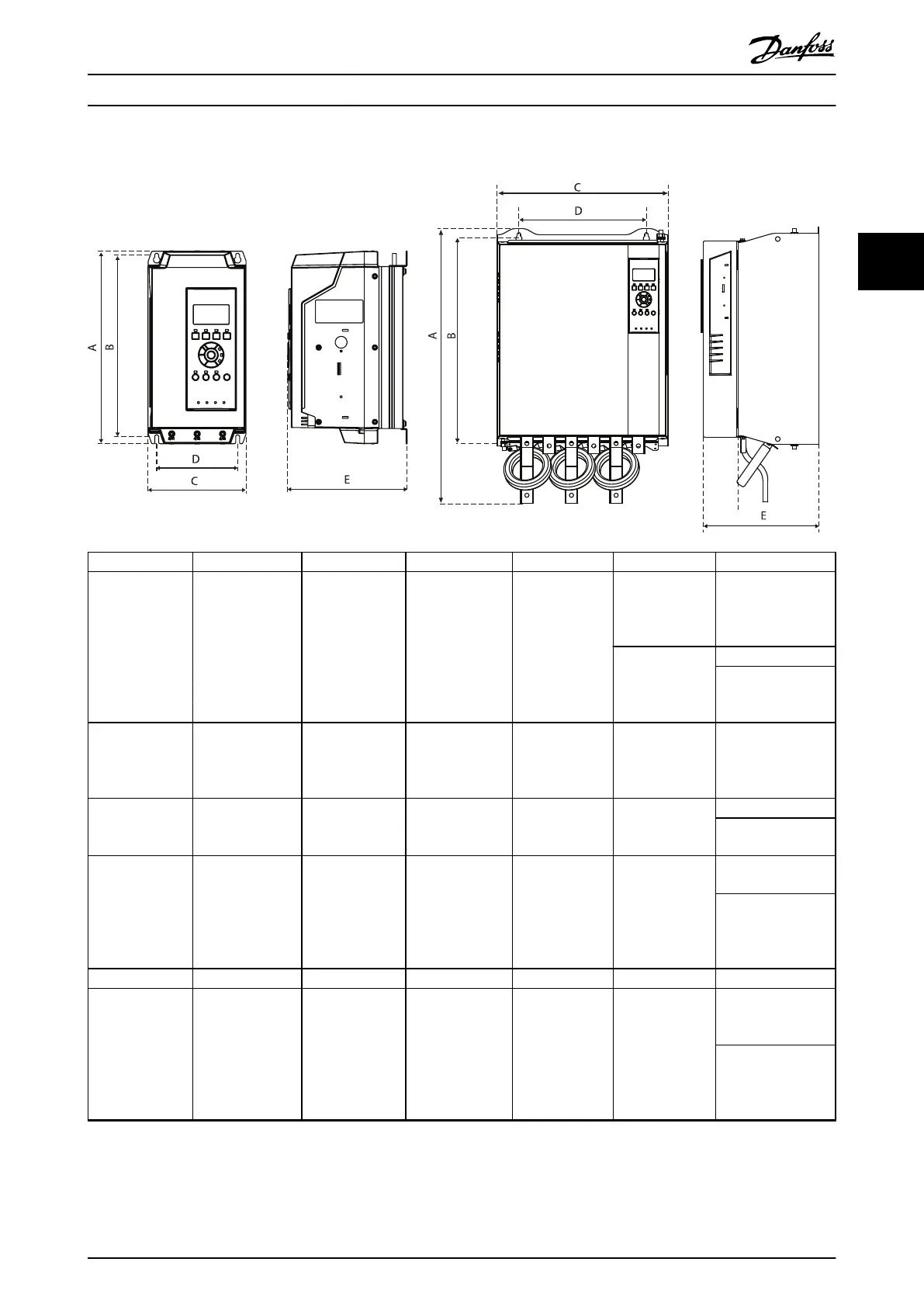

3.2 Dimensions and Weight
177HA514.10
Model A [mm] (in) B [mm] (in) C [mm] (in) D [mm] (in) E [mm] (in) Weight [kg] (lbs)
MCD5-0021B
295 (11.6) 278 (10.9) 150 (5.9) 124 (4.9)
183 (7.2) 4.2 (9.3)
MCD5-0037B
MCD5-0043B
MCD5-0053B
MCD5-0068B
213 (8.14)
4.5 (9.9)
MCD5-0084B
4.9 (10.8)
MCD5-0089B
MCD5-0105B
MCD5-0131B
438 (17.2) 380 (15.0) 275 (10.8) 248 (9.8) 250 (9.8) 14.9 (32.8)
MCD5-0141B
MCD5-0195B
MCD5-0215B
MCD5-0245B
440 (17.3) 392 (15.4) 424 (16.7) 376 (14.8) 296 (11.7)
26 (57.2)
MCD5-0331B
30.2 (66.6)
MCD5-0396B
MCD5-0469B
640 (25.2) 600 (23.6) 433 (17.0) 320 (12.6) 295 (11.6)
49.5 (109.1)
MCD5-0525B
MCD5-0632B
60.0 (132.3)
MCD5-0744B
MCD5-0826B
MCD5-0961B
MCD5-0245C 460 (18.1) 400 (15.0) 390 (15.4) 320 (12.6) 279 (11.0) 23.9 (52.7)
MCD5-0360C
689 (27.1) 522 (20.5) 430 (16.9) 320 (12.6) 300 (11.8)
35 (77.2)
MCD5-0380C
MCD5-0428C
MCD5-0595C
45 (99.2)
MCD5-0619C
MCD5-0790C
MCD5-0927C
