5.13 Soft Braking
For high inertia loads, the VLT
®
Soft Starter MCD 500 can be congured for soft braking.
In this application, the MCD 500 is employed with forward run and braking contactors. When the soft starter receives a start
signal (pushbutton S1), it closes the forward run contactor (K1) and controls the motor according to the programmed
primary motor settings.
When the soft starter receives a stop signal (pushbutton S2), it opens the forward run contactor (K1) and closes the braking
contactor (K2) after a delay of approximately 2–3 s (KT1). K12 is also closed to activate the secondary motor settings, which
are user-programmed for the wanted stopping performance characteristics.
When motor speed approaches zero, the external zero-speed sensor (A2) stops the soft starter and opens the braking
contactor (K2).
3
177HA526.12
6
5
6
4
2
3
1
K3T
K2
K10 K11 K12 K13K1
M1
54 55 585756
F1
K2 K1
K12
S2 K13
A2
K1T
K1T K2T K3T
K1 K2
K1 K2S1 K10 K10
Y1
Y2
Y1
Y2
K10
K2T
4/T2
6/T3
E
1/L1
3/L2
5/L3
2/T1
33
34
A4 A5 A6
05
06
K12
K11 S3
53
1 Control voltage (model dependent) K10 Run relay
2 Remote control inputs K11 Start relay
3 Motor thermistor input (PTC only) K12 Brake relay
4 Relay outputs K13 Zero-speed detector relay
5 3-phase supply K1 Line contactor (run)
6 Motor terminals K2 Line contactor (brake)
A2 Zero-speed sensor K1T Run delay timer
S1 Start contact K2T Brake delay timer
S2 Stop contact K3T Zero-speed detector delay timer
S3 Reset contact

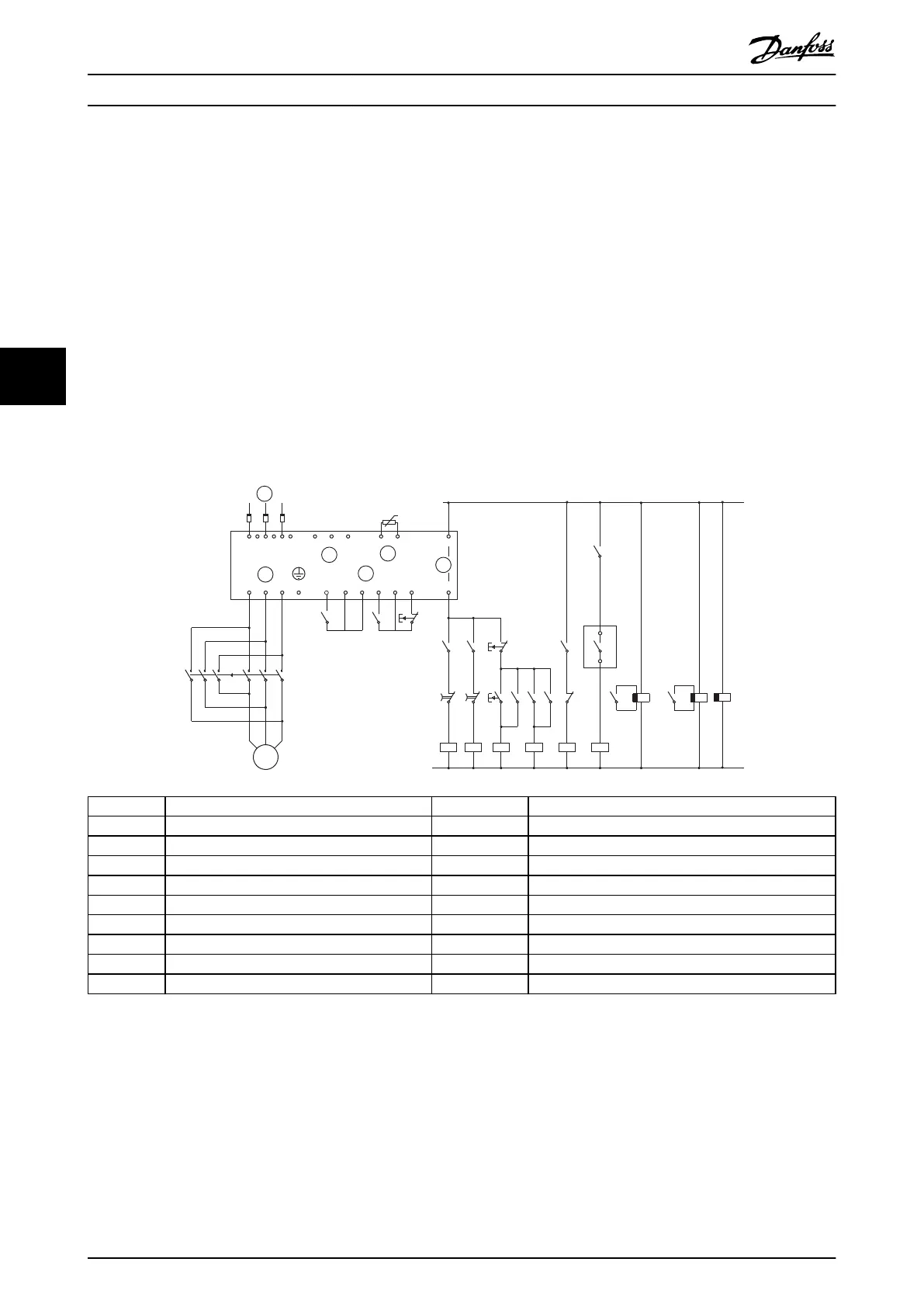

Illustration 5.15 Soft Braking Conguration
Parameter settings:
•
Parameter 3-3 Input A Function
- Select Motor Set Select - assigns input A for motor set selection.
- Set starting performance characteristics using the primary motor set (parameter group 1 Primary Motor
Settings).
