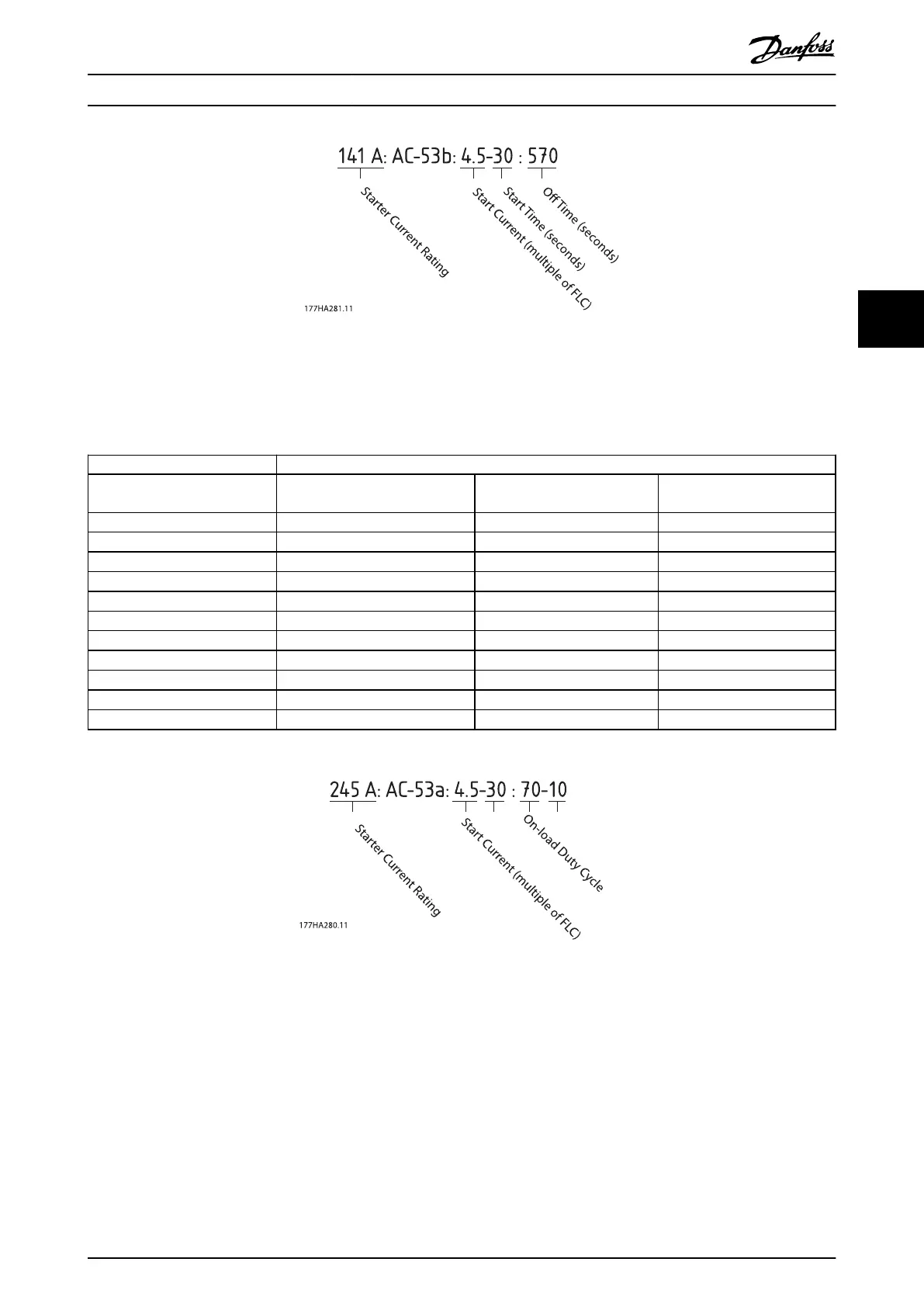

Illustration 4.14 AC-53 Rating for Bypassed Operation
All ratings are calculated at an altitude of 1000 m (3281 ft) and ambient temperature of 40 °C (104 °F).
4.4.2 In-line Connection (Non-bypassed/Continuous)
Type code Ampere ratings [A]
AC-53a
3-30:50-6
AC-53a
4-20:50-6
AC-53a
4.5-30:50-6
MCD5-0245C 245 195 171
MCD5-0360C 360 303 259
MCD5-0380C 380 348 292
MCD5-0428C 428 355 300
MCD5-0595C 595 515 419
MCD5-0619C 619 532 437
MCD5-0790C 790 694 567
MCD5-0927C 927 800 644
MCD5-1200C 1200 1135 983
MCD5-1410C 1410 1187 1023
MCD5-1600C 1600 1433 1227
Table 4.3 Non-bypassed Models
Start Time (seconds)
Starts Per Hour
Illustration 4.15 AC-53 Rating for Continuous Operation
All ratings are calculated at an altitude of 1000 m (3281 ft) and ambient temperature of 40 °C (104 °F).
Contact a local supplier for ratings under operating conditions not covered by these ratings charts.
Electrical Installation Operating Guide
MG17K602 Danfoss A/S © 05/2016 All rights reserved. 21
