■ Running a Job on PSV7000 ◘ List of Steps to Start a Job
PSV7000 Operator’s Manual —39—
back
Note:
• Rubber cups are consumable parts, which wear out from use.
Replace a cup if it has cracks or is unable to hold vacuum.
• For devices that require the 1.3mm probe tip, this tip does
NOT use a rubber cup.
• For all other outer diameters, the rubber cup has a mounting
square/hole that slides onto the cup holder.
TIP
O.D.
(mm)
Part
Number

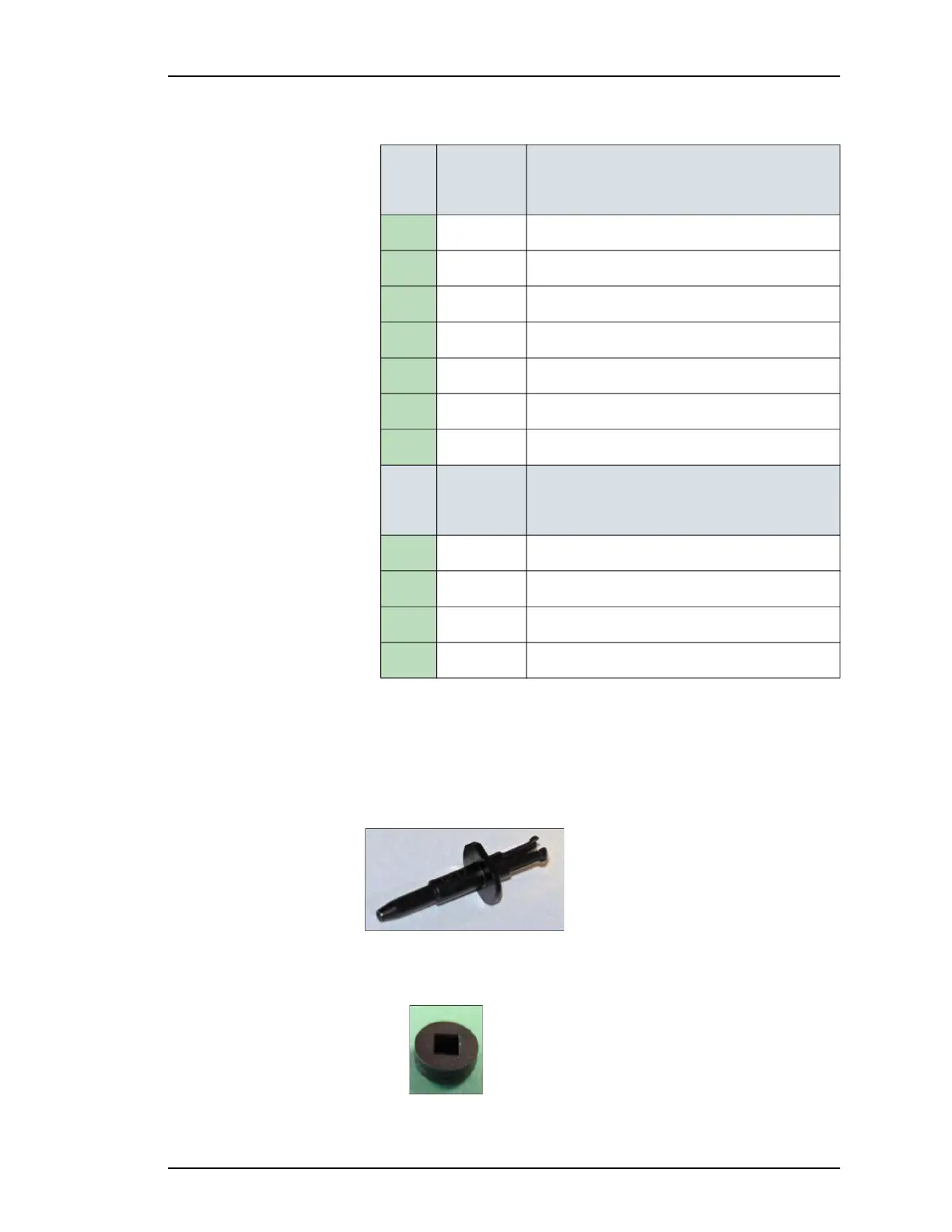

RUBBER CUPS FOR 1.9mm SQUARE HOLDER
1.75 2880014001 Vacuum,Cup,1.75mm OD,For 1.9mm Tip,PSV
2.25 2880013001 Vacuum,Cup,2.25mm OD, For 1.9mm Tip,PSV
3.05 2880040130 Vacuum,Cup,3.05mm OD, For 1.9mm Tip,PSV
3.56 2880040135 Vacuum,Cup,3.56mm OD, For 1.9mm Tip,PSV
4.06 2880040140 Vacuum,Cup,4.06mm OD, For 1.9mm Tip,PSV
4.57 2880019001 Vacuum,Cup,4.57mm OD, For 1.9mm Tip,PSV
5.08 2880040151 Vacuum,Cup,5.08mm OD, For 1.9mm Tip,PSV
TIP
O.D.
(mm)
Part
Number
RUBBER CUPS FOR 2.7mm SQUARE HOLDER
6.1 2880040206 Vacuum,Cup,6.10mm OD, For 2.7mm Tip,PSV
8.1 2880040208 Vacuum,Cup,8.13mm OD, For 2.7mm Tip,PSV
10.2 2880040210 Vacuum,Cup,10.16mm OD, For 2.7mm Tip,PSV
12 2880040212 Vacuum,Cup,12.00mm OD, For 2.7mm Tip,PSV
1.3 mm Probe Tip, No Rubber Cup
Part Number: 6460167001
Rubber Cup
Part Number: 2880040206
